45RFE/545RFE Automatic Transmission






SPECIFICATIONS

GENERAL






GEAR RATIOS

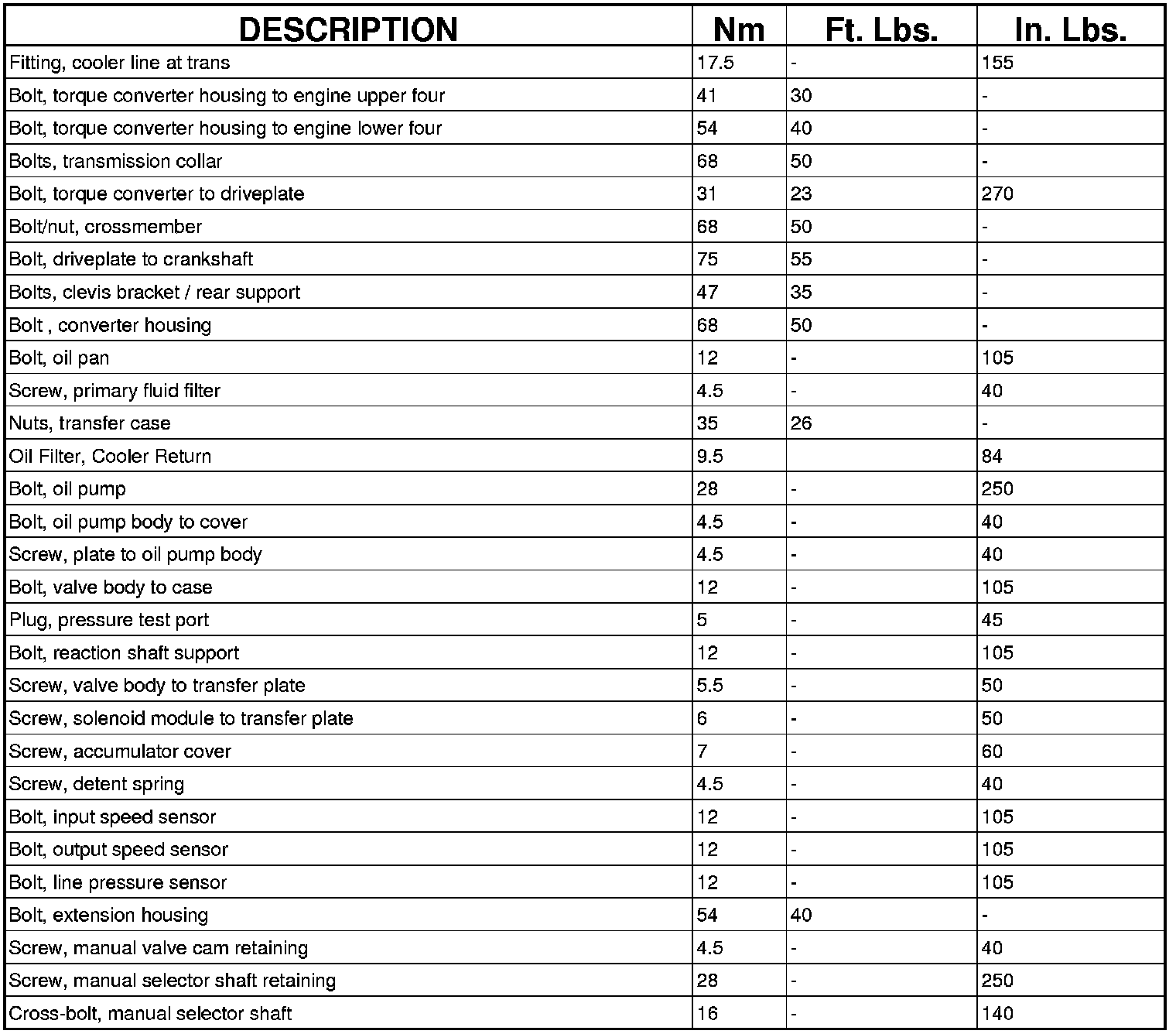

TORQUE SPECIFICATIONS






FLEX PLATE





Flexplate bolts 60 Nm (45 ft. lbs.)
