Junction Block - Installation
INSTALLATION

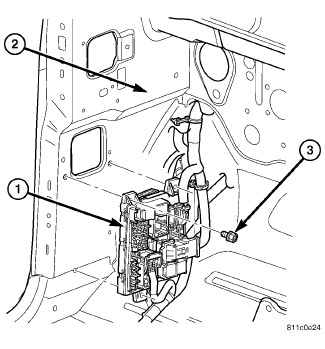

1. Connect wire harness connectors to the Junction Block (JB) (1).
2. Position JB and install mounting fasteners (3).
3. Install left cowl trim cover).
4. Connect the battery negative cable.
INSTALLATION
1. Connect wire harness connectors to the Junction Block (JB) (1).
2. Position JB and install mounting fasteners (3).
3. Install left cowl trim cover).
4. Connect the battery negative cable.
