Input Speed Sensor - Installation

INSTALLATION

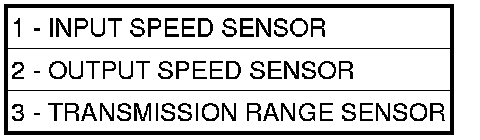

1. Install the input speed sensor (1) into the transmission case.

NOTE: Before installing the speed sensor bolt, it will be necessary to replentish the sealing patch on the bolt using Mopar(R) Lock & Seal Adhesive.

2. Install the bolt to hold the input speed sensor (1) into the transmission case. Tighten the bolt to 9 Nm (80 in.lbs.).
3. Install the wiring connector onto the input speed sensor
4. Verify the transmission fluid level. Add fluid as necessary. .
5. Lower vehicle.
