Park Assist Module - Installation






INSTALLATION

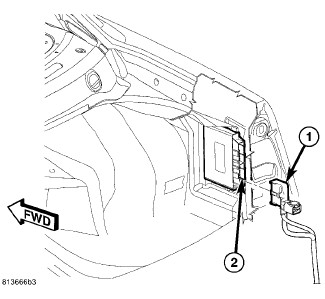

1. Connect the Park Assist Module electrical connector.

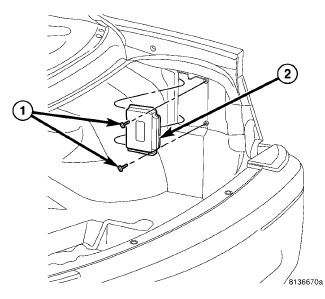

2. Position the Park Assist Module (2) and install the two attaching screws (1). Torque screws to 3.5 Nm (30 in. lbs.).
3. Reposition the trunk carpet.
4. Connect the battery negative cable.
