Input Speed Sensor (RLE) 2 Way

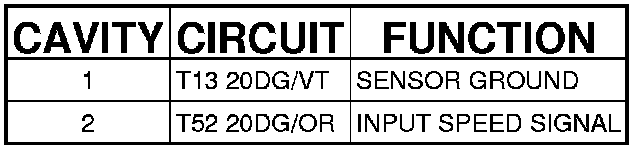

Connector (RLE) - (ENGINE) 2 WAY

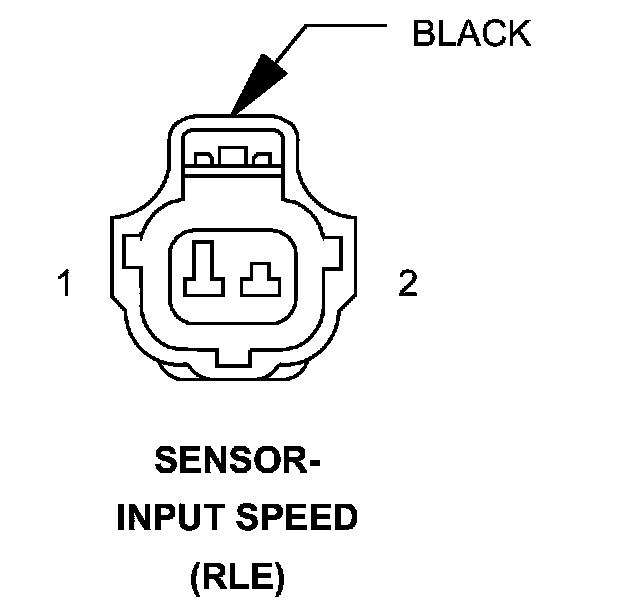

SENSOR-INPUT SPEED (RLE) - (ENGINE) 2 WAY
