Telescoping Wheel Motor

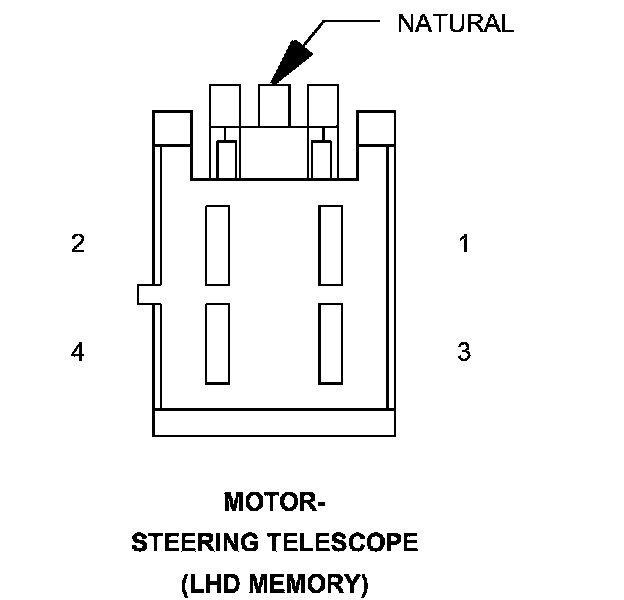

Connector (LHD MEMORY) - (INSTRUMENT PANEL) 4 WAY

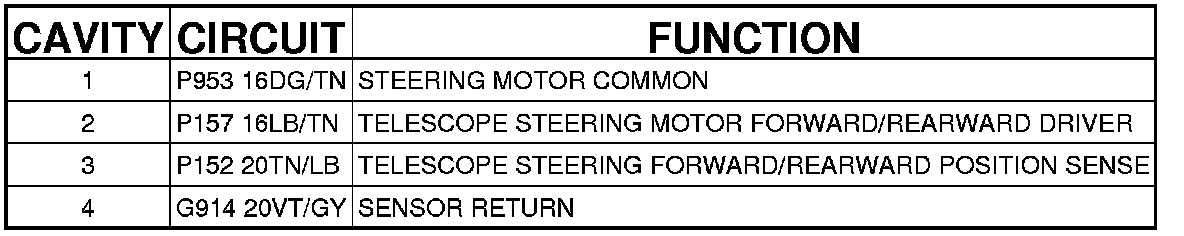

MOTOR-STEERING TELESCOPE (LHD MEMORY) - (INSTRUMENT PANEL) 4 WAY
