Pedal Positioning Switch

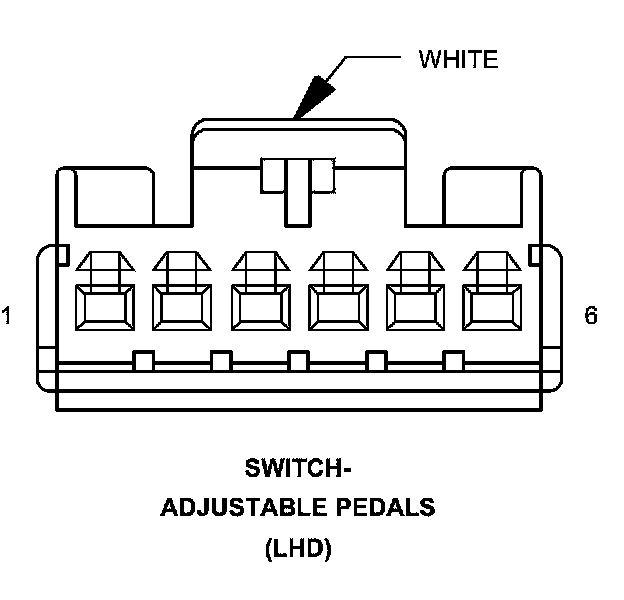

Connector (LHD) - (FRONT SEAT) 6 WAY

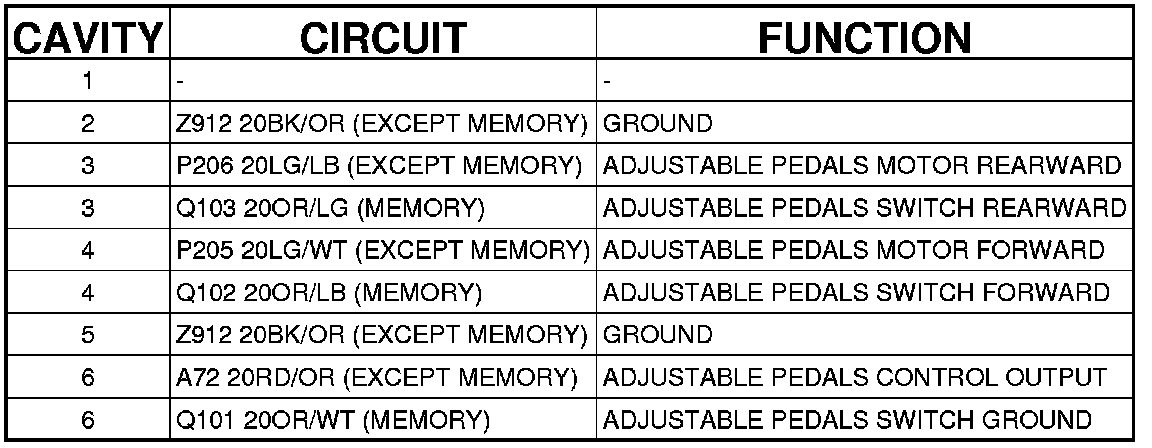

SWITCH-ADJUSTABLE PEDALS (LHD) - (FRONT SEAT) 6 WAY
