Driver Door Module C4 (Memory) (Front Door) 22 Way
Driver Door Module C4 (Memory) (Front Door) 22 Way

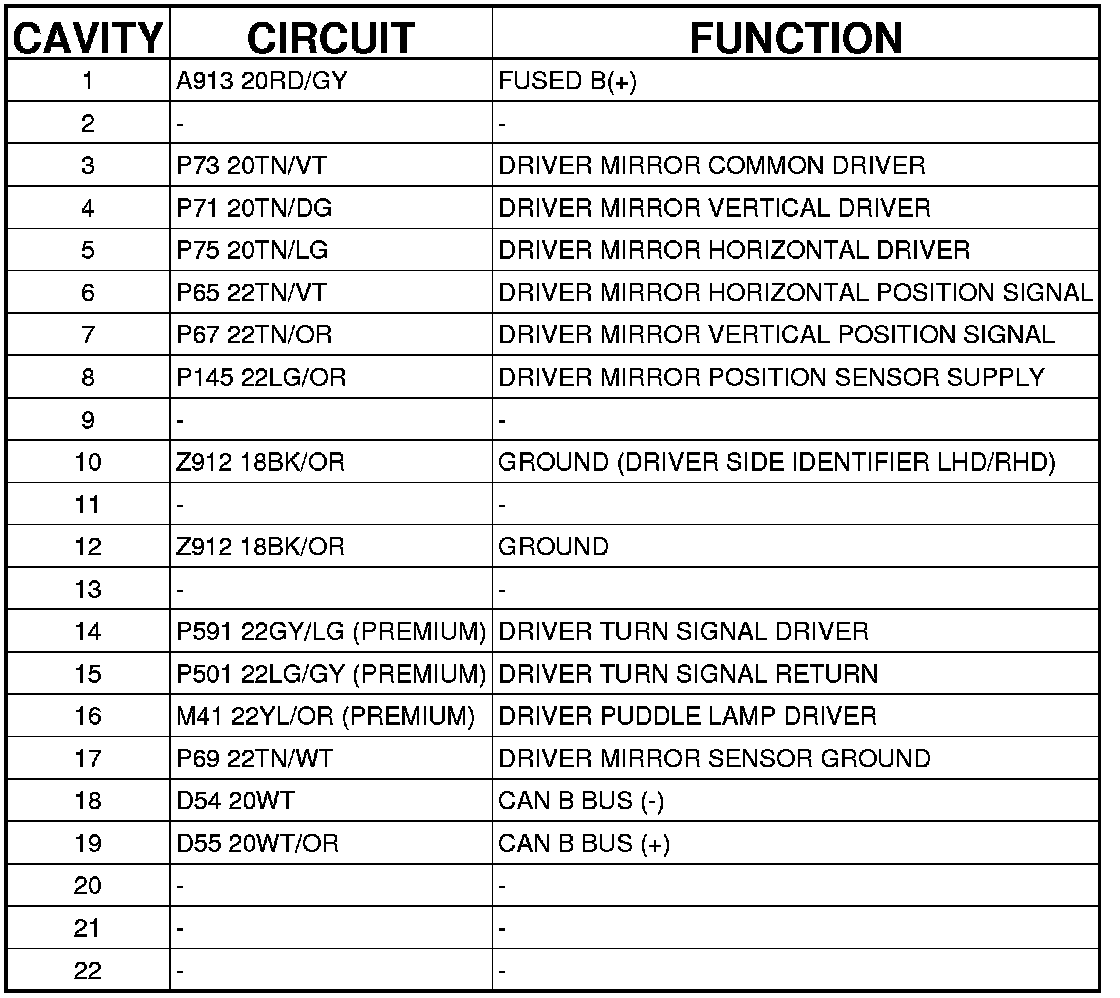

Connector C4 (MEMORY) - (FRONT DOOR) 22 WAY
MODULE-DOOR-DRIVER (MEMORY) - (FRONT DOOR) 22 WAY
