Driver Door Module C2 (Front Door) 16 Way
Driver Door Module C2 (Front Door) 16 Way

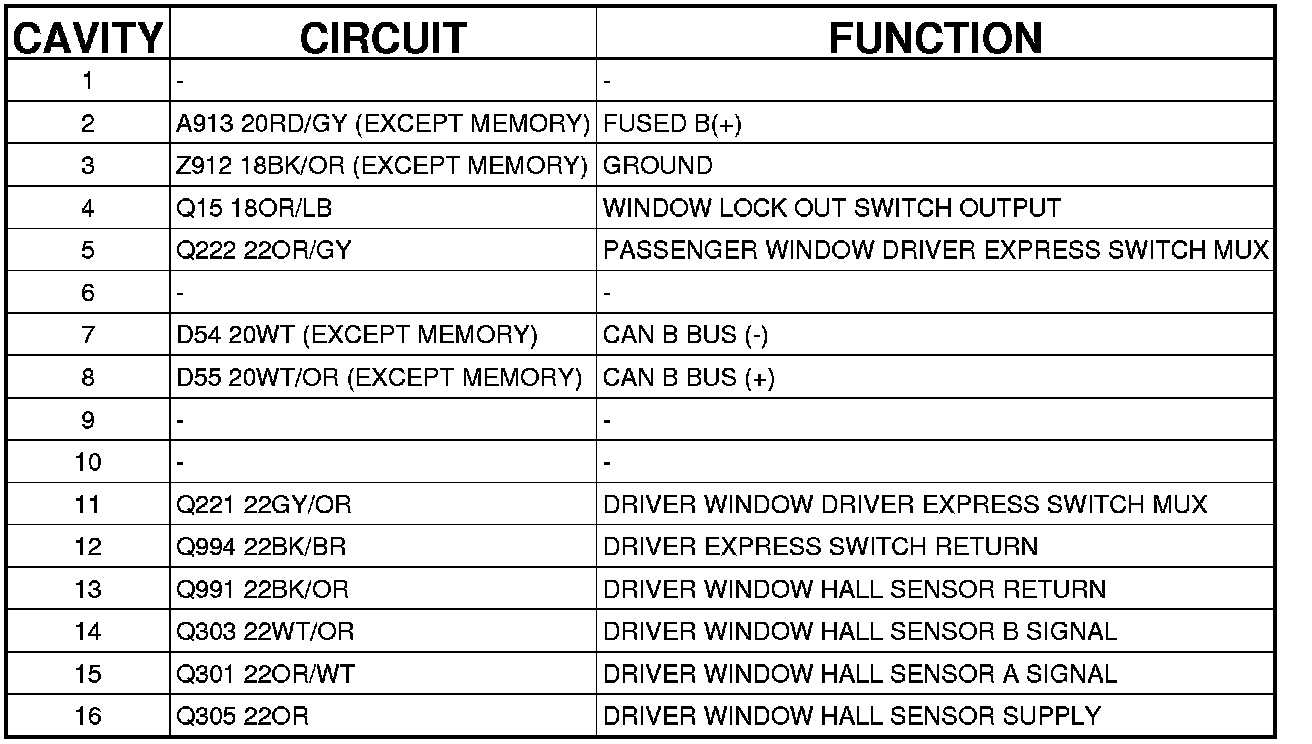

Connector C2 - (FRONT DOOR) 16 WAY
MODULE-DOOR-DRIVER - (FRONT DOOR) 16 WAY
