Blower Motor Resistor

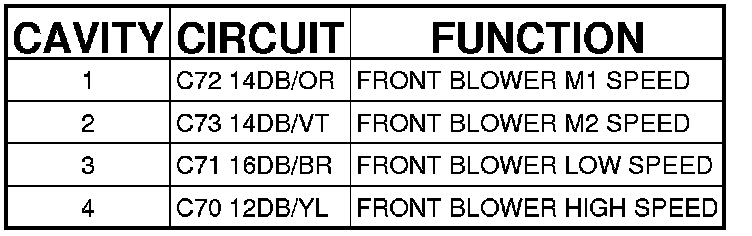

Connector (MTC) - (HVAC) 4 WAY

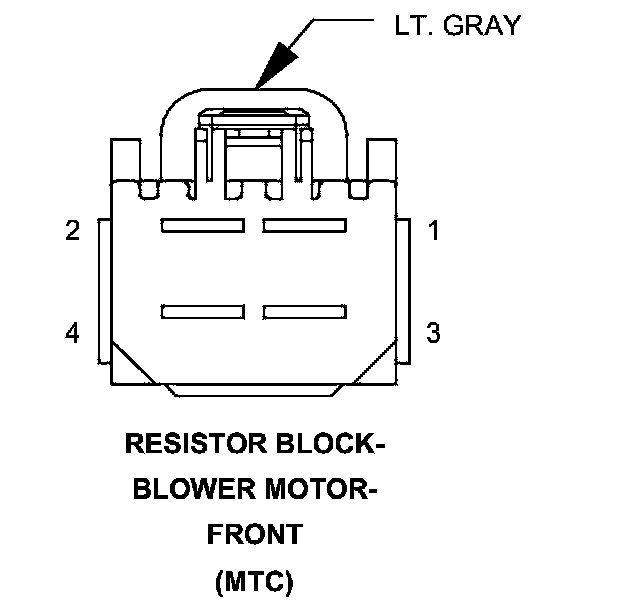

RESISTOR BLOCK-BLOWER MOTOR-FRONT (MTC) - (HVAC) 4 WAY
