Removal

2.7L

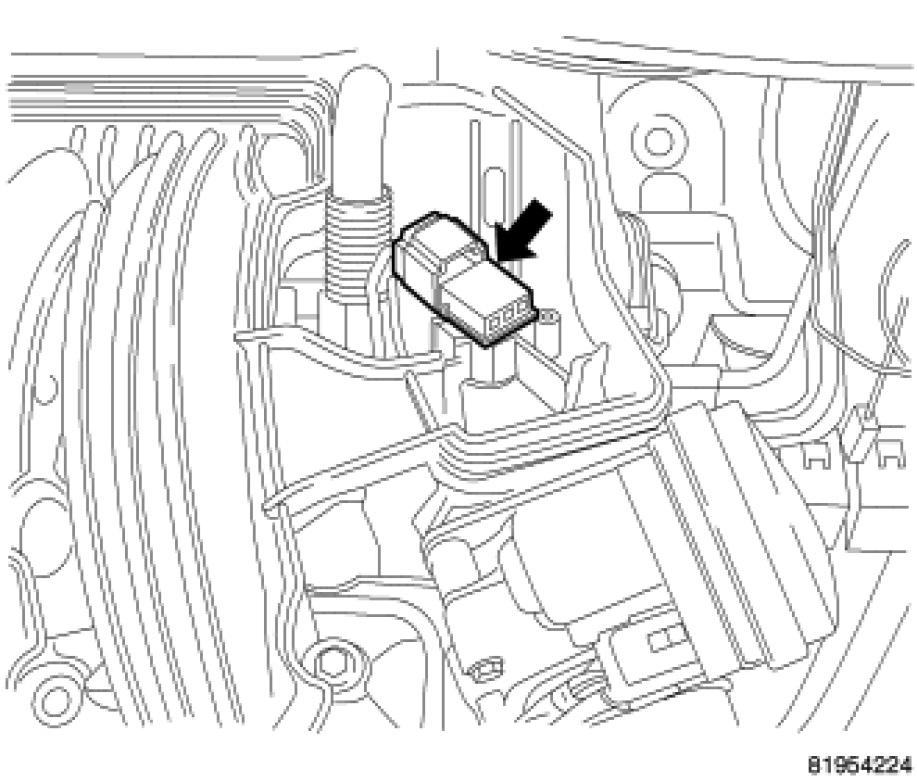

MAP sensor location.

1. Remove the negative battery cable.




2. Disconnect the electrical connector from the MAP sensor.

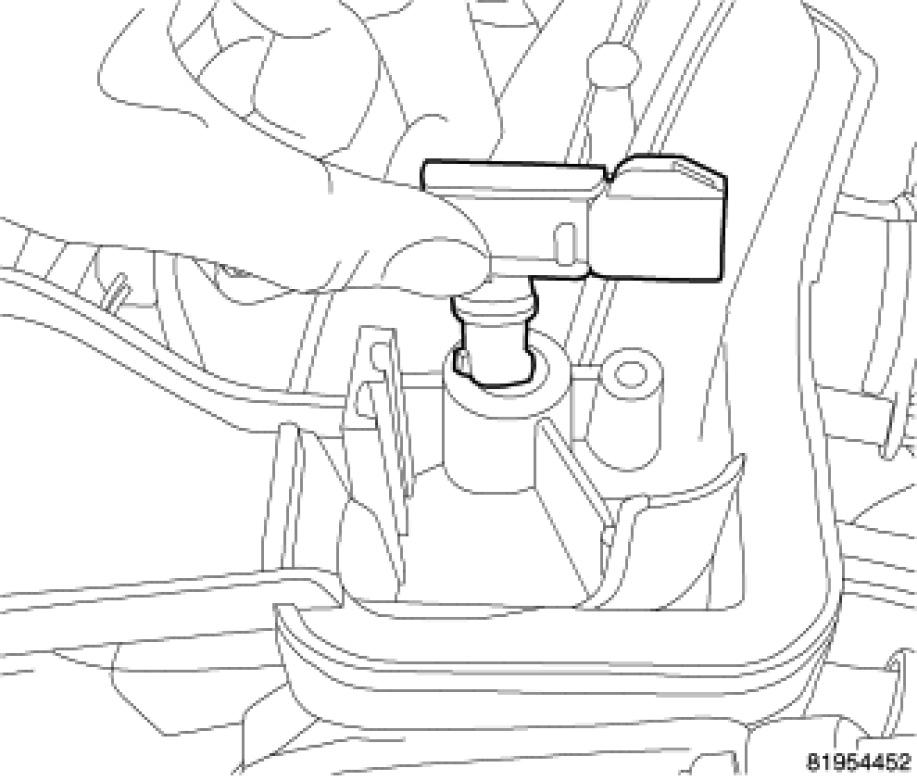

3. Turn sensor counterclockwise.




4. Lift sensor to remove.
