Left Side Shield
Left Side Shield
LEFT SIDE SHIELD
1.

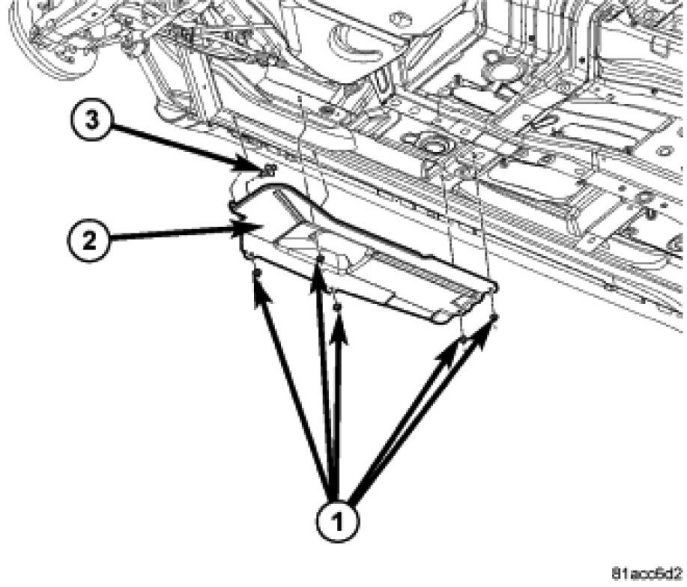

Install the left shield (2), pus pin (3) and tighten the nuts (1) to 29 Nm (21 ft. lbs.).
