Installation

INSTALLATION

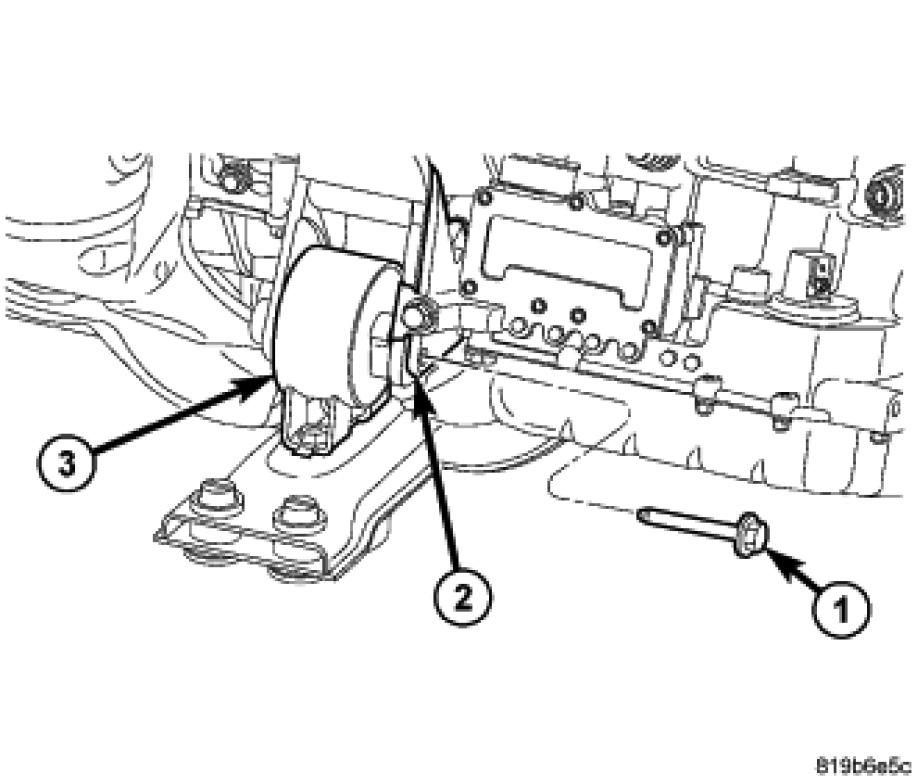

1. Install the fore/aft cross-member and install the engine anti-roll mount (3) through bolt (1). Tighten to 50 Nm (37 ft.lbs.).

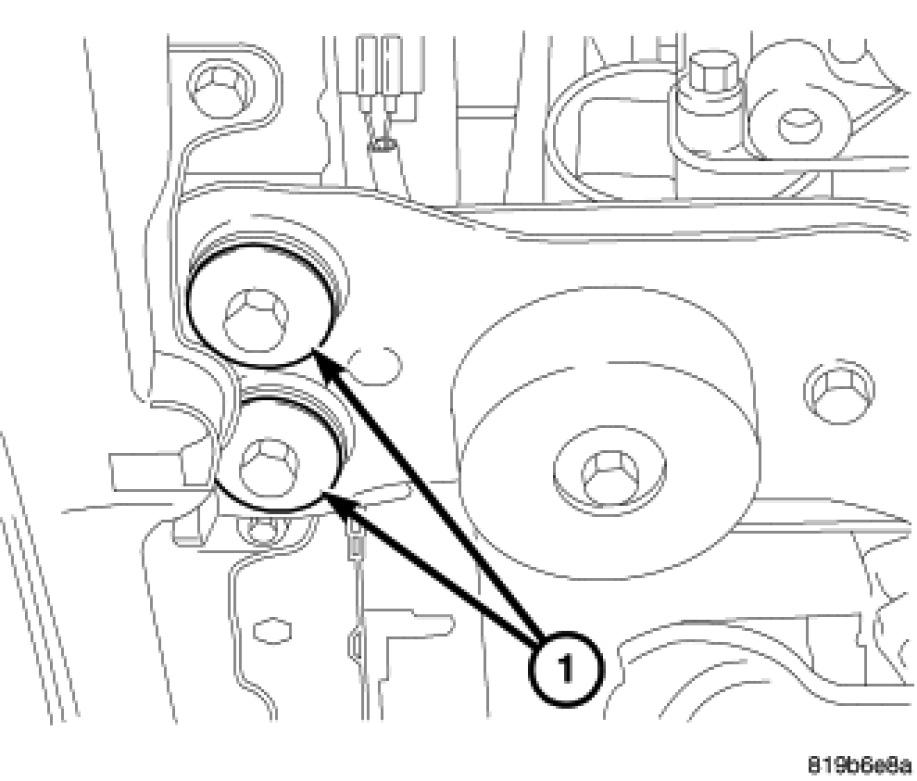

2. Install front bolts (1) and tighten to 55 Nm (40.5 ft. lbs.).

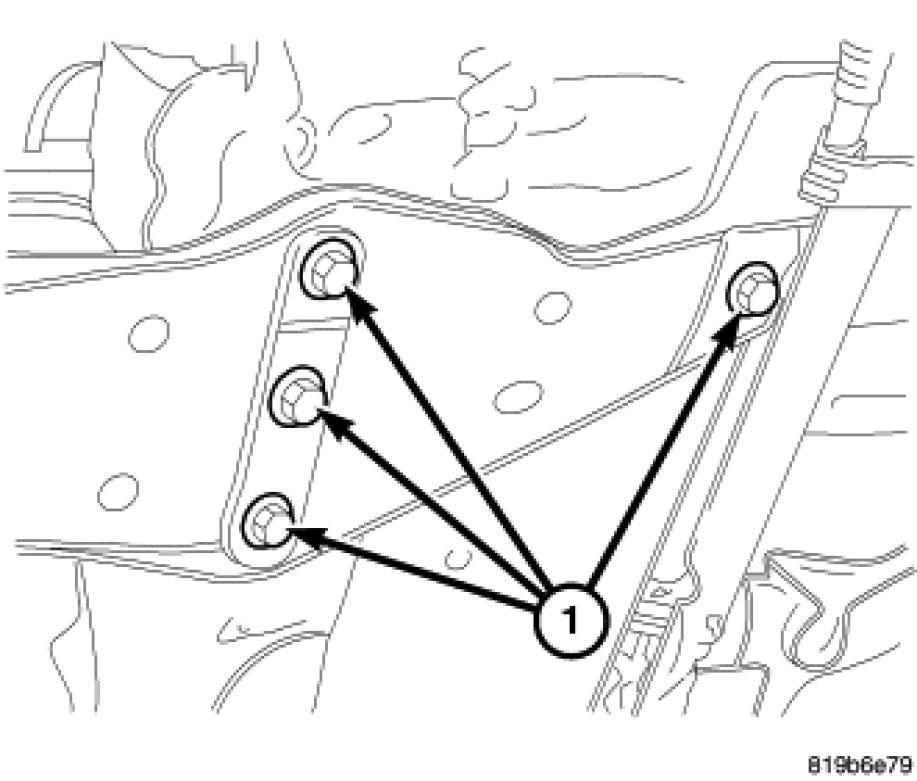

3. Install the rear bolts (1) and tighten to 55 Nm (41 ft. lbs.).
4. If equipped, install the belly pan.
