Manifold Pressure/Vacuum Sensor
>>
Service and Repair
>>
Installation
Installation
4.0L
1.

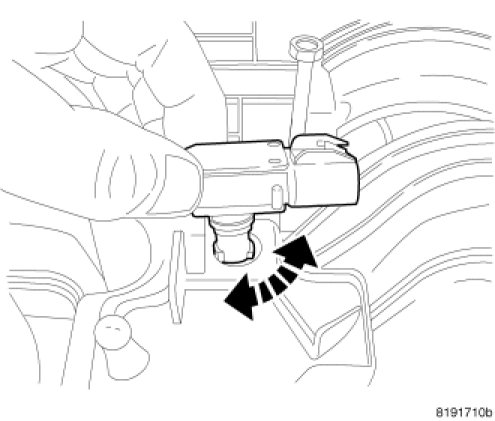

Install sensor and rotate.
2.

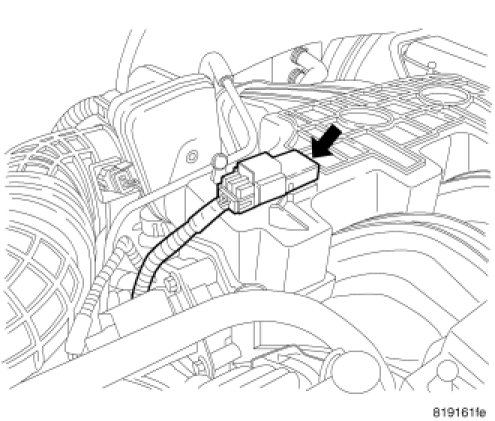

Attach electrical connector to sensor.
3.
Connect negative battery cable.
