Crankshaft Position Sensor - Installation

4.0L

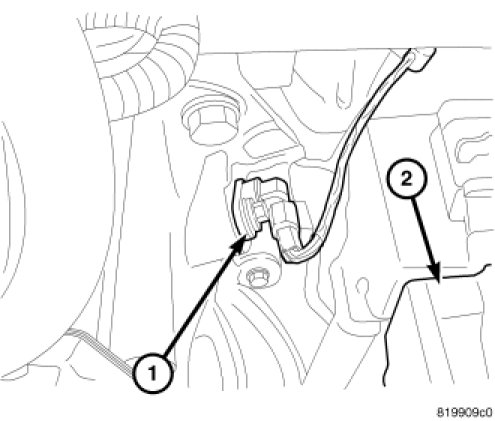

1. Install crankshaft position sensor (1) to the transmission housing.
2. Install bolt and tighten to 12 Nm (106 in. lbs.).
3. Connect electrical connector to the crankshaft position sensor (1).
4. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
