Installation

INSTALLATION

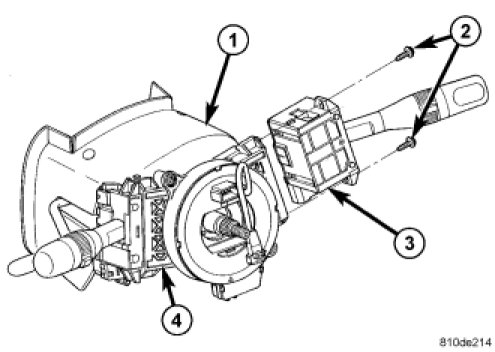

1. Position the right multi-function switch (3) onto the multi-function switch mounting housing (4).
2. Install the two screws (2) that secure the right multi-function switch (3) to the multi-function switch mounting housing (4).




3. Connect the instrument panel wire harness connector (2) to the right multi-function switch.

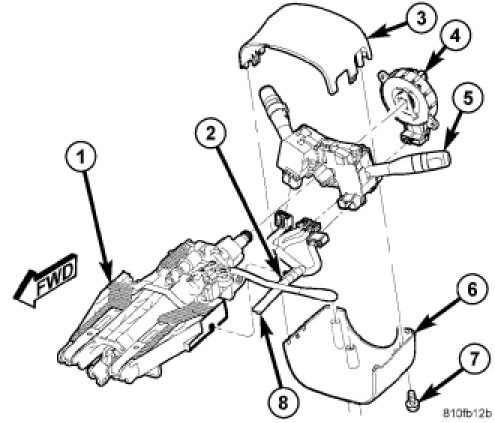

4. Install the upper and lower steering column shrouds (3 and 6) Installation and Installation.

WARNING: Do not connect the battery negative cable Refer to appropriate testing. Personal injury or death may result if the system test is not performed first.
