Bucket-Second Row

Installation

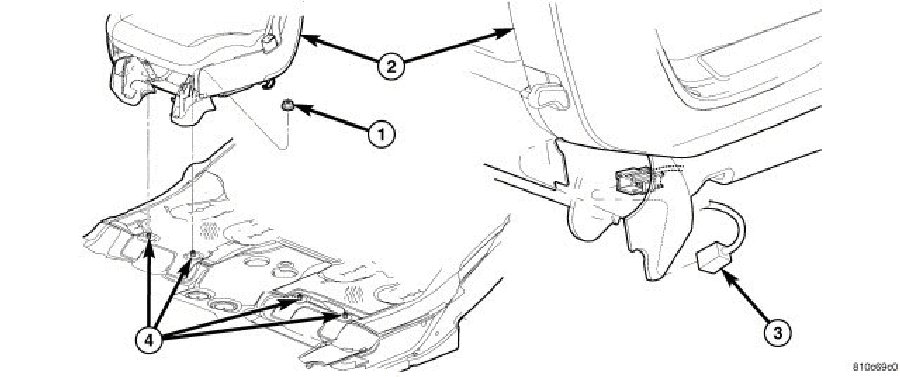

1. Place second row seat into position in vehicle.

2. Connect heated seat wire connector.

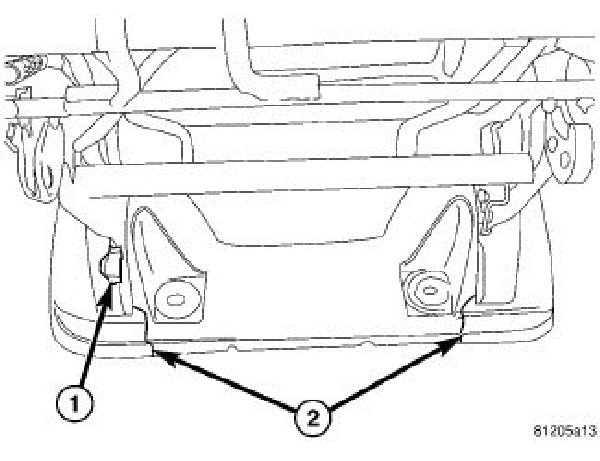

3. Install two nuts attaching seat to floor pan. Tighten nuts to 54 Nm (40 ft.lbs) torque.

4. Install headrest.

5. Connect battery negative cable.
