Installation

INSTALLATION

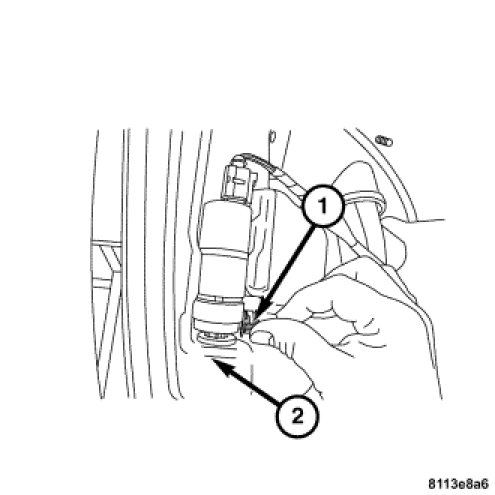

1. Route the washer hose (1) through the cowl opening and attach to the washer pump motor (2). Secure the attachment clamp.

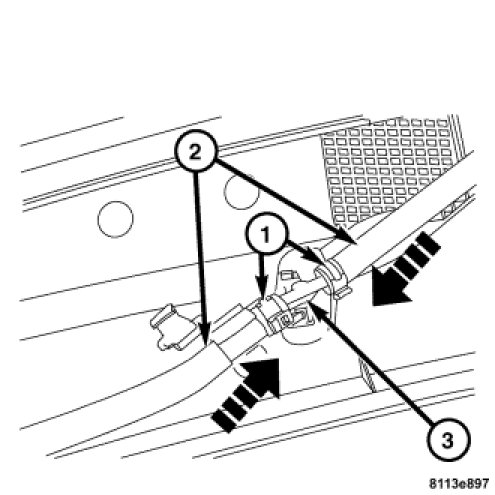

2. Slide the washer hose attachment clamp(s) (1) over the hose(s) (2).
3. Install the washer hose(s) (2) to the washer nozzle (3) and secure the washer hose attachment clamp(s) (1) and the two washer hose retaining clips.
4. Install the cowl grille. Installation.
5. Install the right front inner fender liner.
