Crankshaft Position Sensor - Installation







INSTALLATION

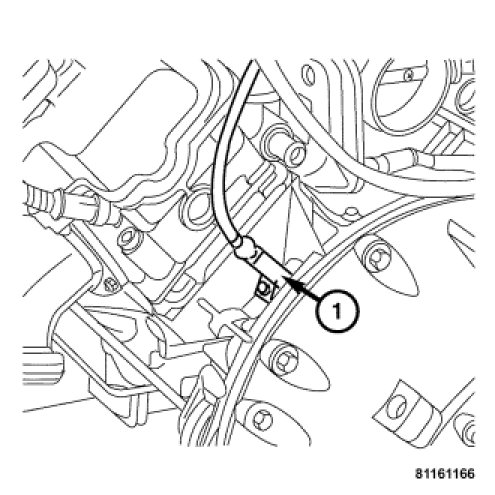

1. Install the crankshaft position sensor (1) to the engine. Tighten to 8 Nm (71 in. lbs.).
2. Connect the crankshaft position sensor harness connector.
3. Install the air cleaner housing. Air Cleaner Housing - Installation.
4. Connect the negative battery cable.
