Installation







INSTALLATION





1. Connect the heater core temperature sensor harness connector to the sensor.

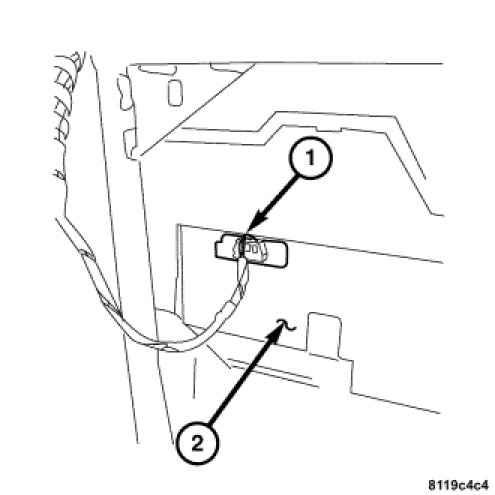

2. Install the heater core temperature sensor (1) to the front of the heater A/C case (2).
3. Install the center console. Center Console - Installation.
