Door Module - Removal







REMOVAL





NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection.

1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel Removal.
3. Disconnect electrical harness connectors.

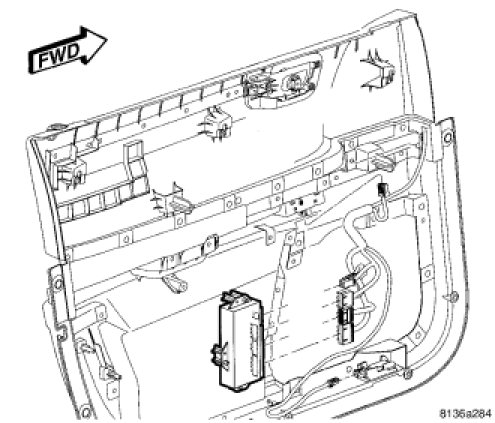

4. Remove mounting fasteners and module.
