Installation

3.5L





1. Install generator.

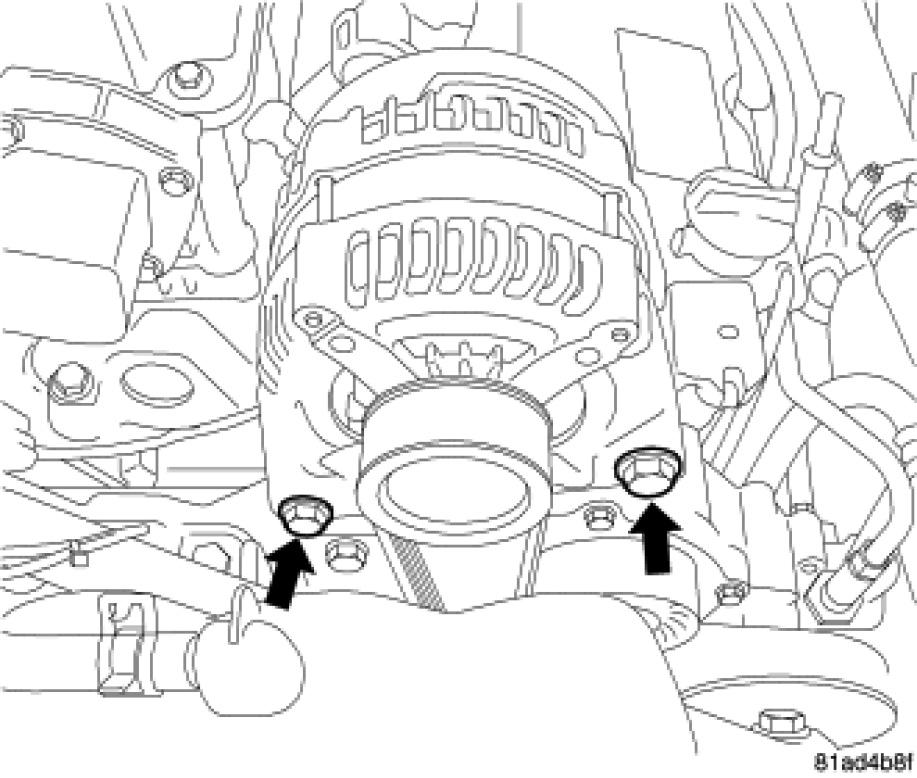

2. Install mounting bolts and tighten to 26 Nm (19 ft. lbs.).

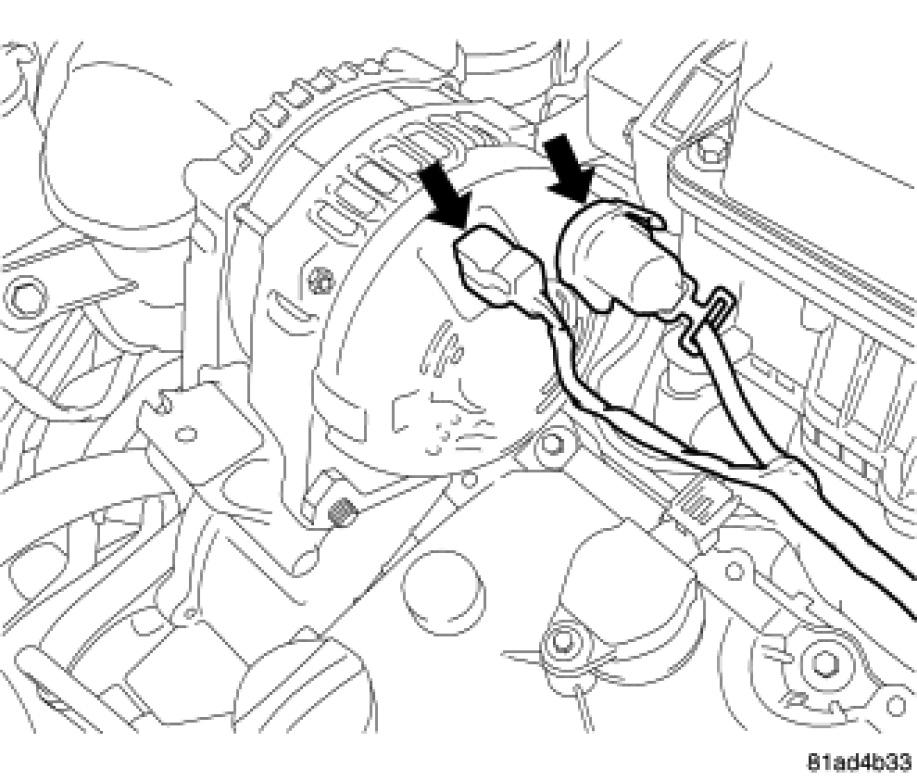

3. Install battery cable. Tighten nut to 10 Nm (88.5 in. lbs.

4. Connect electrical connector to generator.

5. Install access drive belt.

6. Install engine cover.

7. Connect negative battery cable.
