Home >> Chrysler >> 2007 >> Sebring Sedan V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications






SPECIFICATIONS

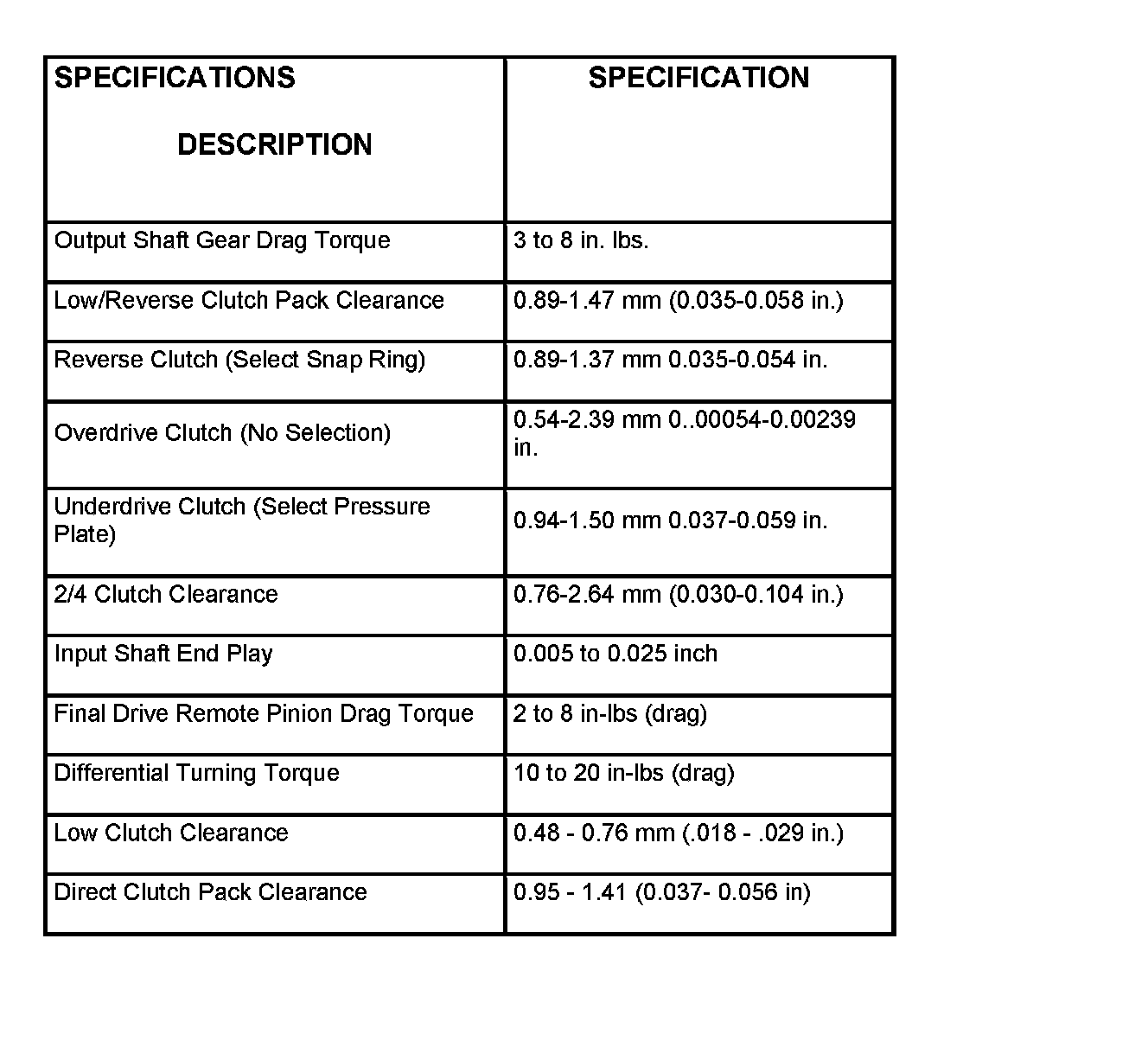

Specifications:

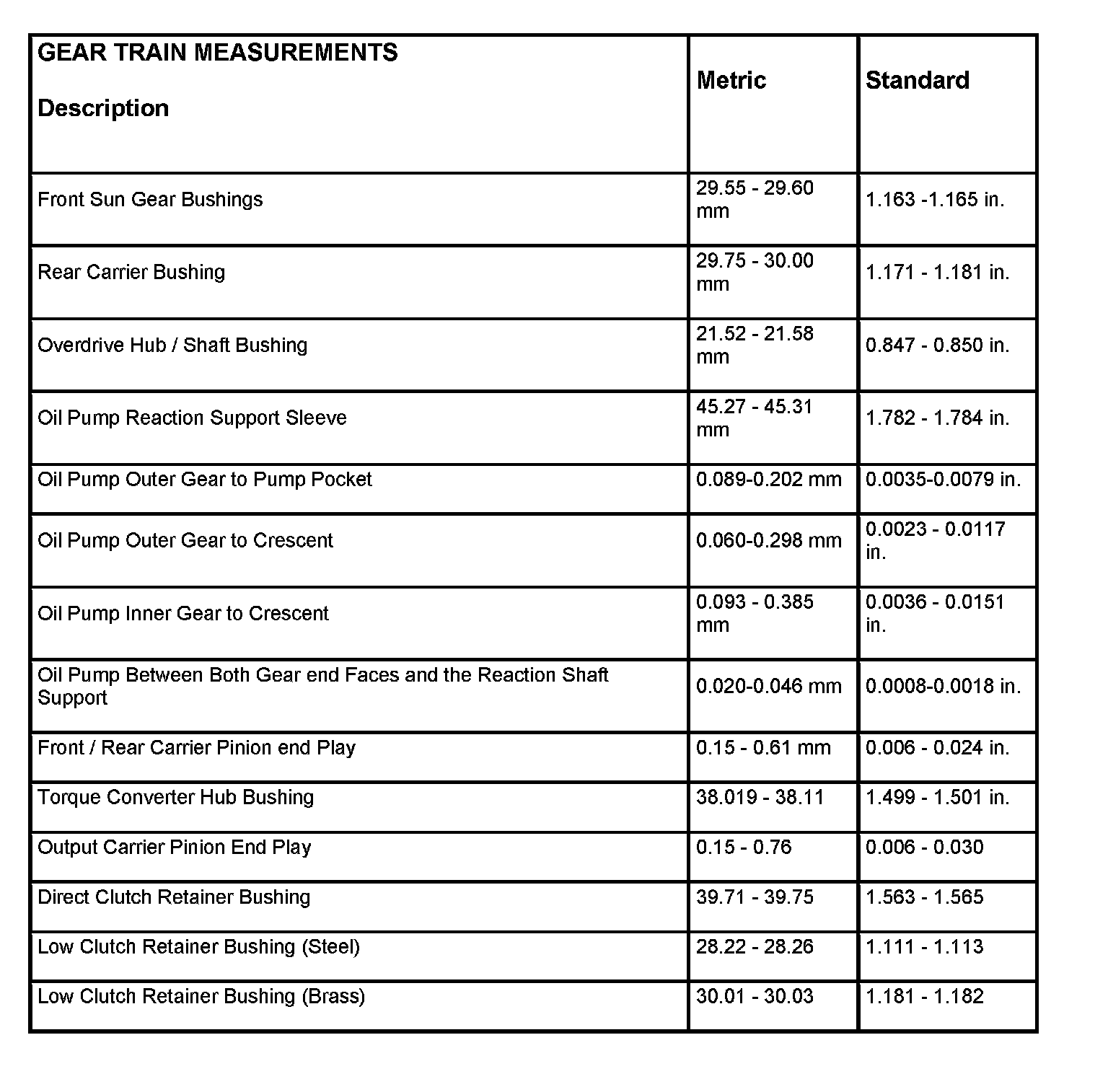

Gear Train Measurements:

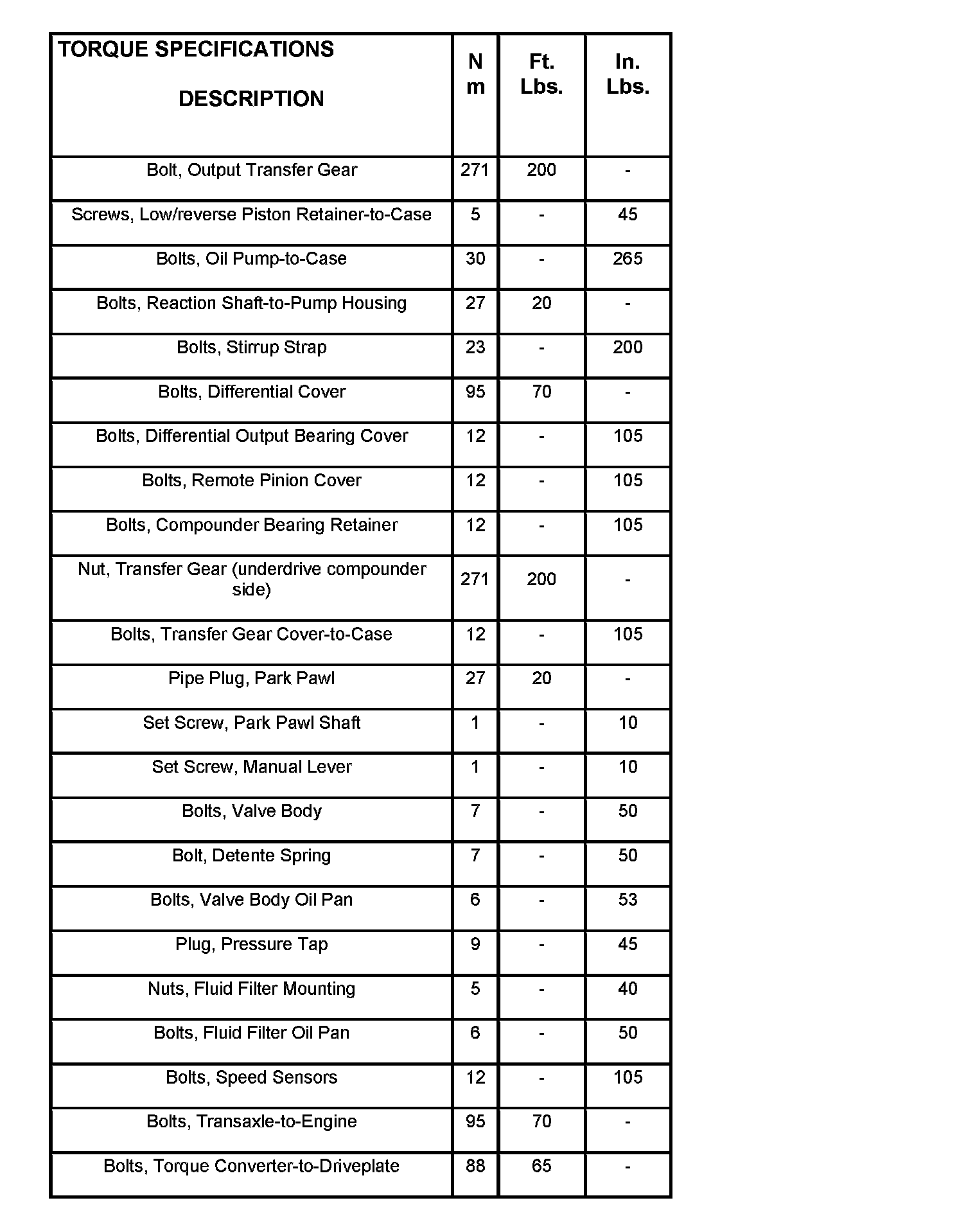

Torque Specifications (Part 1):

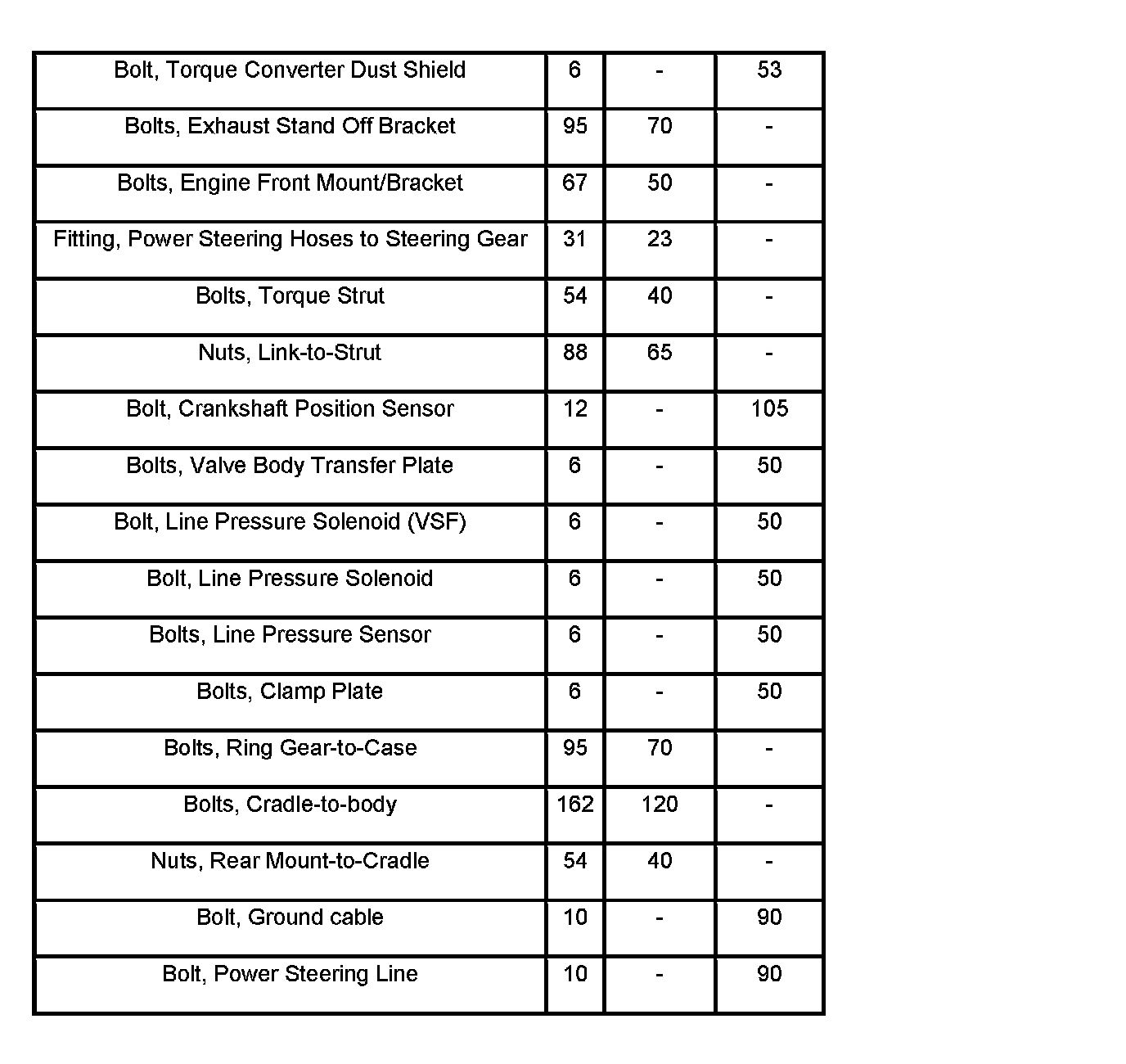

Torque Specifications (Part 2):
