Removal

2.7L

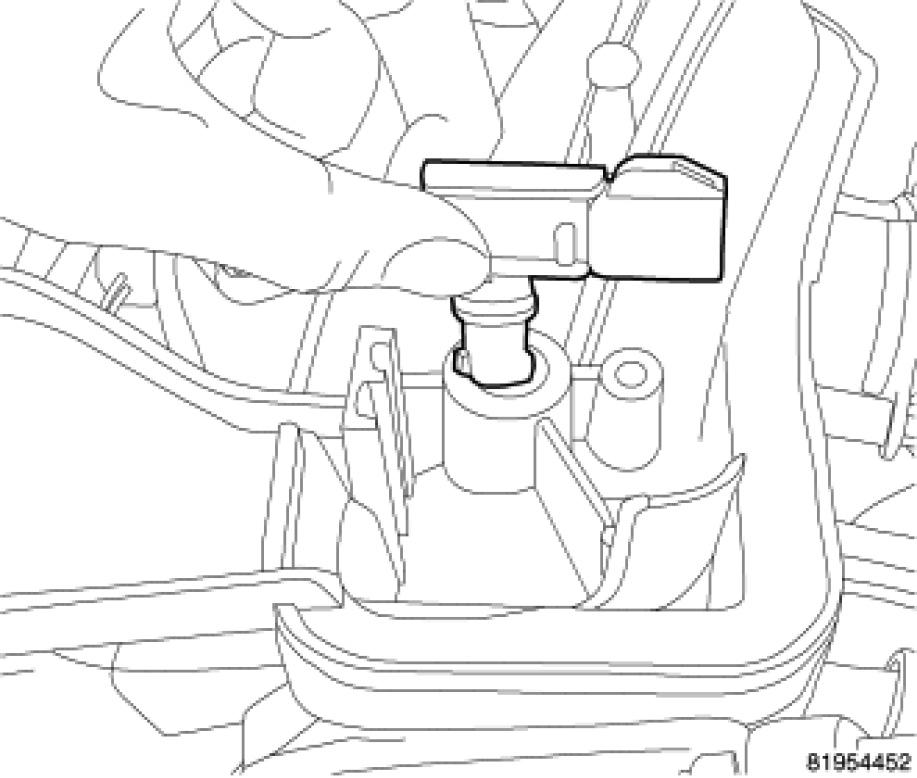

1. MAP sensor location.

2. Remove the negative battery cable.




3. Disconnect the electrical connector from the MAP sensor.




4. Turn sensor counterclockwise.




5. Lift sensor to remove.
