Installation

2.7L

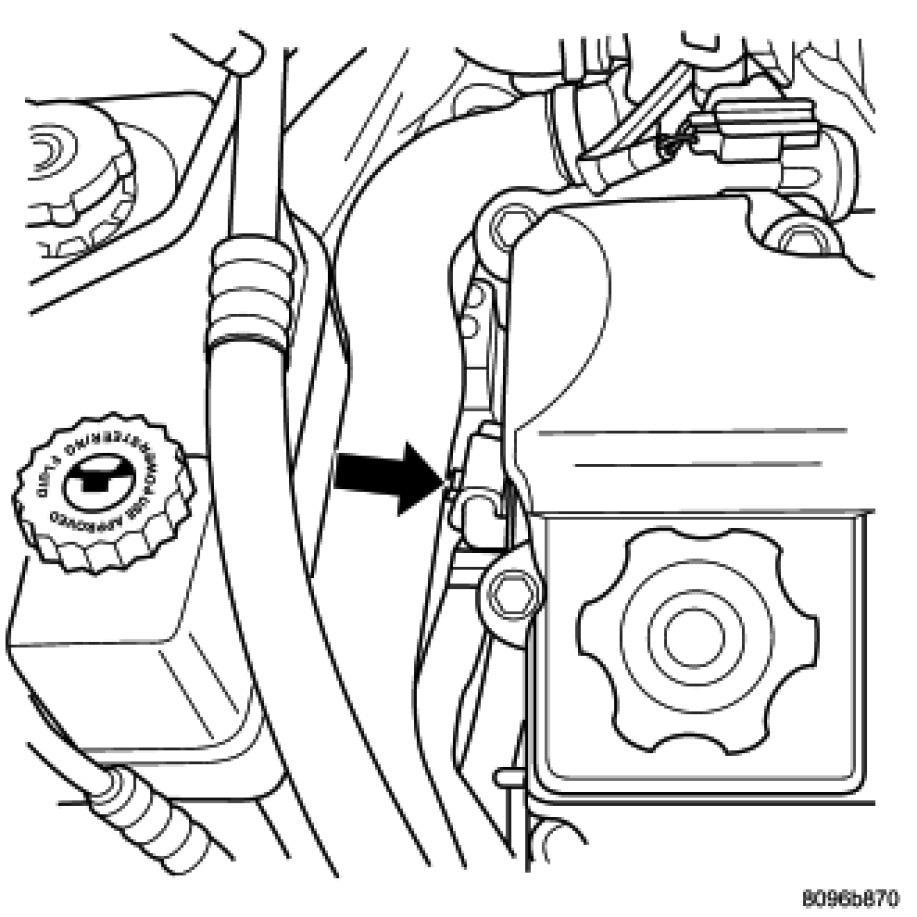

The camshaft position sensor is mounted in the front of the head.

1. Install sensor in the chain case cover and push sensor in until contact is made with the boss on the head. While holding the sensor in this position, install and tighten the retaining bolt to 12 Nm (105 in. lbs.).

2. Attach electrical connector to sensor.
