Wheel Alignment Specifications






WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height.

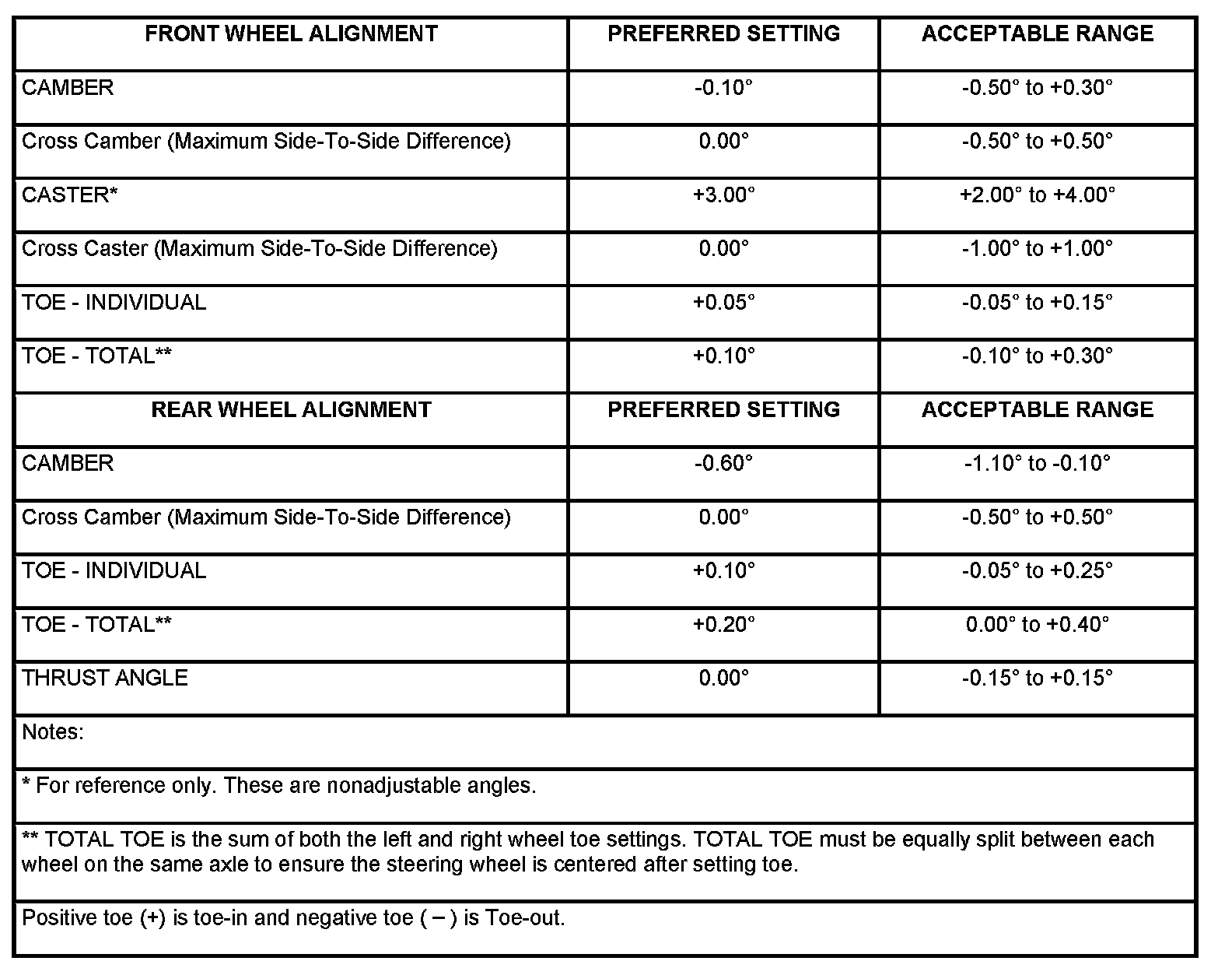

Wheel Alignment Specifications:
