Home >> Chrysler >> 2007 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Body and Frame >> System Diagram

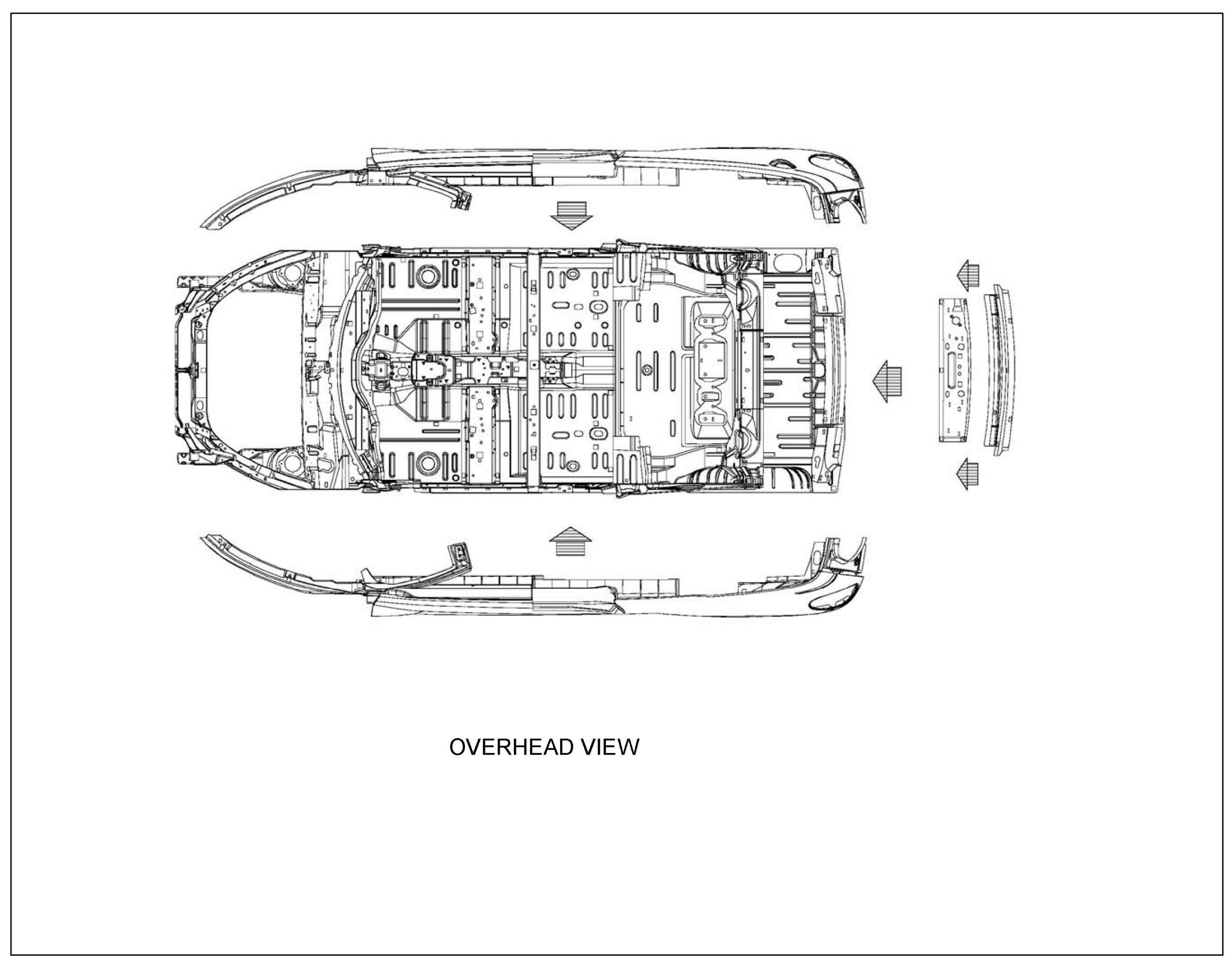

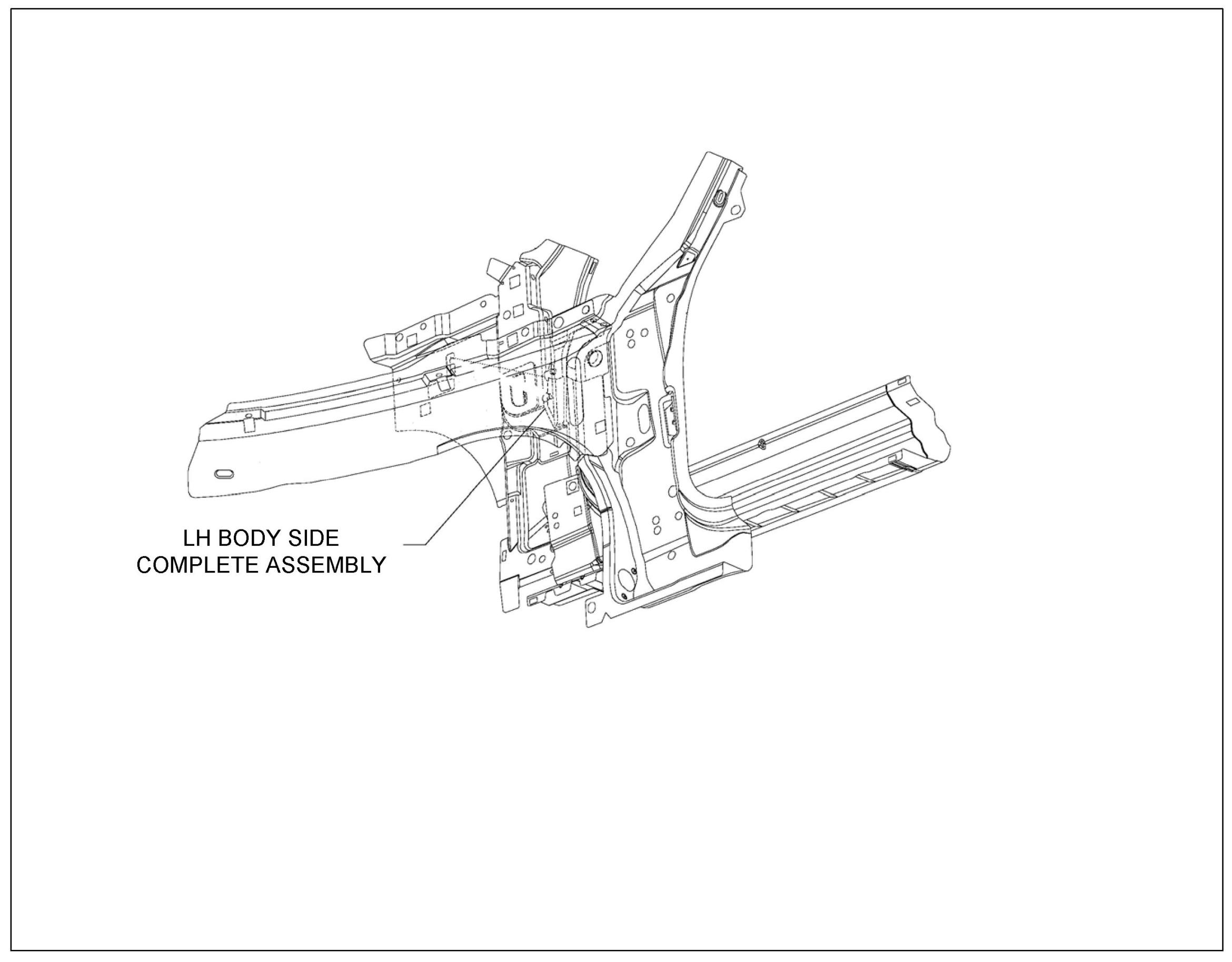

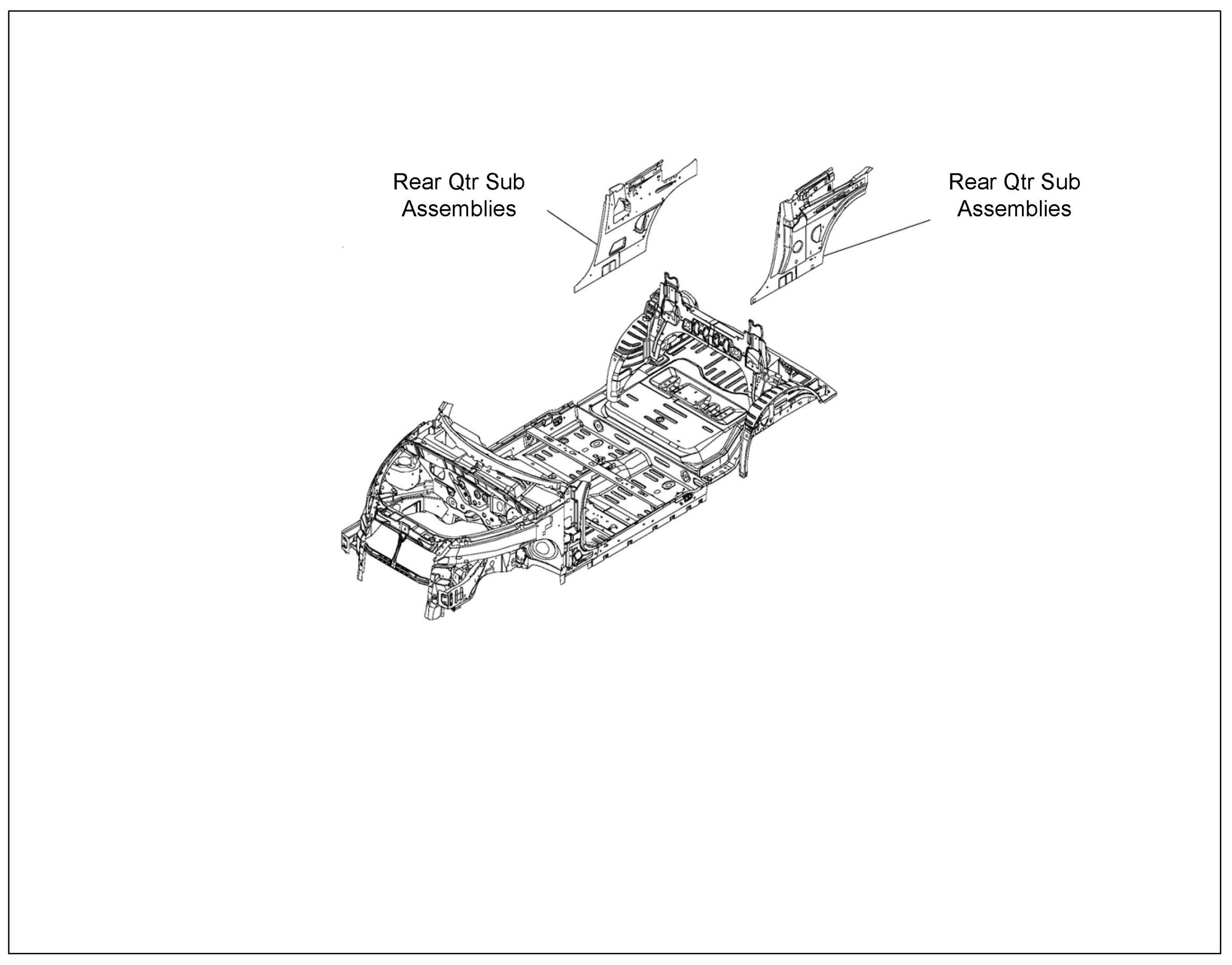

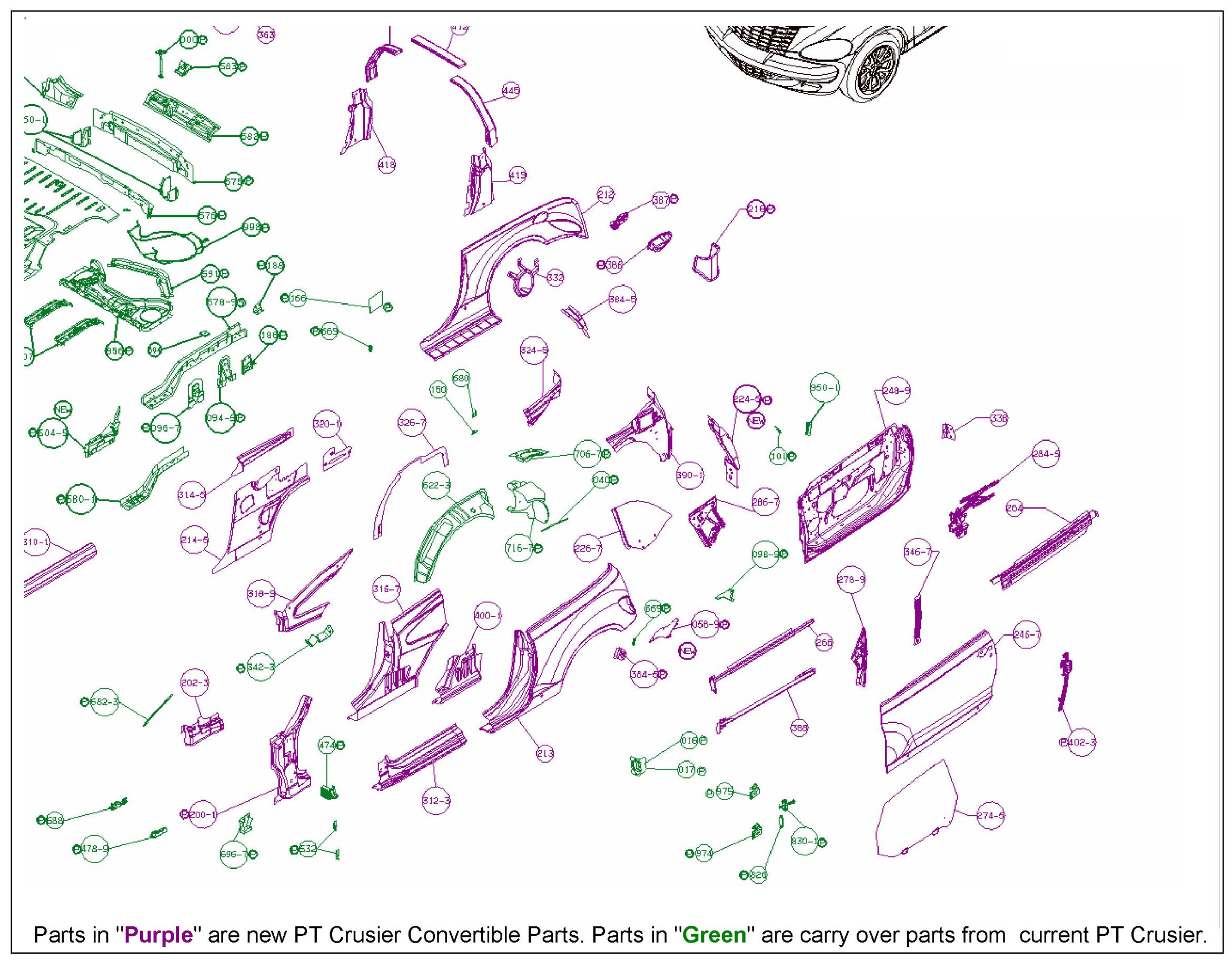

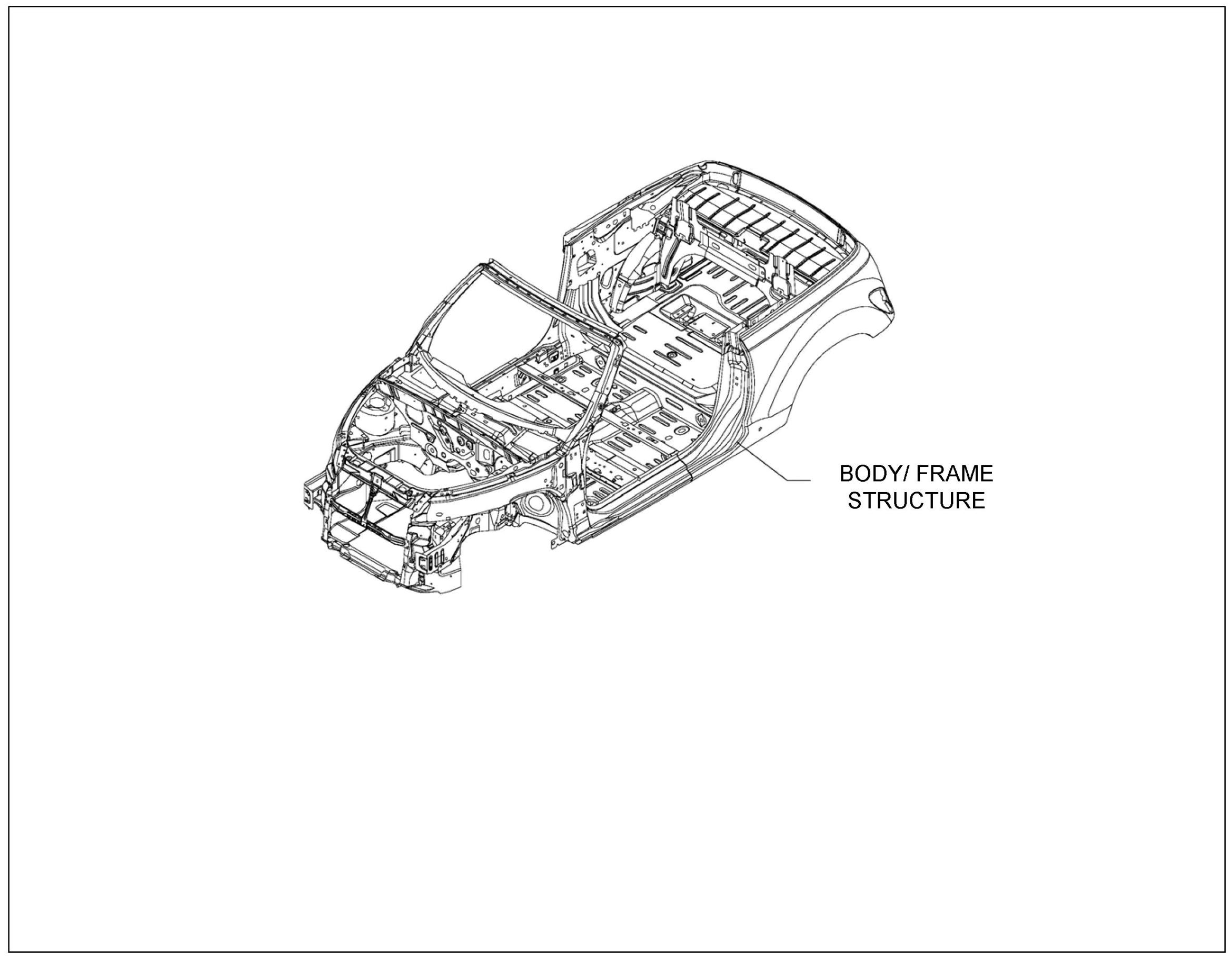

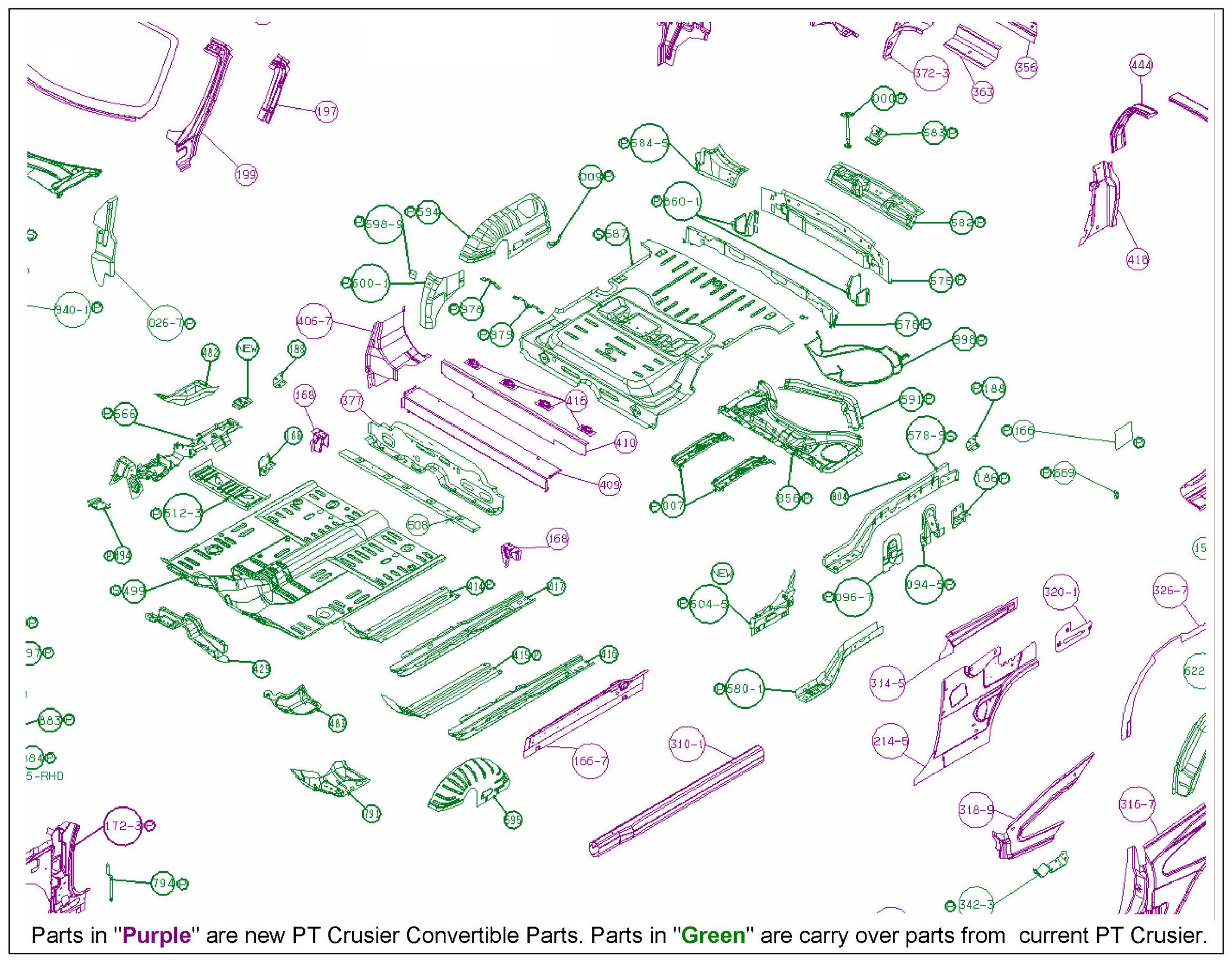

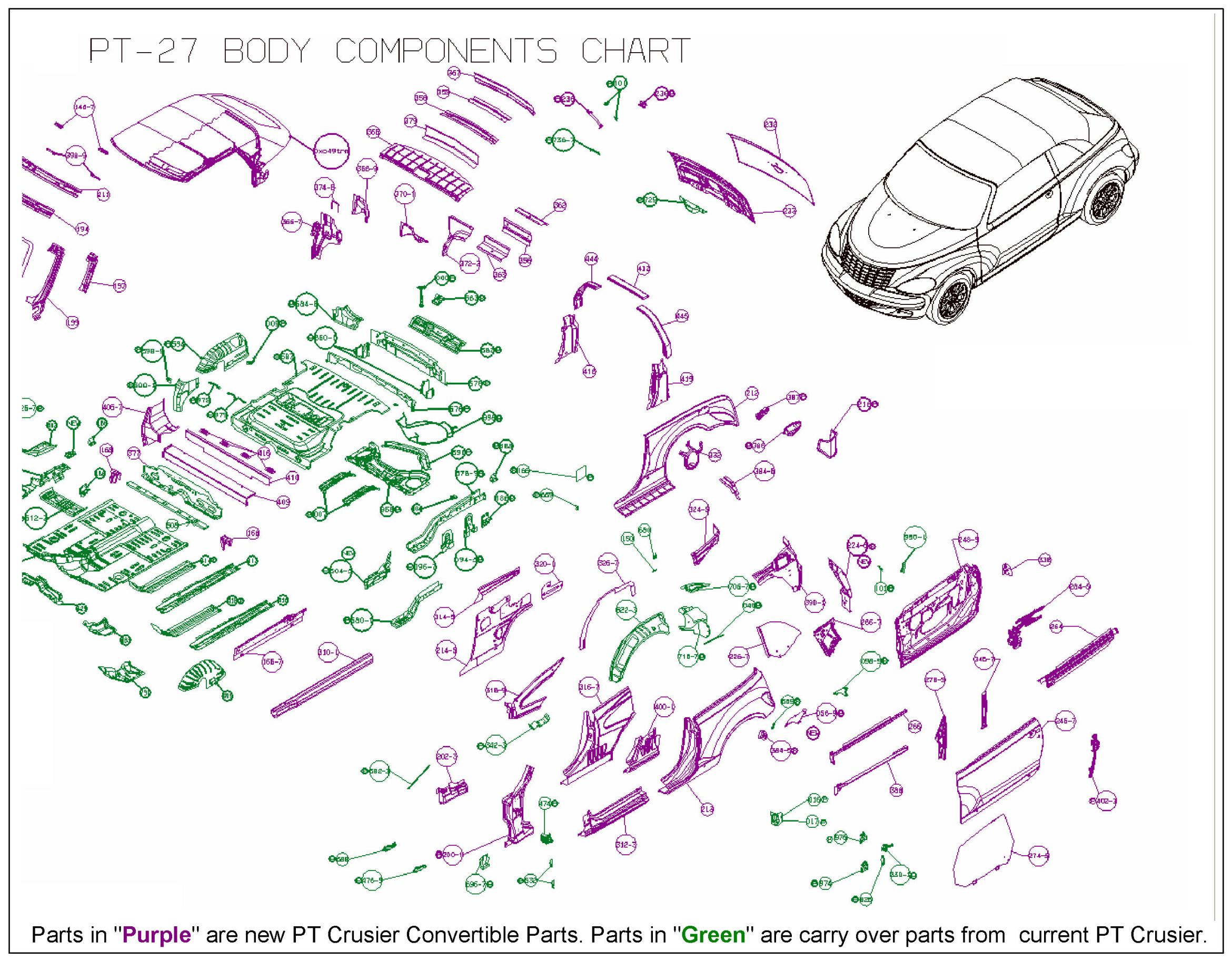

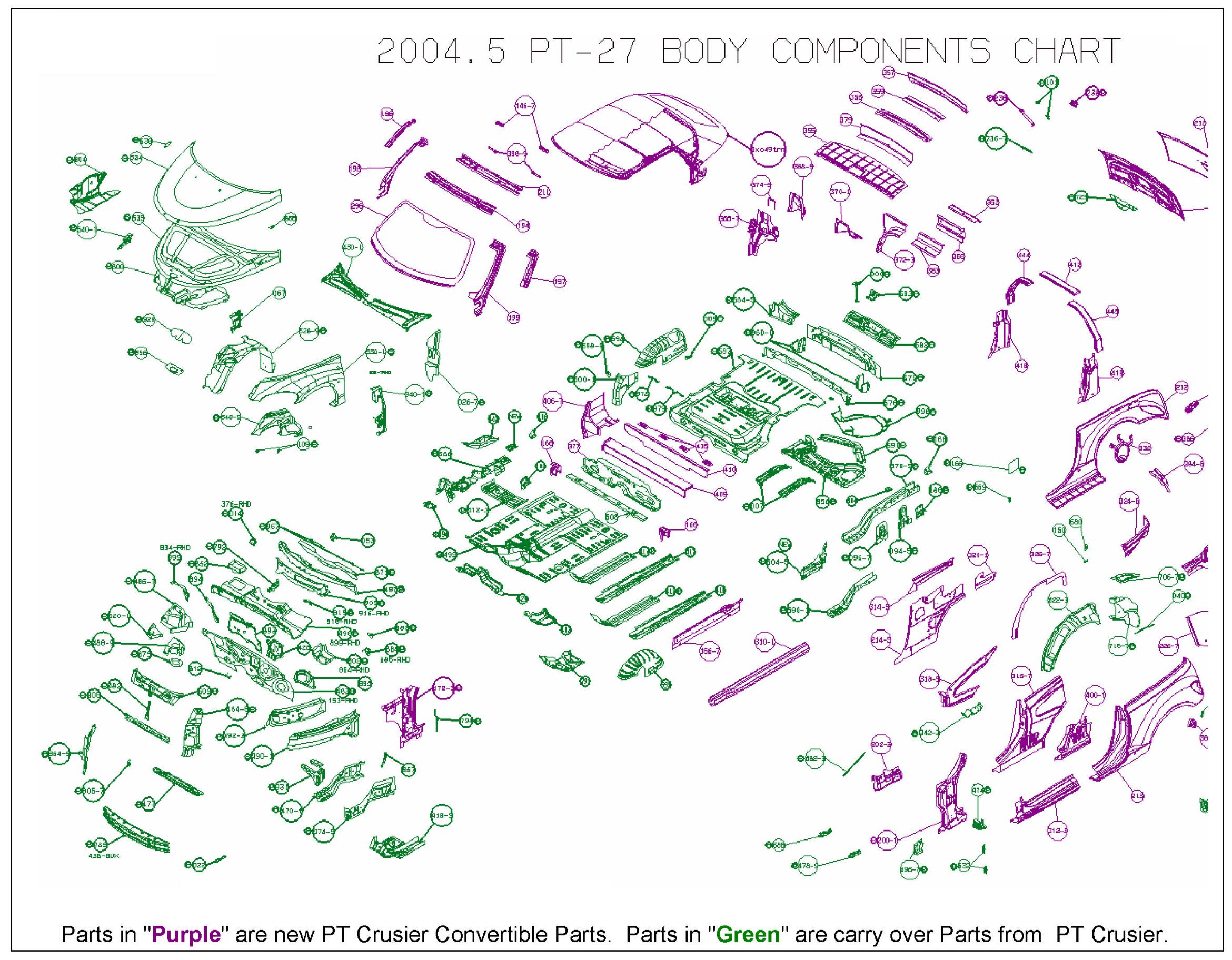

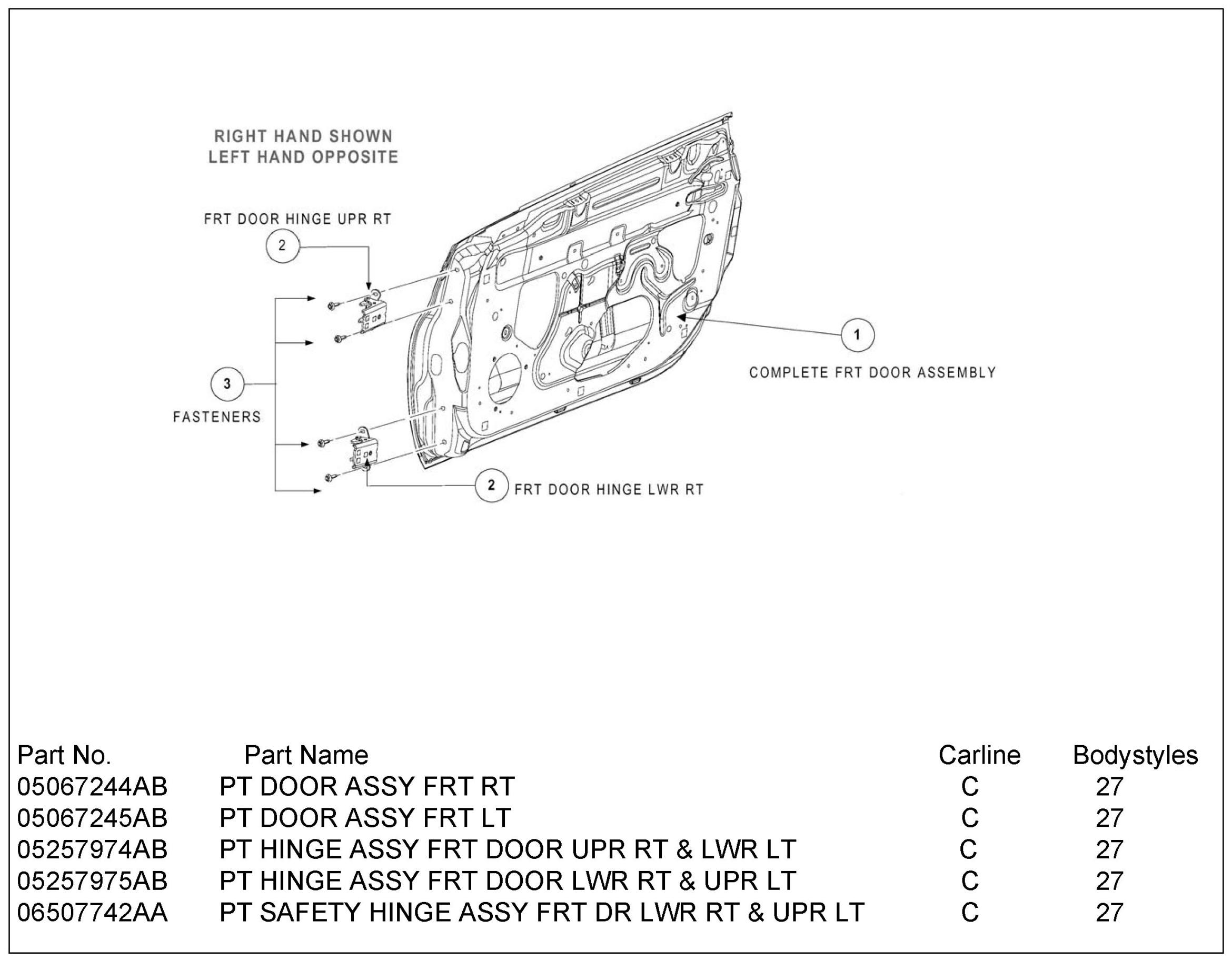

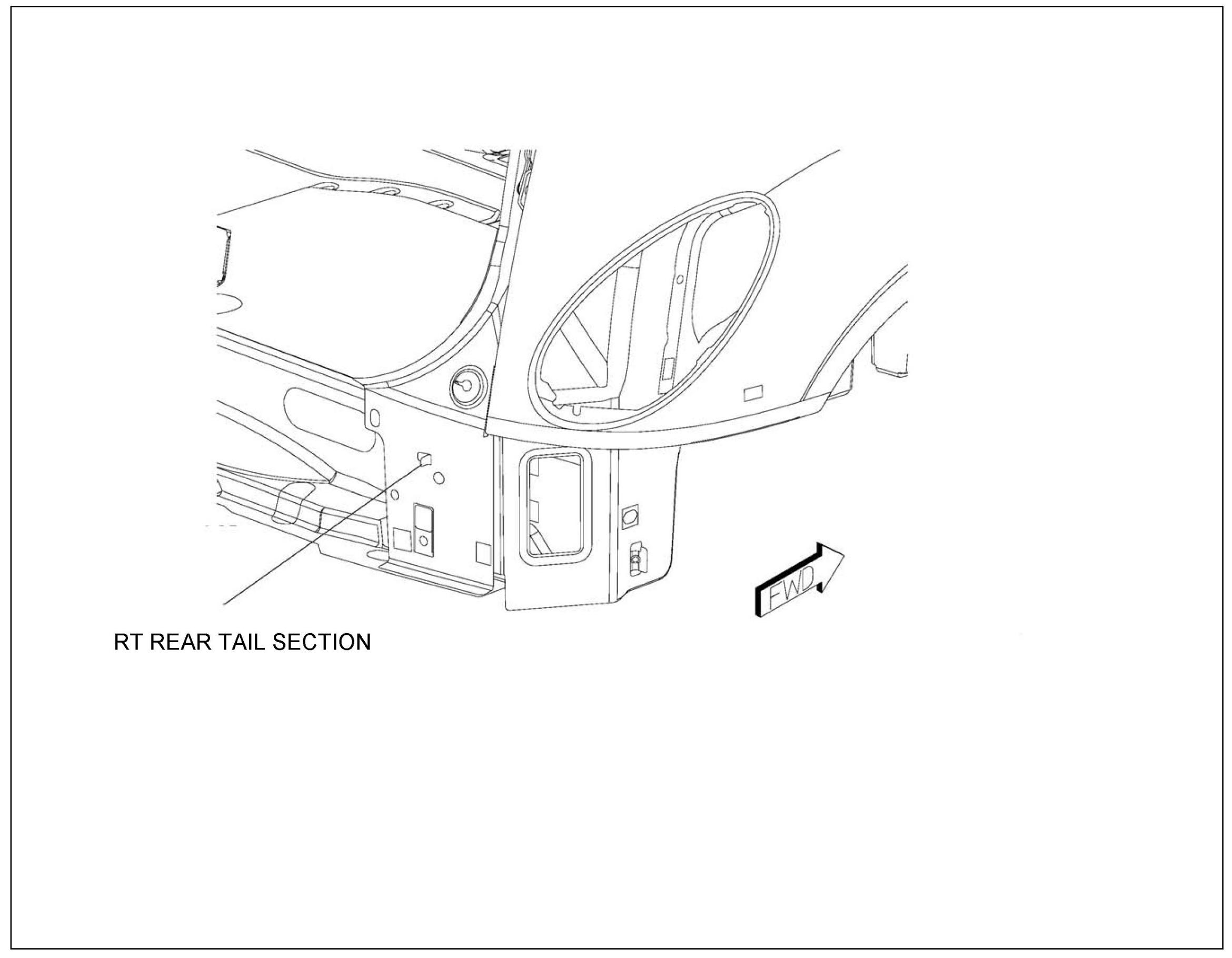

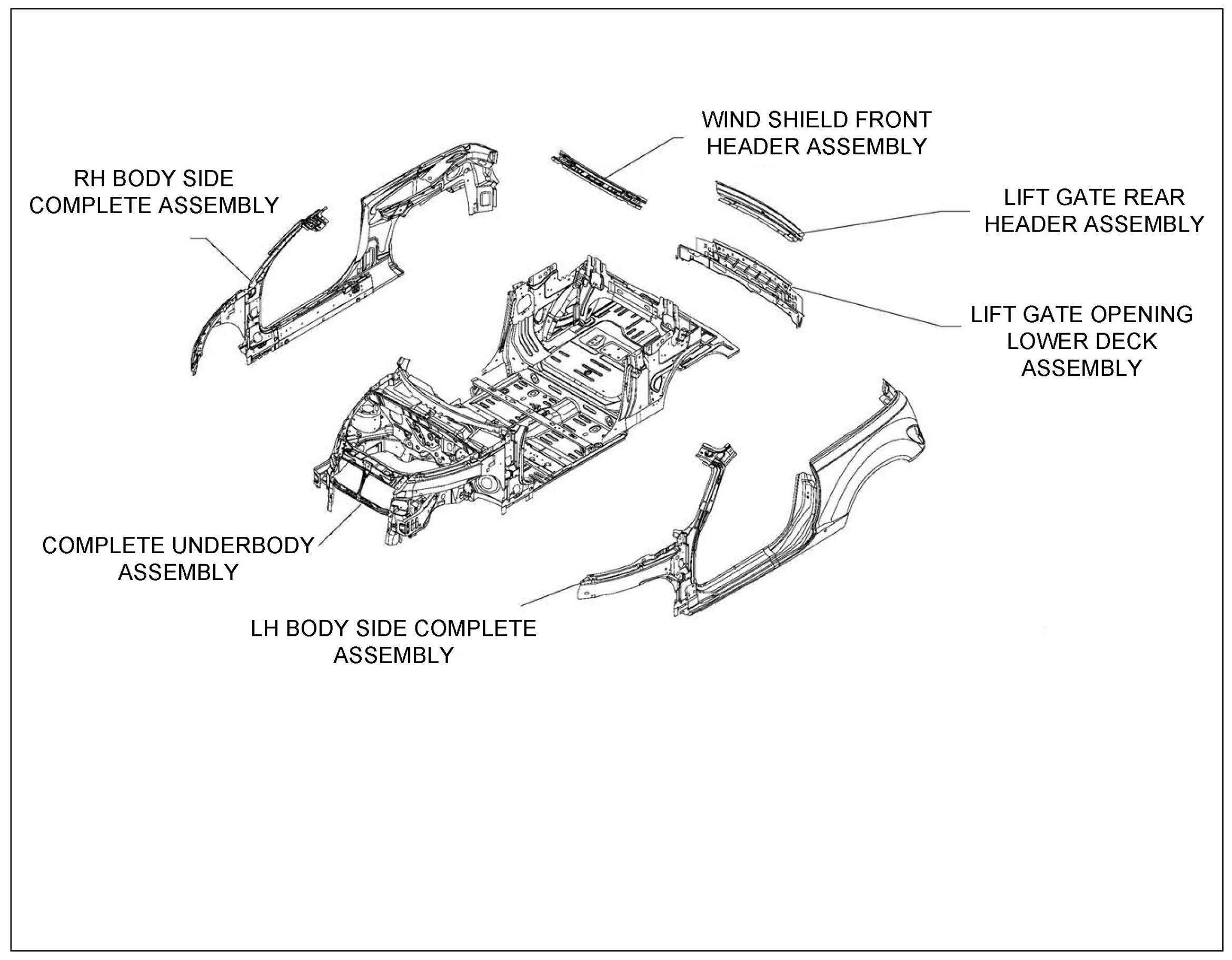

System Diagram
