Installation






INSTALLATION





1. Connect the heater core temperature sensor harness connector to the sensor.

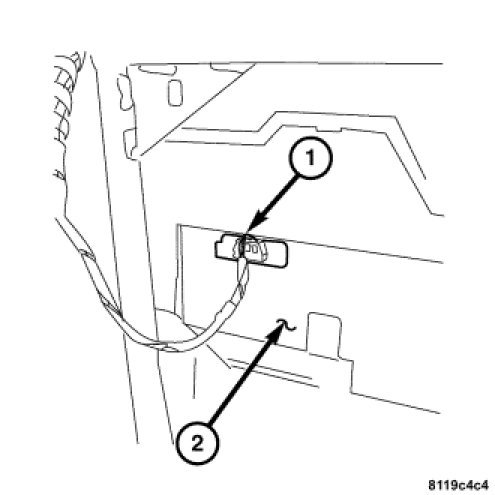

2. Install the heater core temperature sensor (1) to the front of the heater A/C case (2).

3. Install the center console.
