Refrigerant Pressure Sensor / Switch: Locations

Component ID: 456
Component : TRANSDUCER-A/C PRESSURE

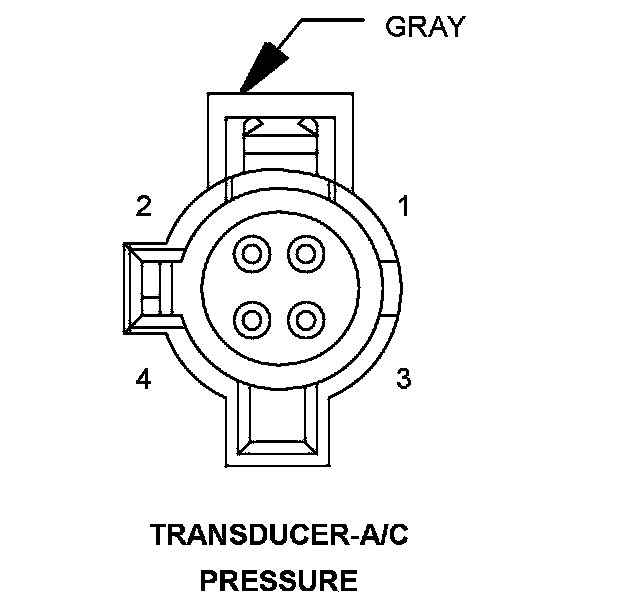

Connector:
Name : TRANSDUCER-A/C PRESSURE
Color : GRAY
# of pins : 4




Pin Description Circuit
1 FCM SENSOR RETURN G180 20VT/YL
2 5 VOLT SUPPLY T103 20YL/OR
3 A/C PRESSURE SIGNAL C18 20LB/BR
4 - -

Component Location - 10
