Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

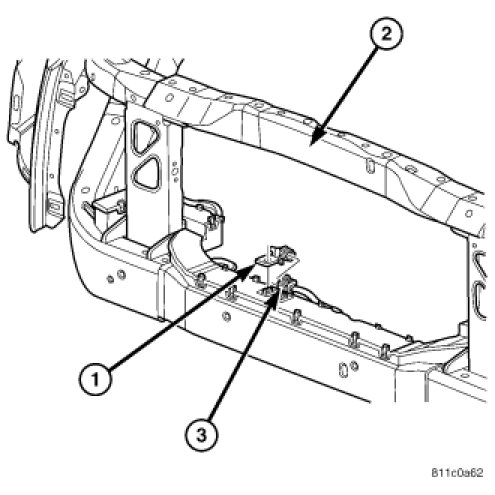

2. Locate the ambient temperature sensor (1), on the right side of the radiator yoke (2) behind the grille.

3. Disconnect the wire harness connector (3) from the ambient temperature sensor connector receptacle.

4. Remove the one screw that secures the ambient temperature sensor bracket to the radiator yoke.

5. Remove the ambient temperature sensor from the radiator yoke.
