Sensor-Wheel Speed-ABS-Left Rear

Component ID: 398
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

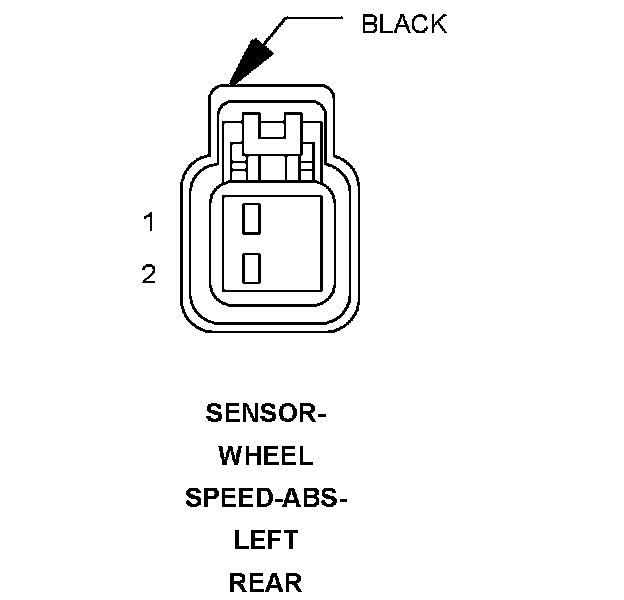

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 LEFT REAR WHEEL SPEED SENSOR (+) B4 18LG/GY
2 LEFT REAR WHEEL SPEED SENSOR (-) B3 18DG/YL

Component Location - 54
