Switch-Sunroof/Liftgate PLG

Component ID: 449
Component : SWITCH-SUNROOF/LIFTGATE PLG

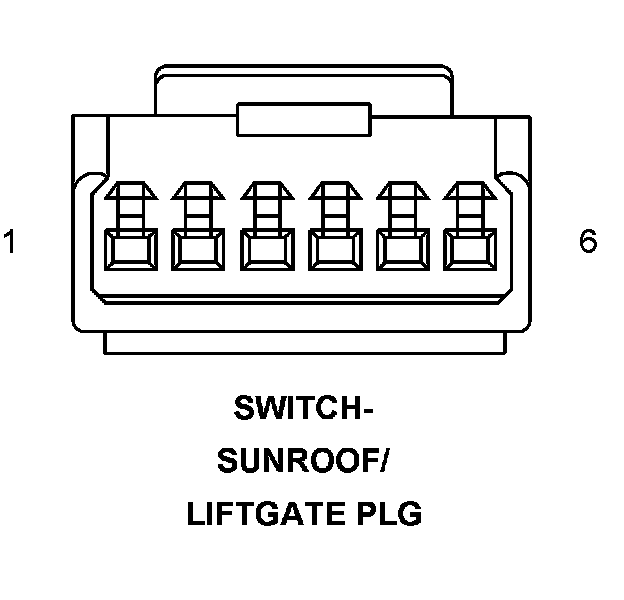

Connector:
Name : SWITCH-SUNROOF/LIFTGATE PLG
Color :
# of pins : 6




Pin Description Circuit
1 SUNROOF VENT Q4 20OR/YL
2 GROUND Z957 20BK
3 SUNROOF OPEN Q3 20OR/TN
4 SUNROOF CLOSE Q5 20OR/LB
5 GROUND Z957 20BK
6 LIFTGATE SWITCH SENSE G25 20VT/TN

Component Location - 42
