Overdrive Switch, A/T

Component ID: 450

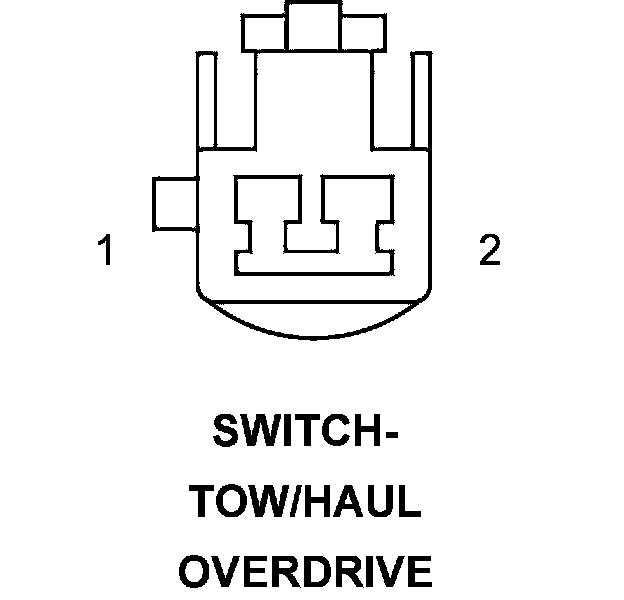

Component : SWITCH-TOW/HAUL OVERDRIVE

Connector:
Name : SWITCH-TOW/HAUL OVERDRIVE
Color :
# of pins : 2




Pin Description Circuit
1 TOW/HAUL OVERDRIVE OFF SWITCH SENSE T6 20LB/LG
2 GROUND Z953 20BK

Component Location - 32
