Power Outlet-Rear Seat
Component ID: 206

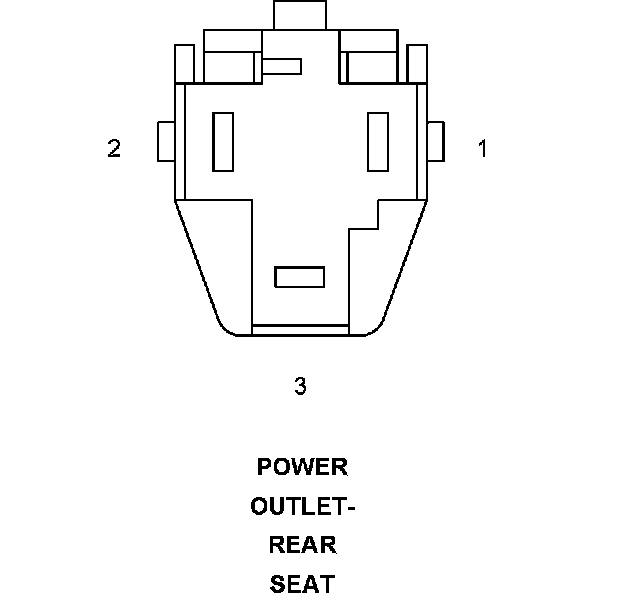

Component : POWER OUTLET-REAR SEAT
Connector:
Name : POWER OUTLET-REAR SEAT
Color :
# of pins : 3
Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F307 16LB/PK
2 - -
3 GROUND Z964 16BK
Component ID: 206
Component : POWER OUTLET-REAR SEAT
Connector:
Name : POWER OUTLET-REAR SEAT
Color :
# of pins : 3
Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F307 16LB/PK
2 - -
3 GROUND Z964 16BK
