Home >> Chrysler >> 2007 >> Aspen 2WD V8-4.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Integrated Power Module

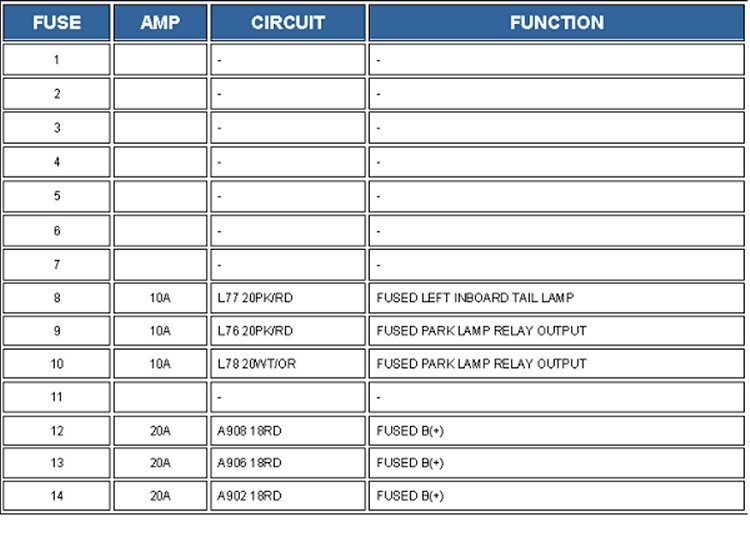

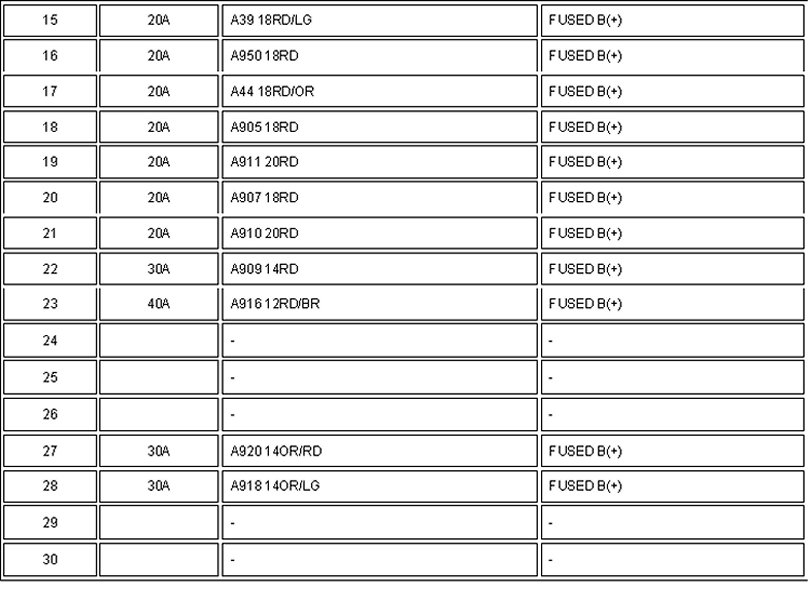

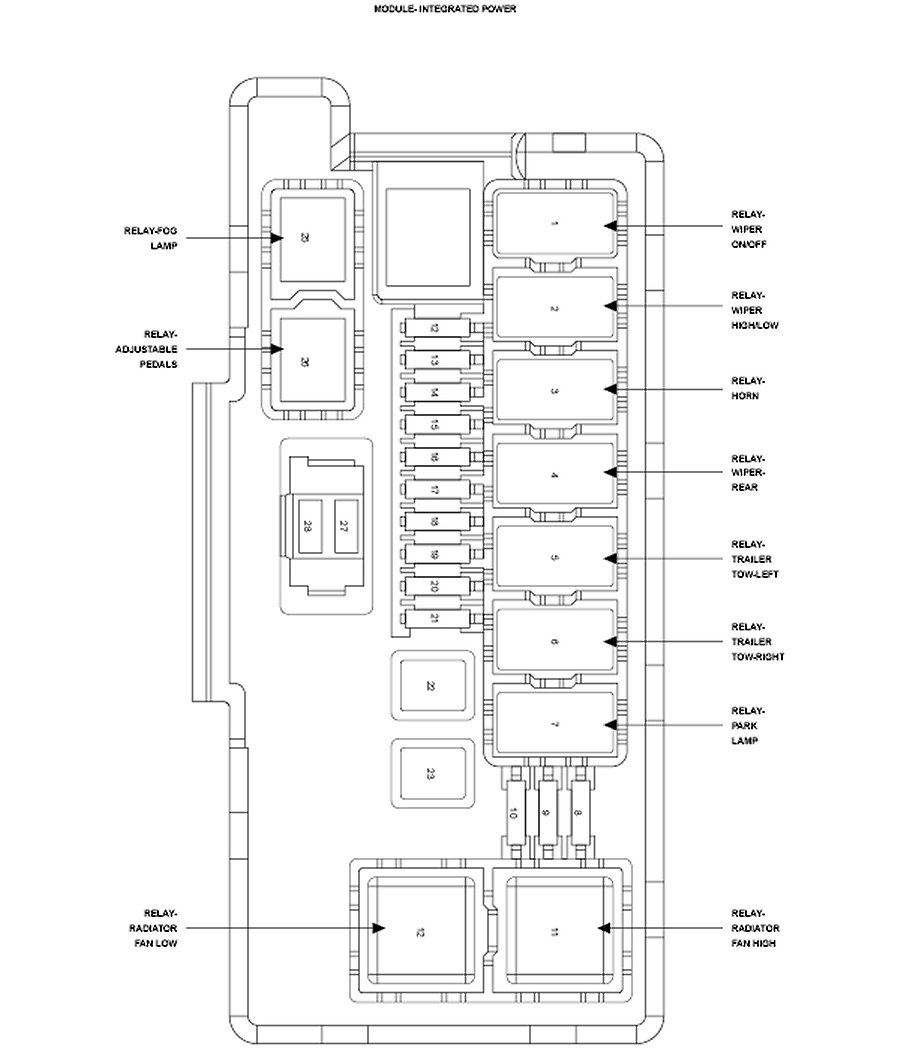

Integrated Power Module



Integrated Power Module
