Installation






INSTALLATION





NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

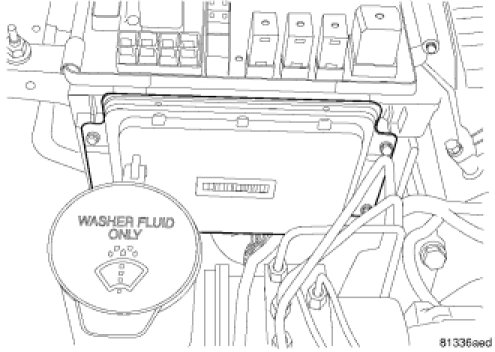

1. Position Front Control Module (FCM) and connect electrical connectors.

2. Install and tighten mounting fasteners.

3. Connect battery negative cable.
