Home >> Chrysler >> 2007 >> 300 V6-2.7L VIN R >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Integrated Power Module (IPM)

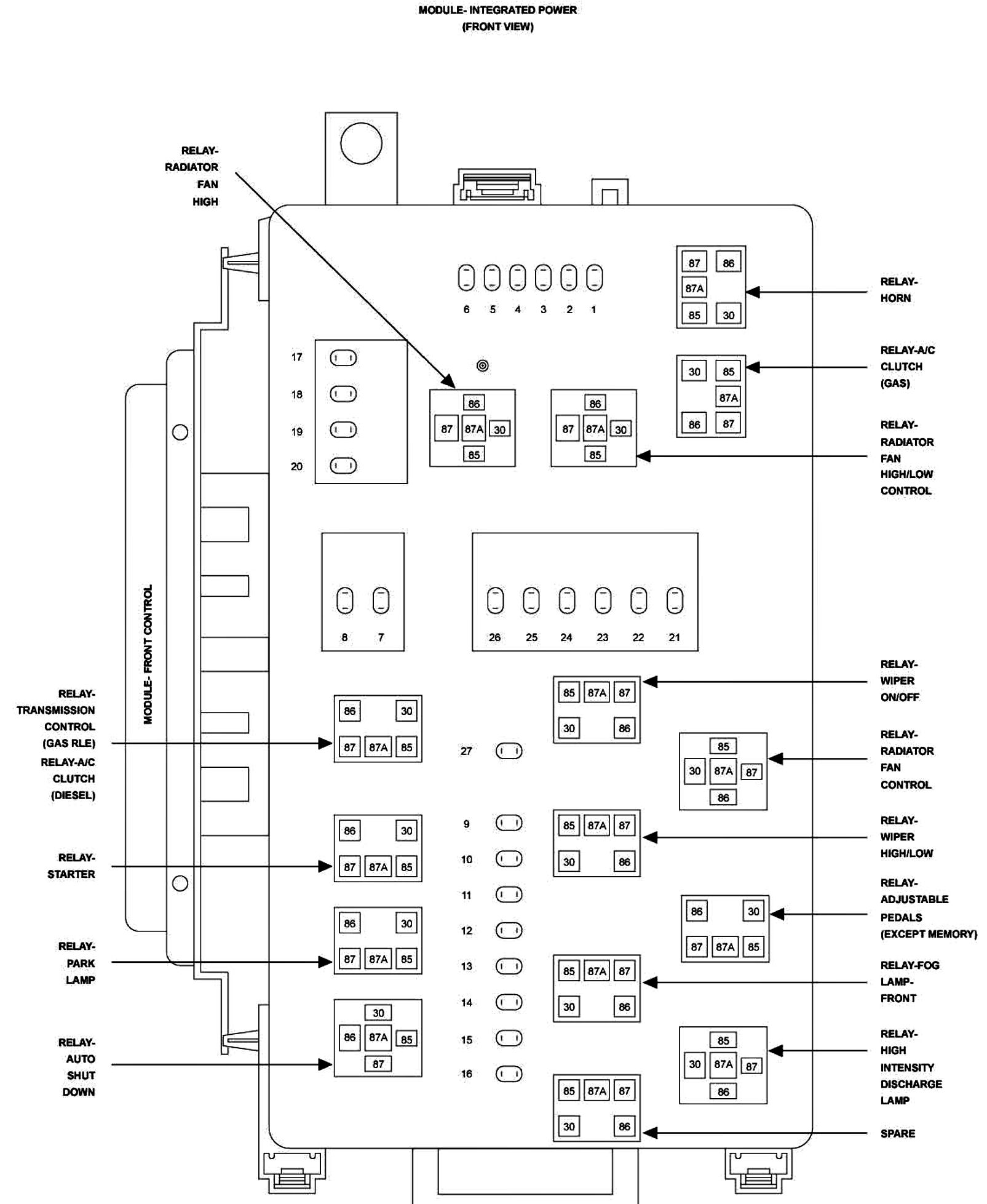

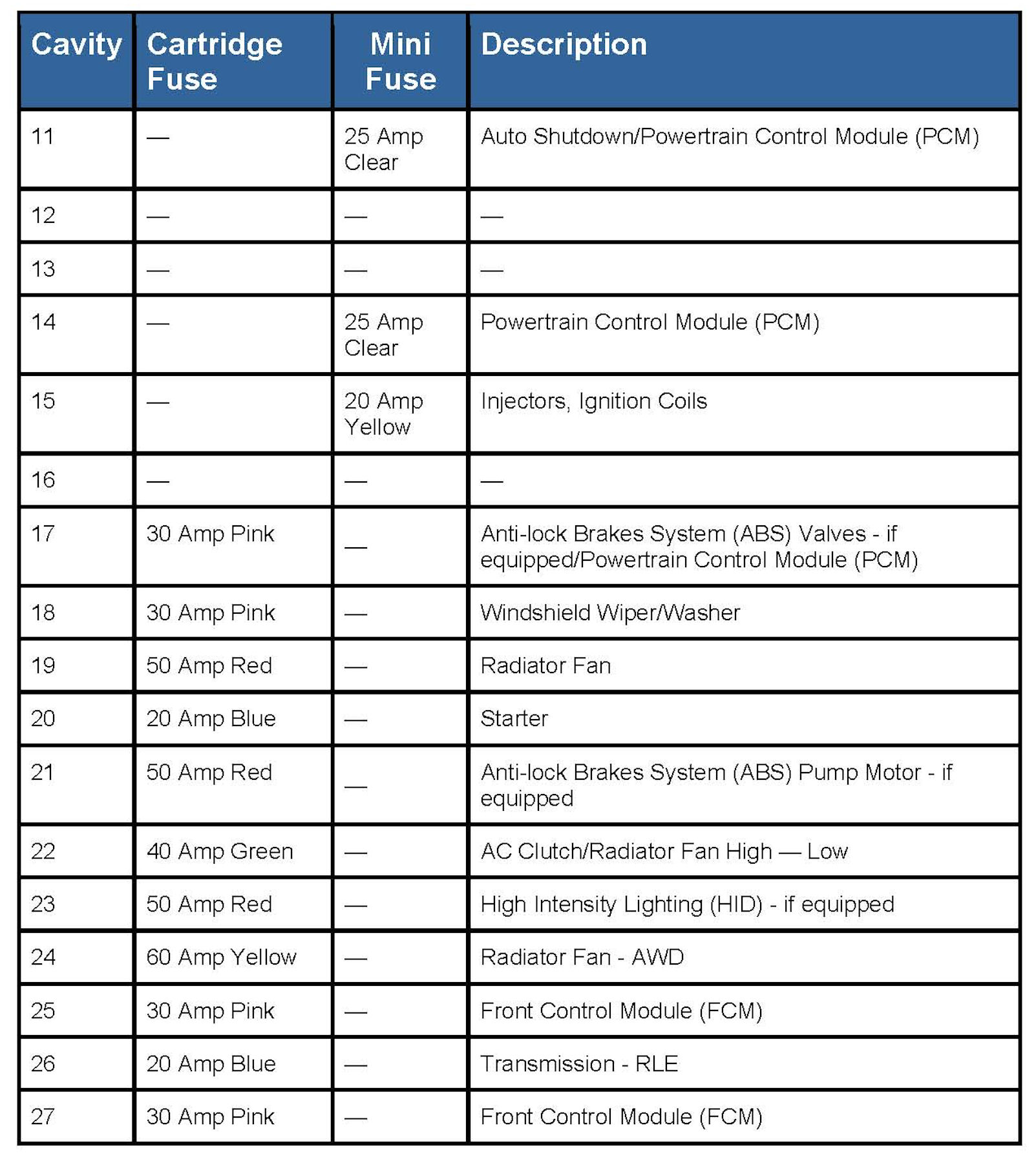

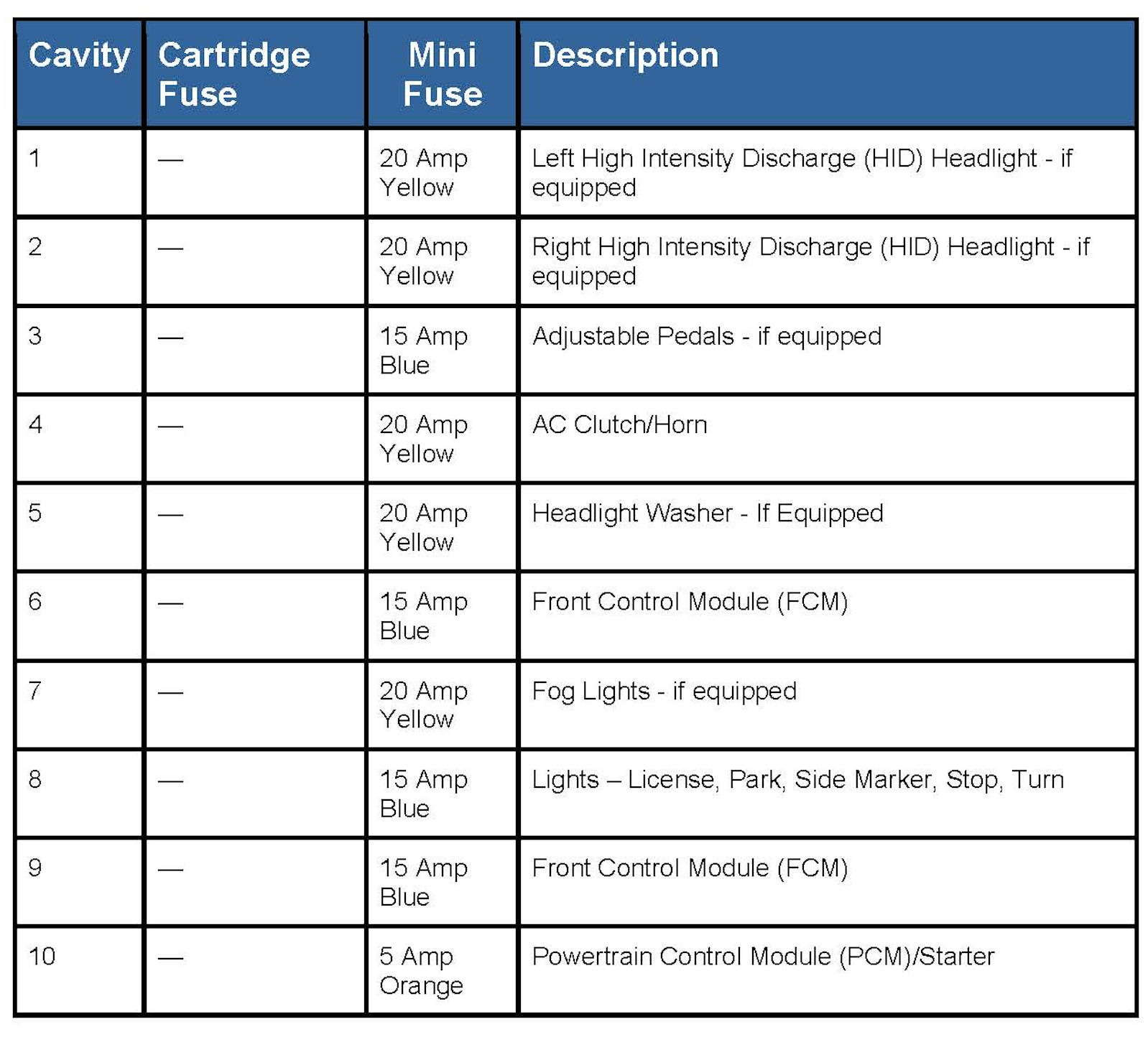

Integrated Power Module (IPM)
