Sensor-Ambient Temperature: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

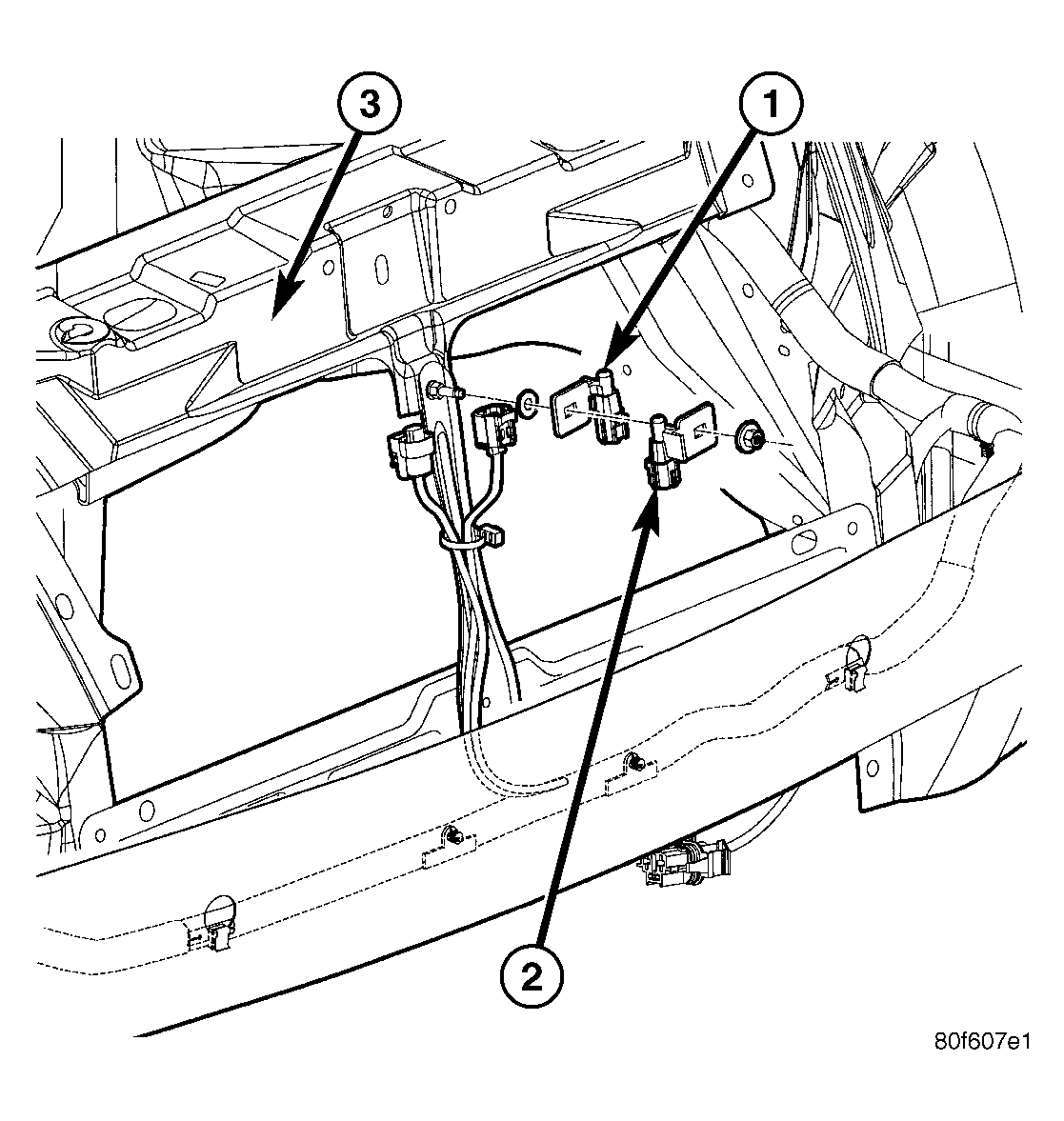

Fig 1: Locating Sensor-Ambient Temperature
GC0043635Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the nut securing the ambient temperature sensor (2) to the radiator support (3).
  2. Connect the electrical connector.
  3. Connect the battery negative cable.
  4. Close hood.
