Coolant Level Check - Routine

NOTE: Do not remove pressure cap for routine coolant level inspections.

The coolant bottle provides a quick visual method for determining the coolant level without removing the pressure cap. With the engine cold and not running , simply observe the level of the coolant in the coolant recovery container (2.0L/2.4L) or the coolant pressure container (2.7L). See Fig 1 and Fig 2. The level should be between the MIN and MAX marks.

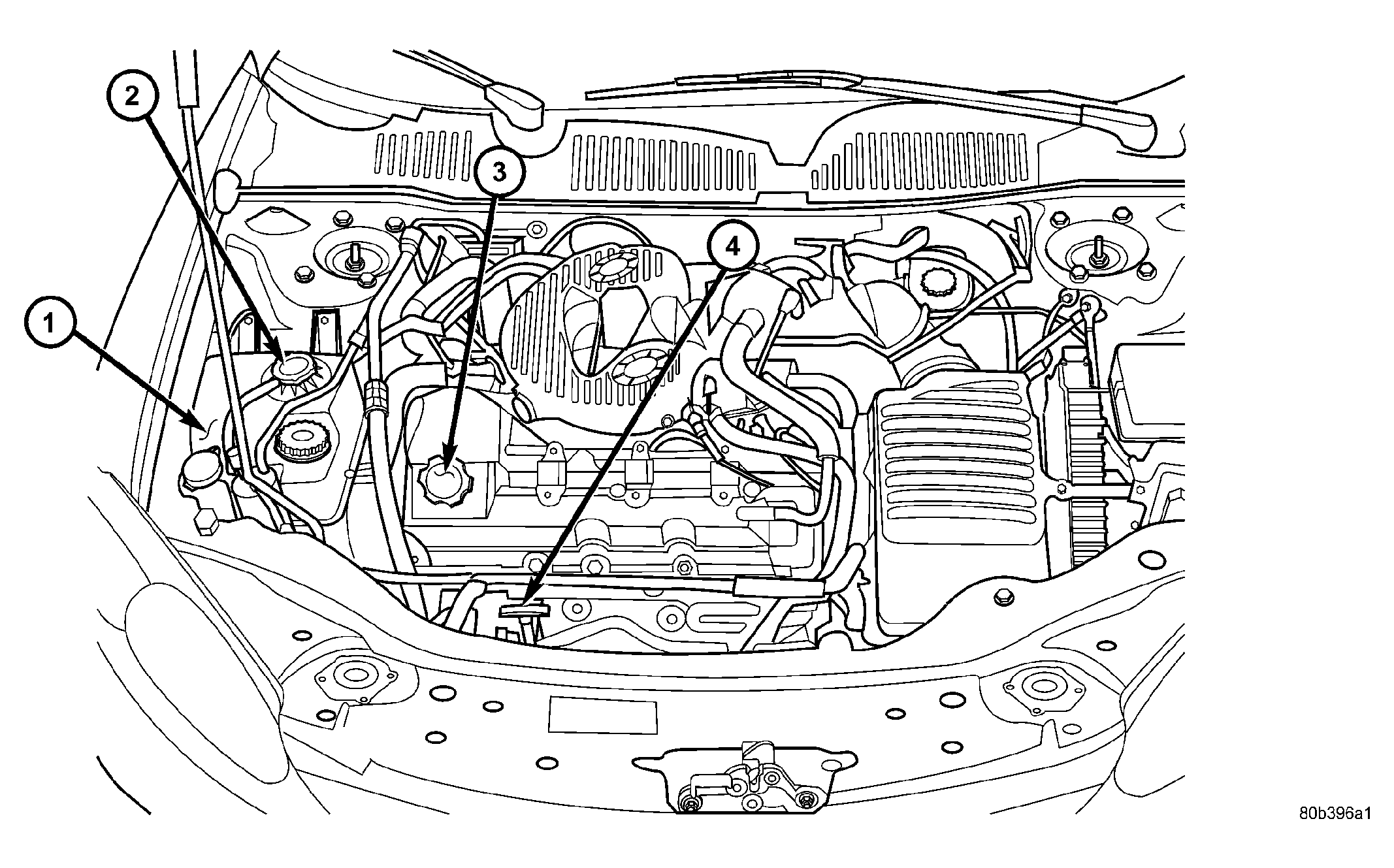

Fig 1: Fluid Level Check - 2.0/2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - COOLANT RECOVERY CONTAINER

2 - COOLANT PRESSURE CAP

3 - ENGINE OIL FILL

4 - ENGINE OIL DIPSTICK

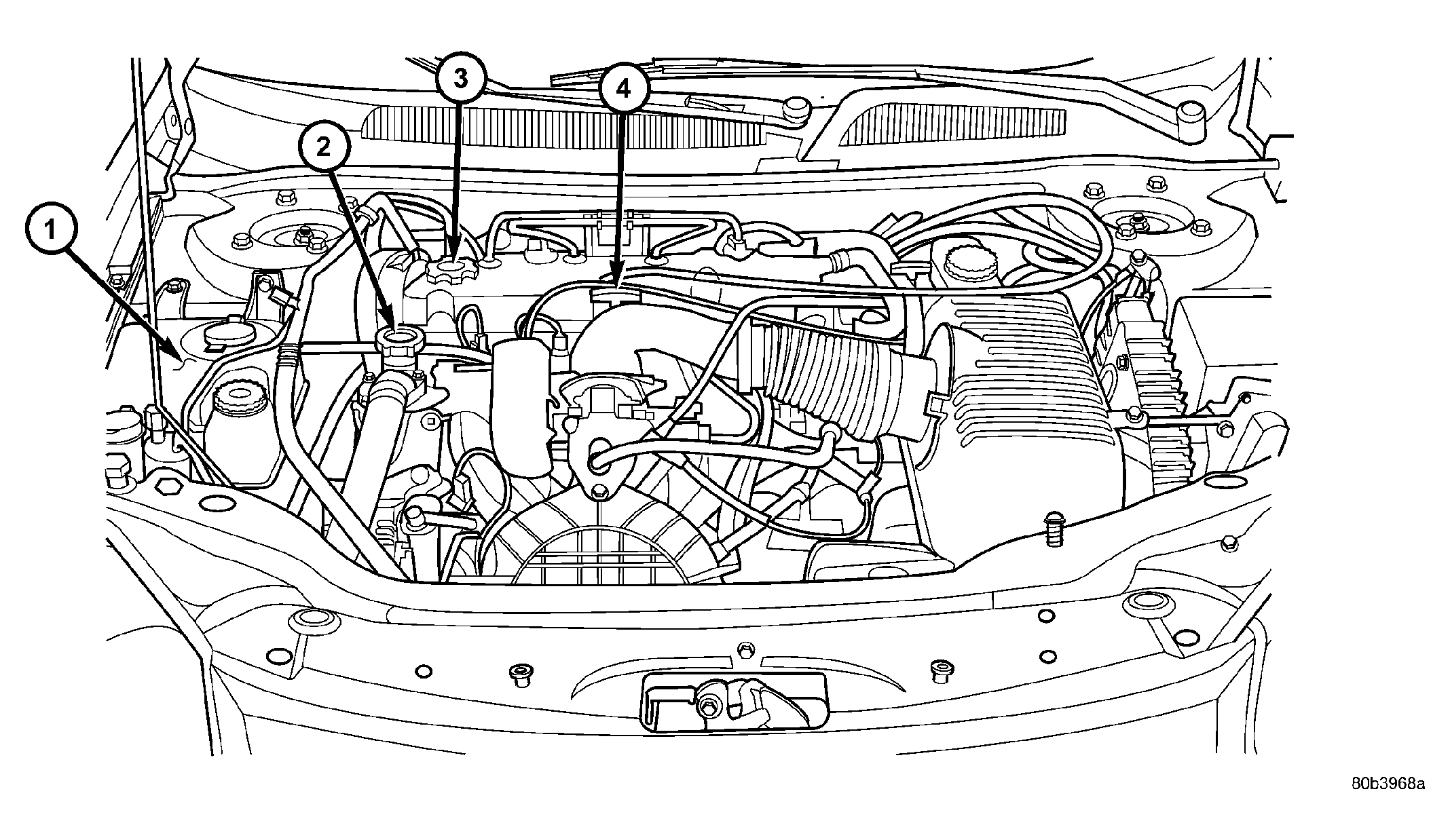

Fig 2: Fluid Level Check - 2.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - COOLANT PRESSURE CONTAINER

2 - COOLANT PRESSURE CAP

3 - ENGINE OIL FILL

4 - ENGINE OIL DIPSTICK
