Home >> Chrysler >> 2006 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Maintenance >> Timing Component Alignment Marks >> Locations

Timing Component Alignment Marks: Locations

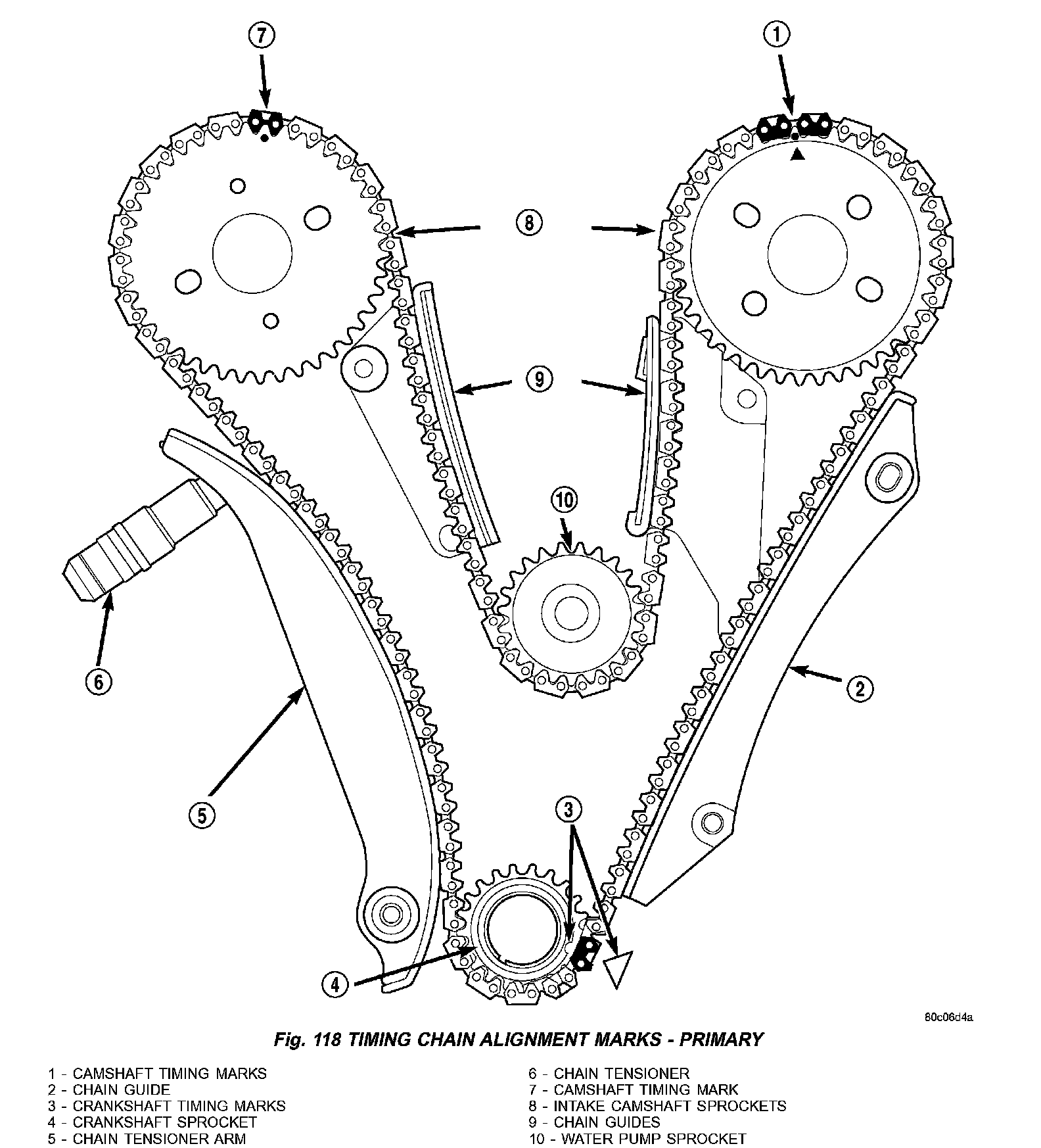

Fig. 118:
