Compass/Mini-Trip Computer Inoperative

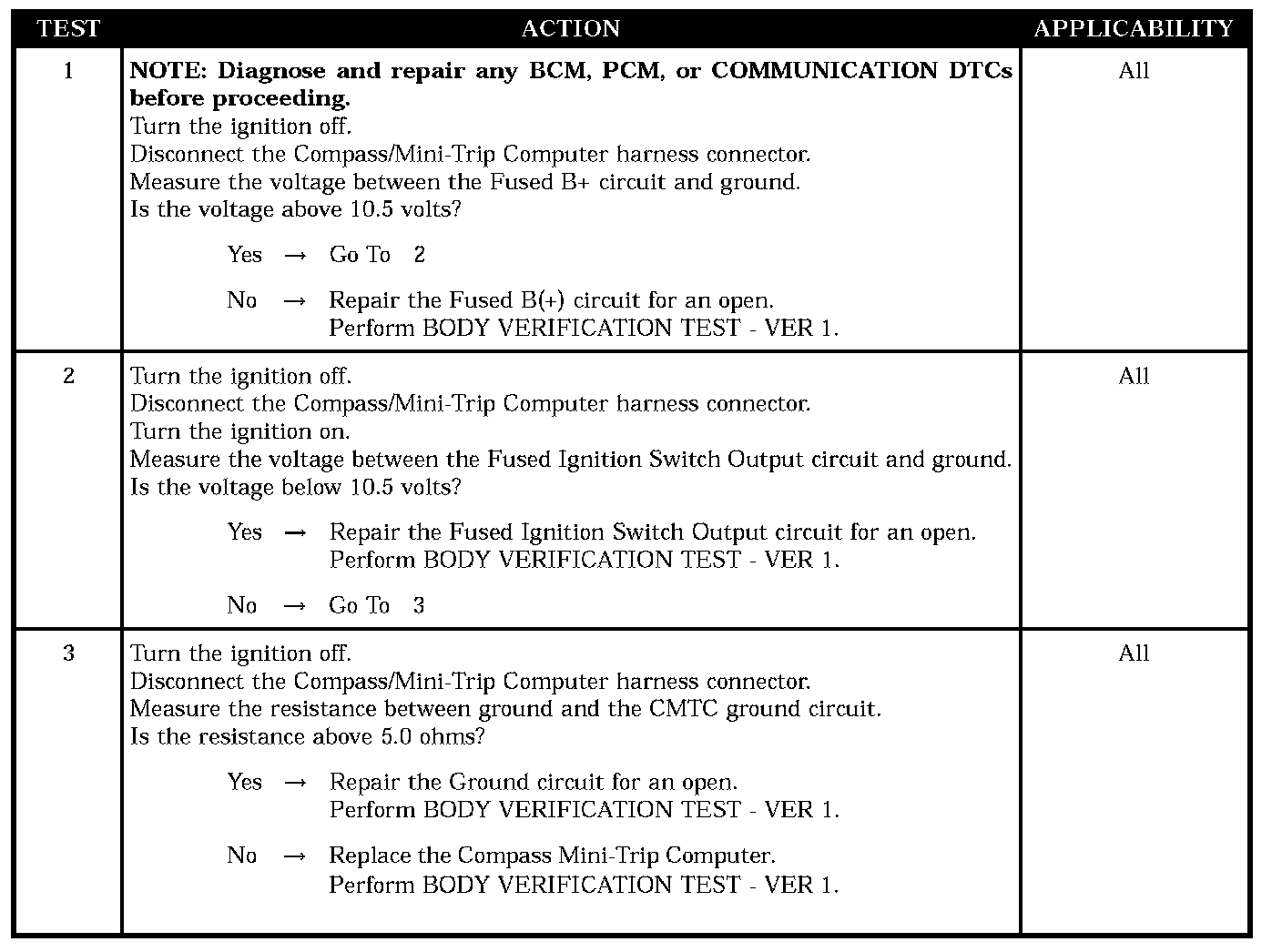

Test 1 - Test 3:






SYMPTOM
COMPASS/MINI-TRIP COMPUTER INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit open
- Fused ignition switch output circuit open
- Ground circuit open
- Compass mini-trip computer
