Chrysler
>>
2006
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
Occupant Restraint Controller
Occupant Restraint Controller

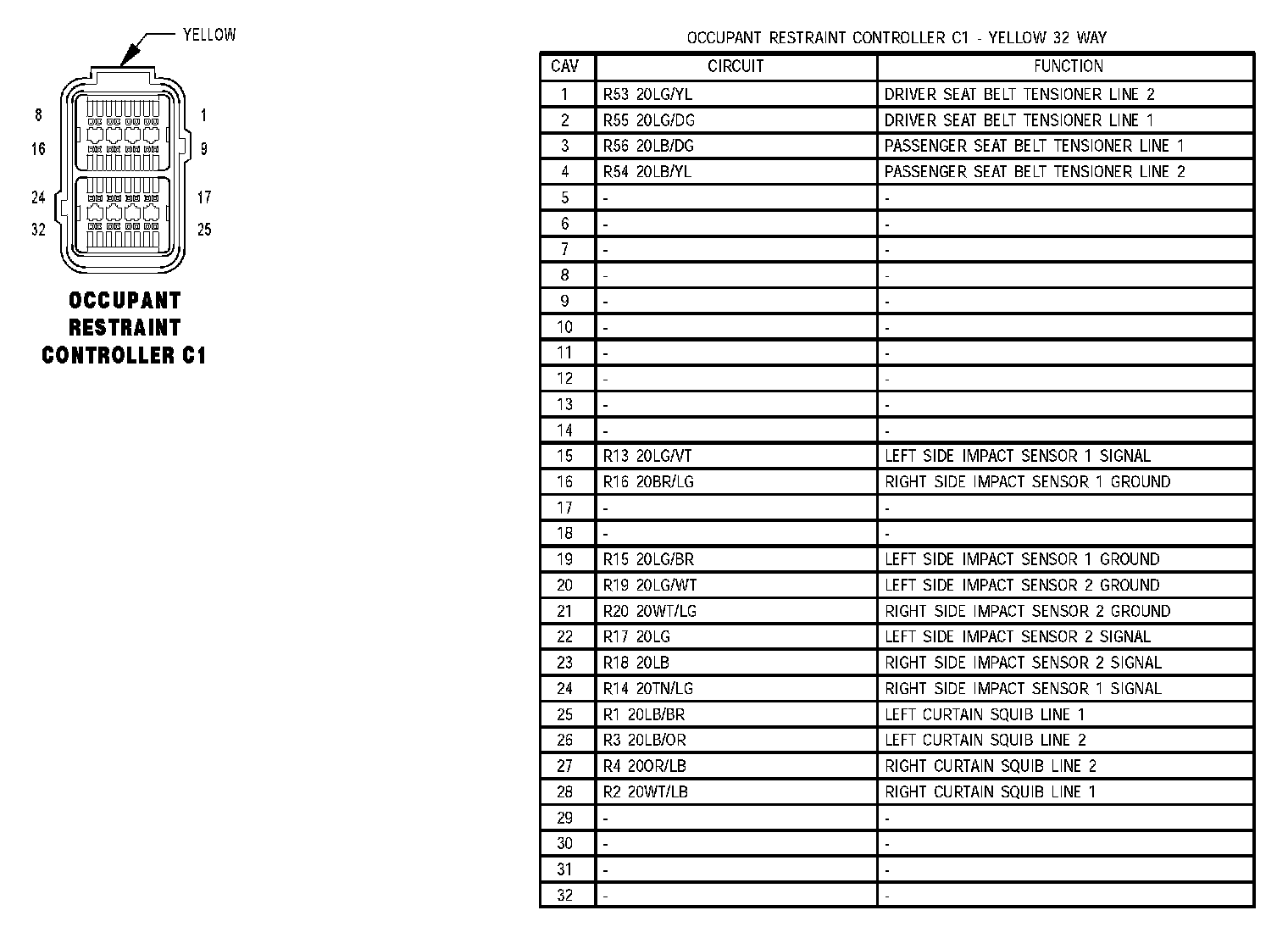

Occupant Restraint Controller C1:

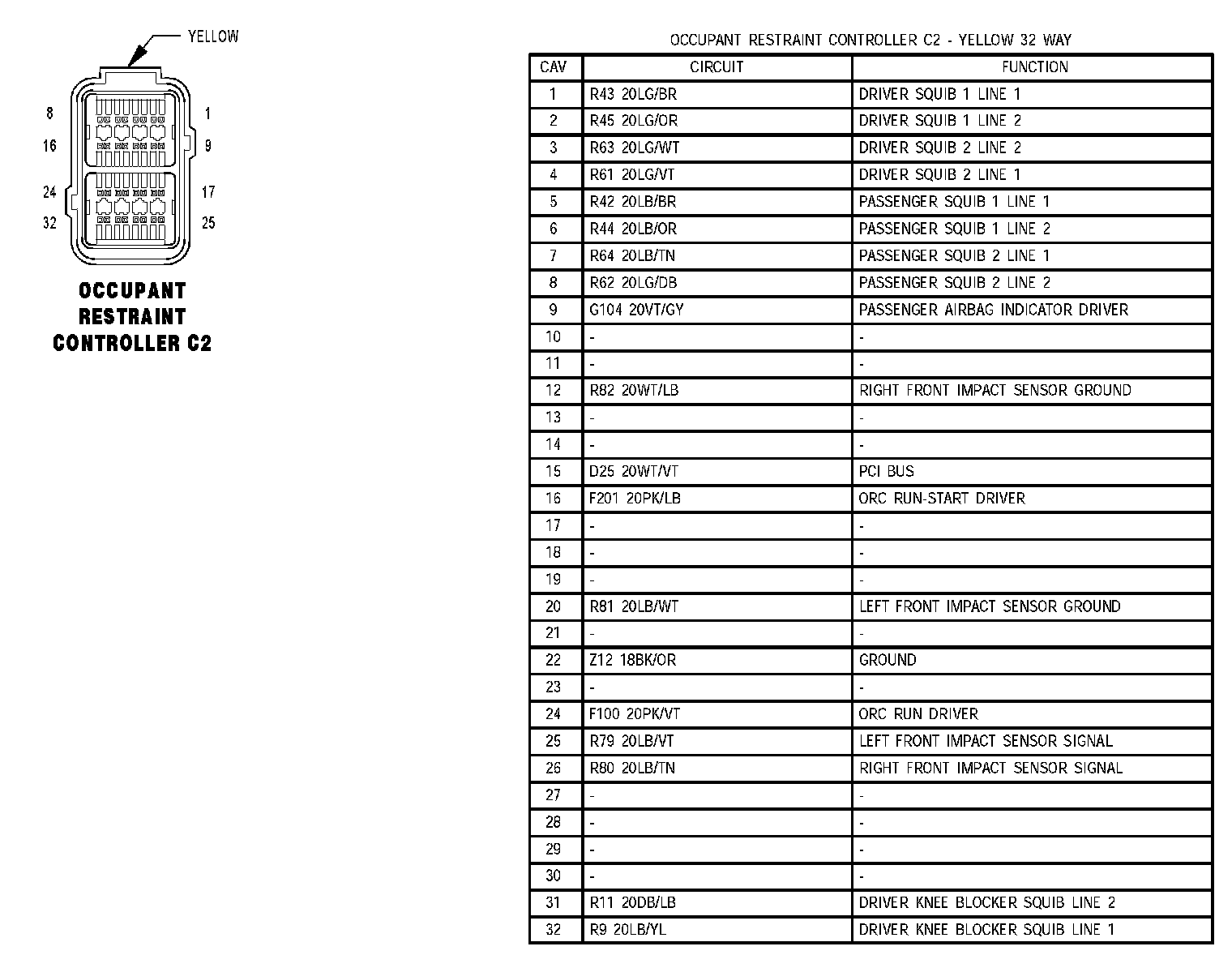

Occupant Restraint Controller C2:
