41TE Automatic Transaxle

SPECIFICATIONS - 41TE TRANSAXLE

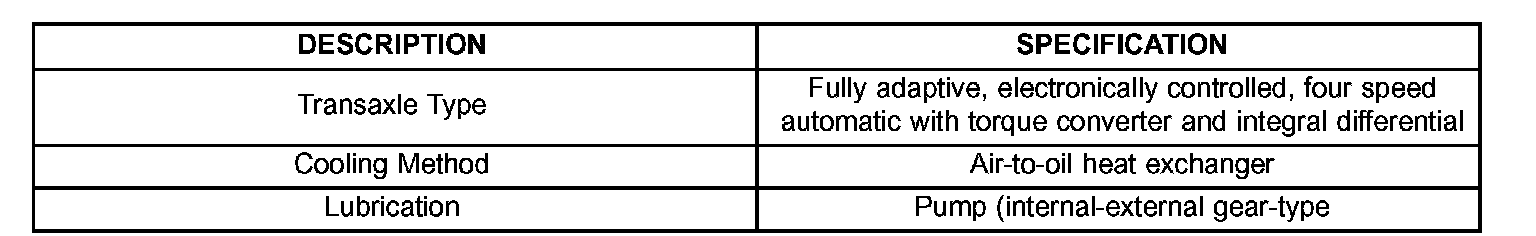

GENERAL SPECIFICATIONS:

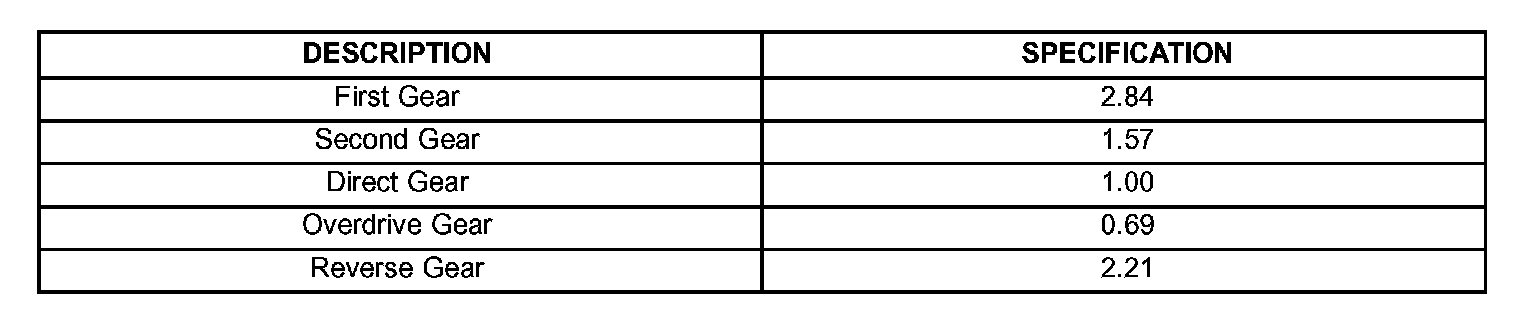

GEAR RATIOS:

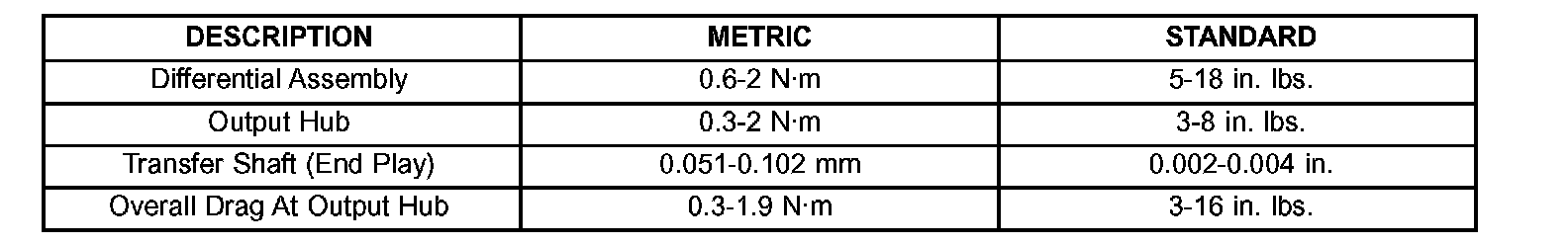

BEARING SETTINGS (END PLAY & TURNING TORQUE):

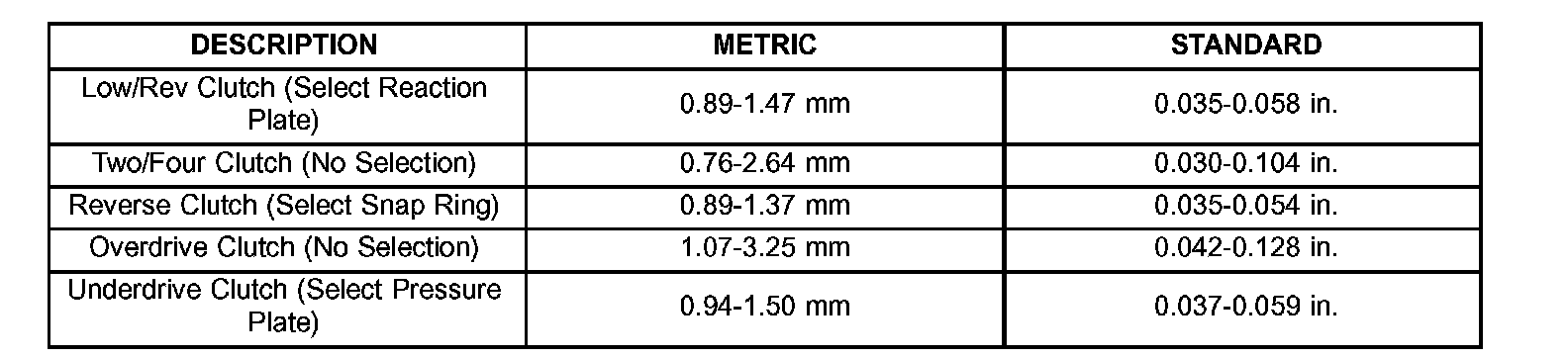

CLUTCH CLEARANCES:

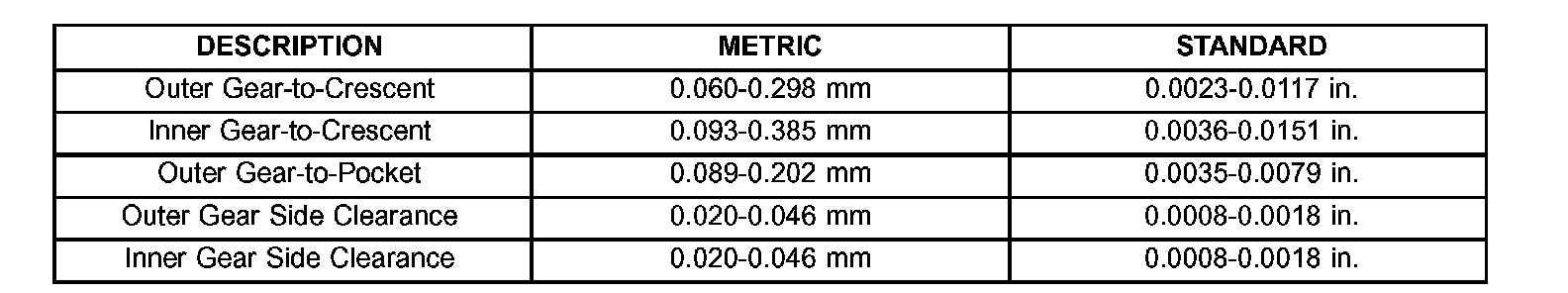

OIL PUMP CLEARANCES:

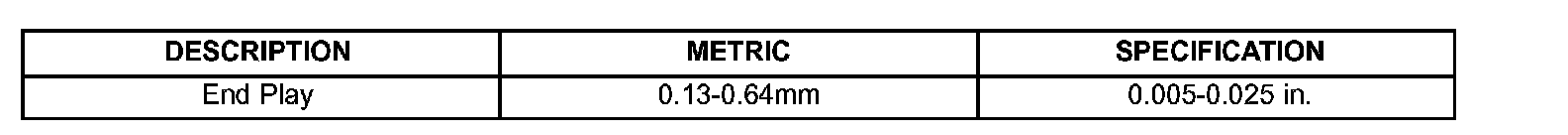

INPUT SHAFT:

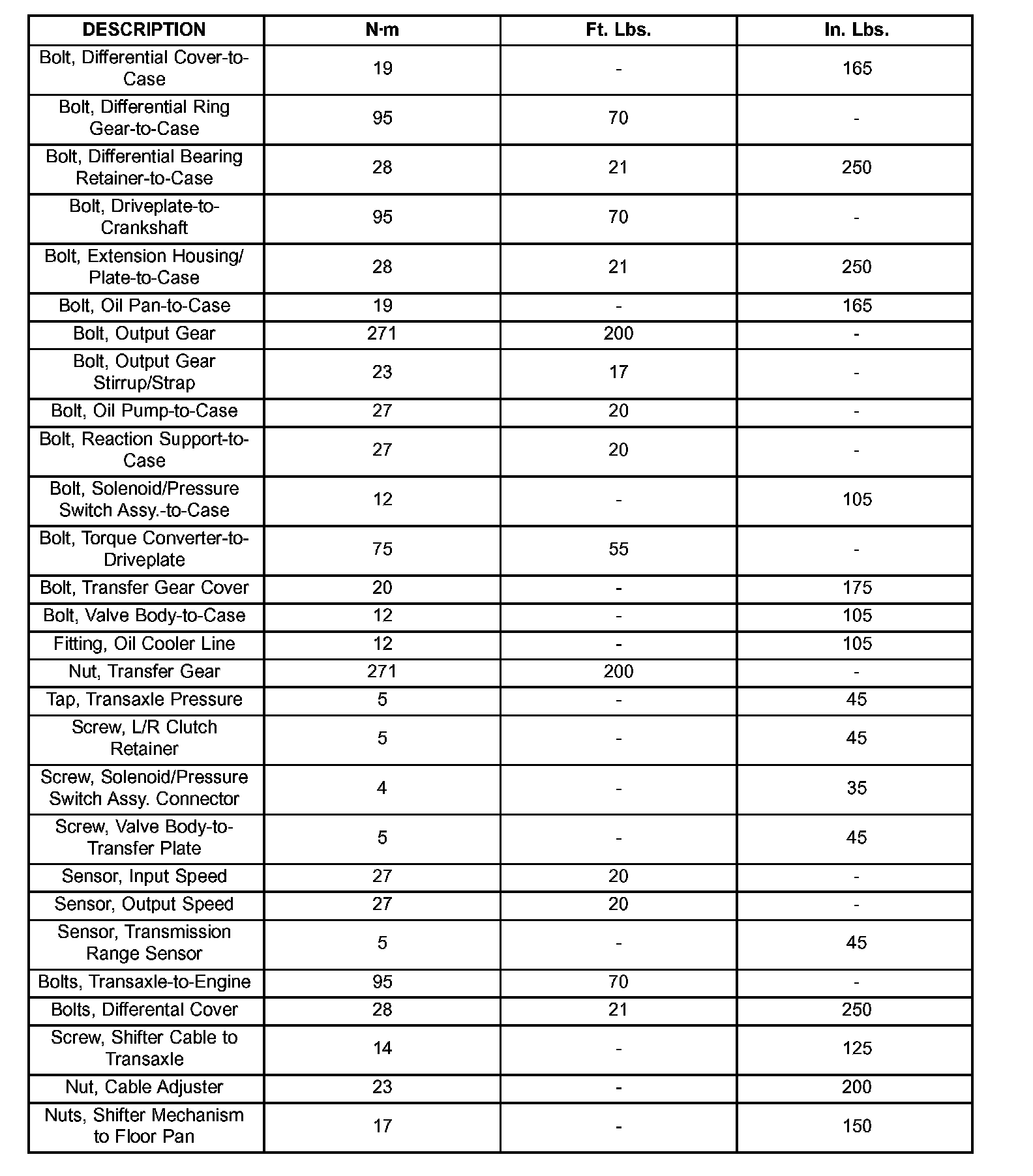

TORQUE SPECIFICATIONS:
