Wheel Speed Sensor
Wheel Speed Sensor

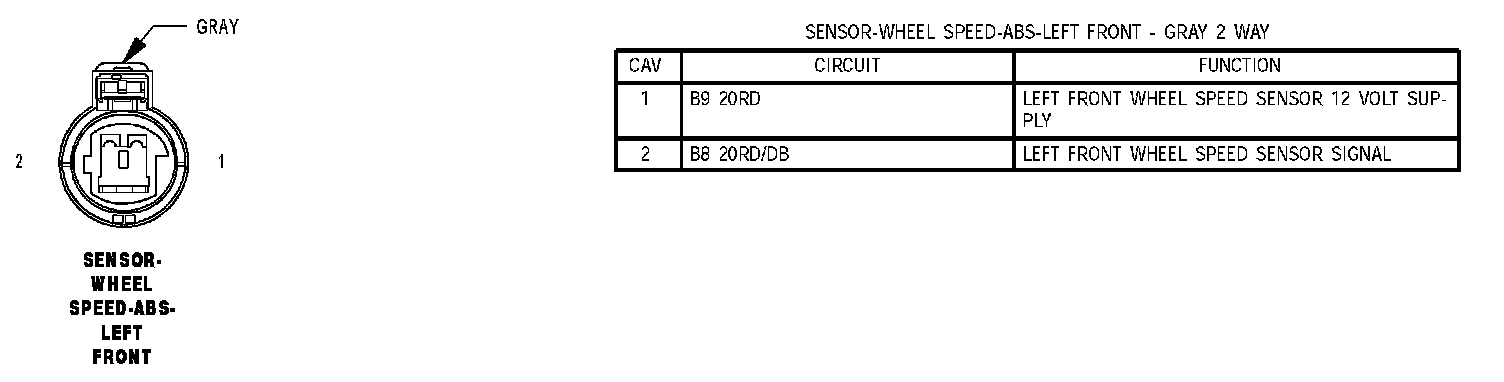

Sensor Wheel Speed ABS Left Front:

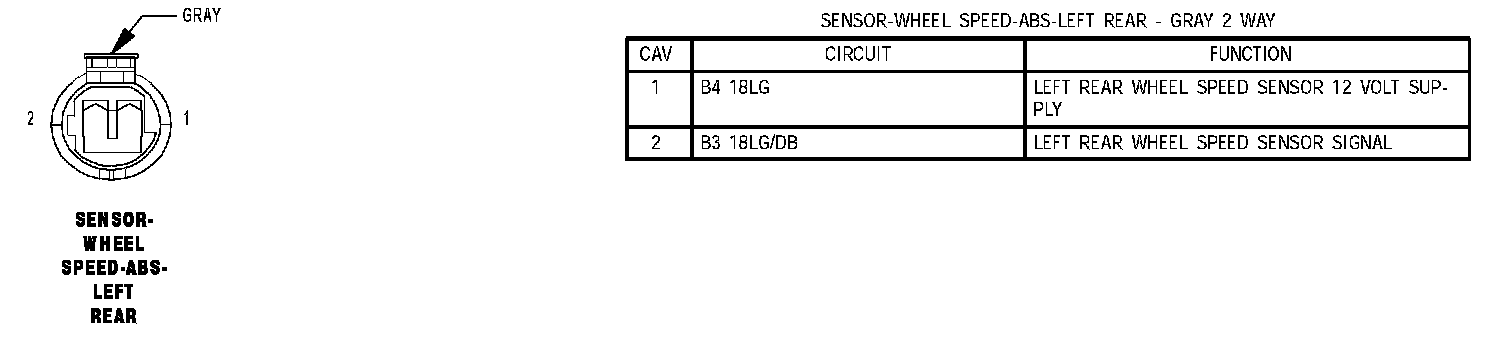

Sensor Wheel Speed ABS Left Rear:

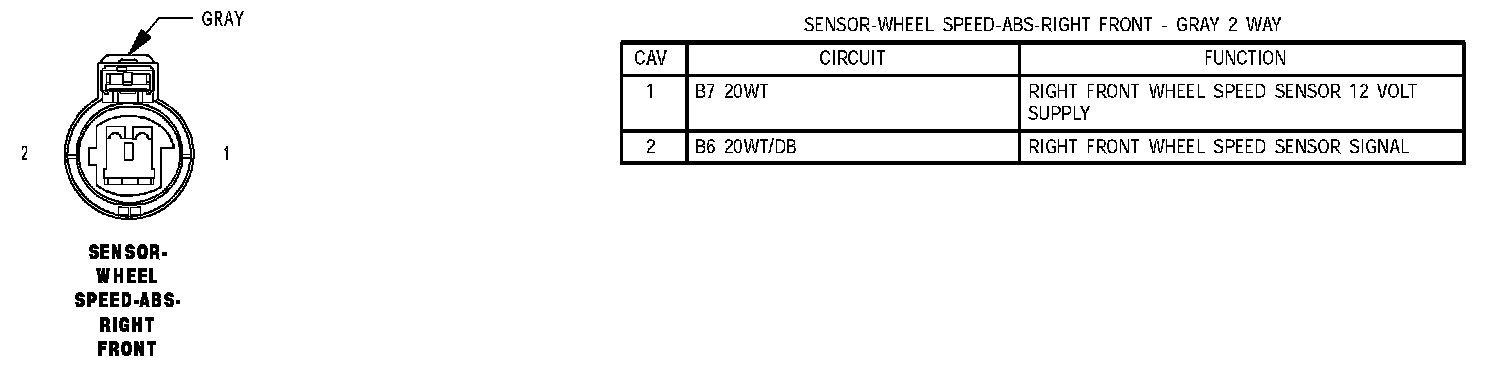

Sensor Wheel Speed ABS Right Front:

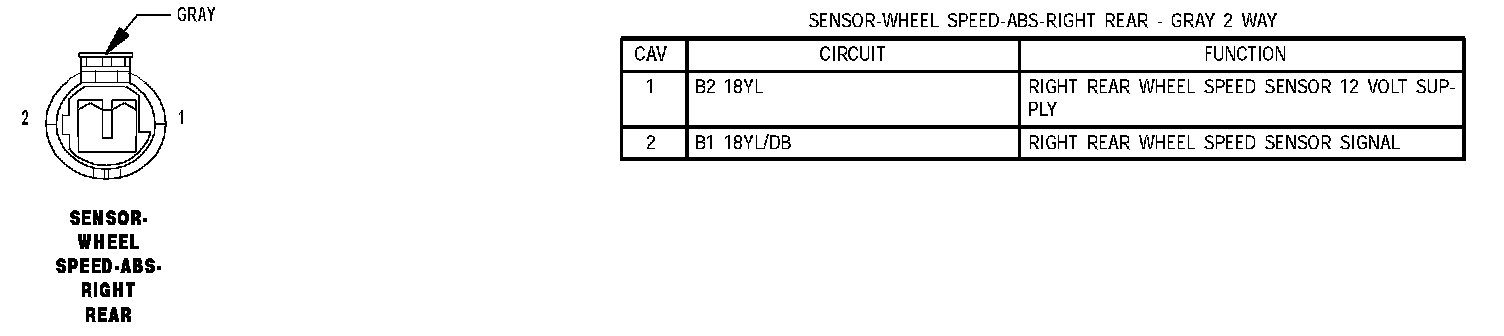

Sensor Wheel Speed ABS Right Rear:
