Power Window Switch
Power Window Switch

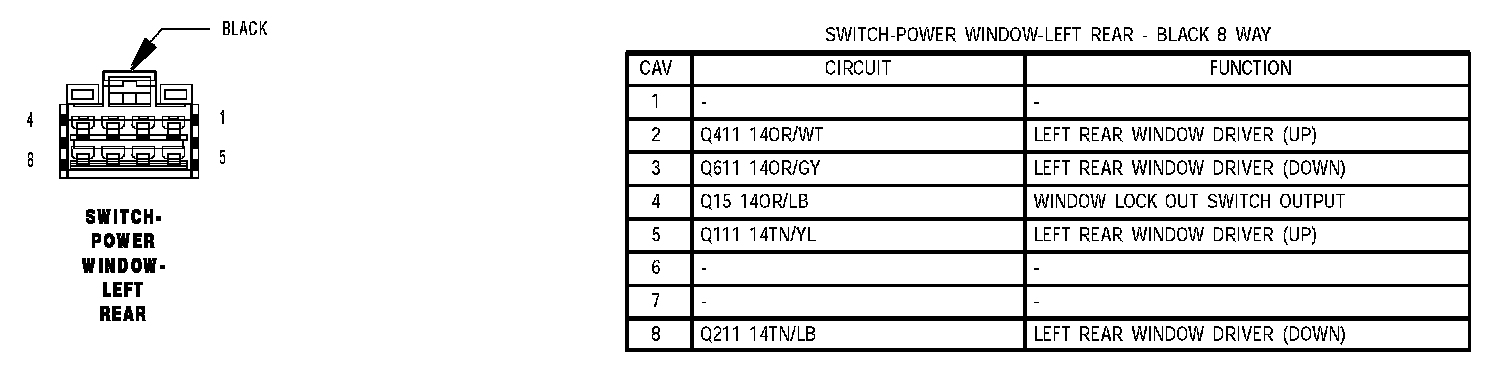

Switch Power Window Left Rear:

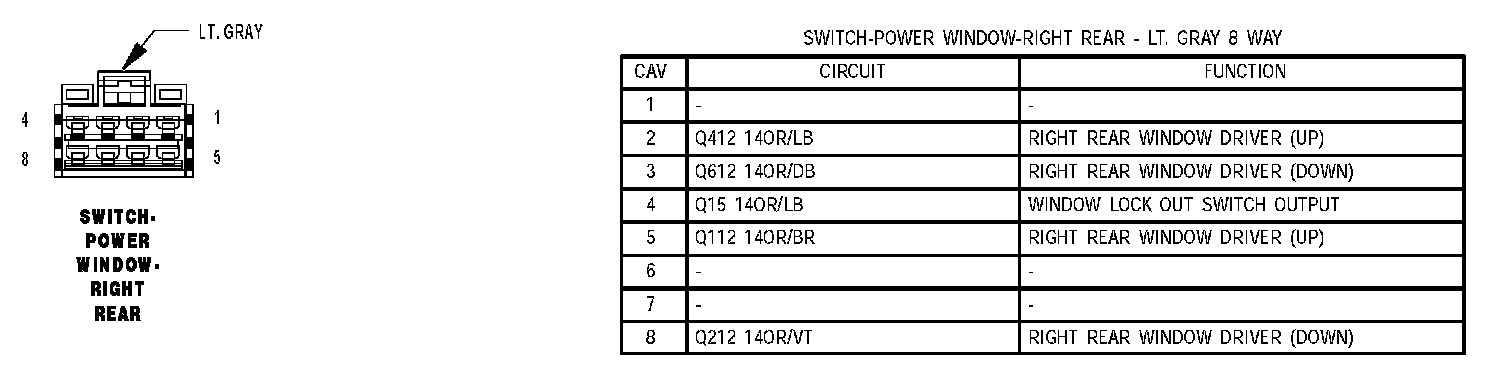

Switch Power Window Right Rear:

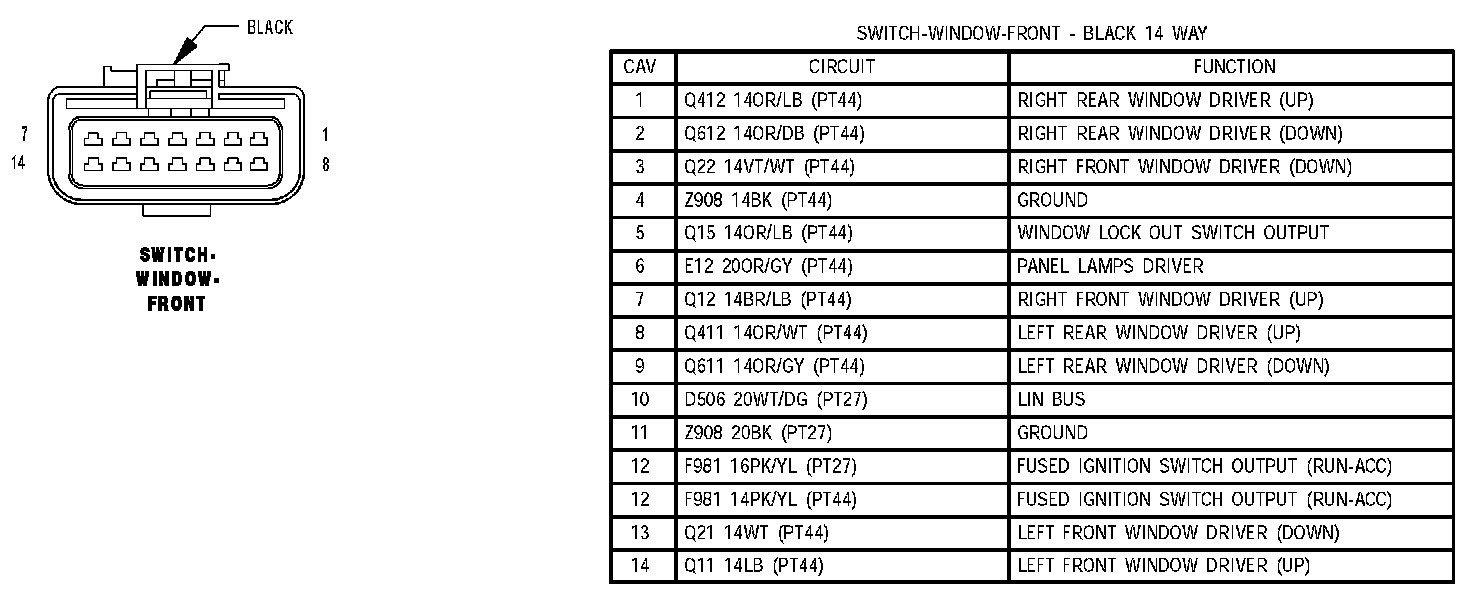

Switch Window Front:
