Impact Sensor
Impact Sensor

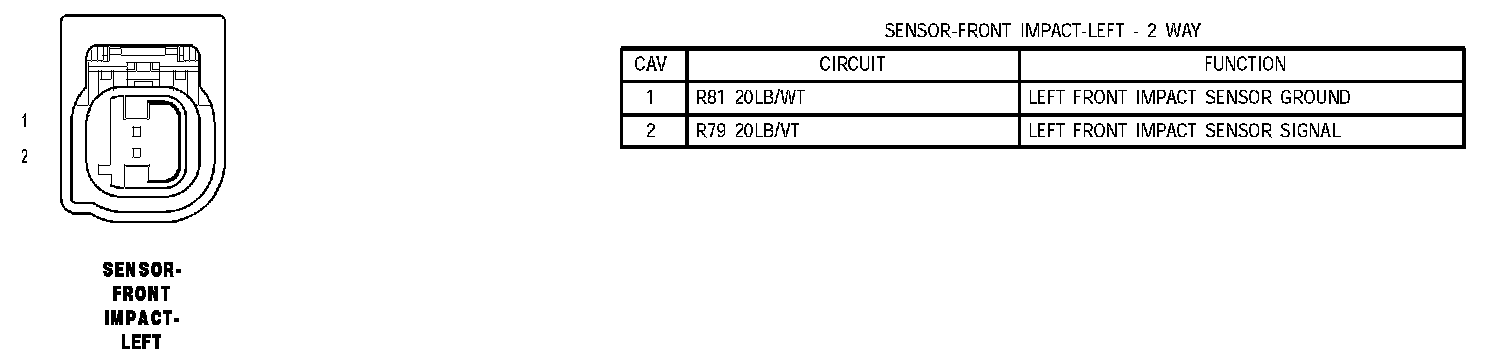

Sensor Front Impact Left:

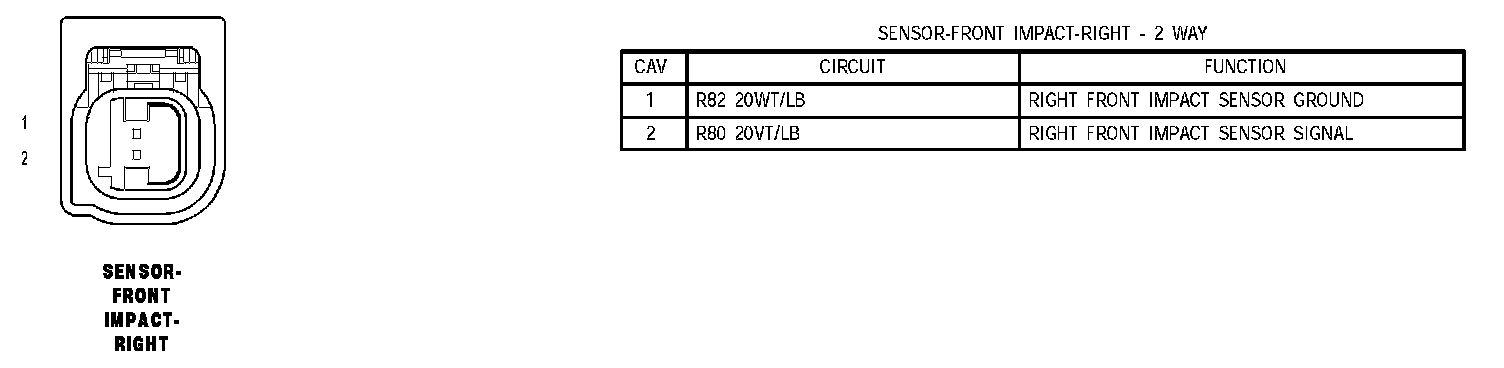

Sensor Front Impact Right:

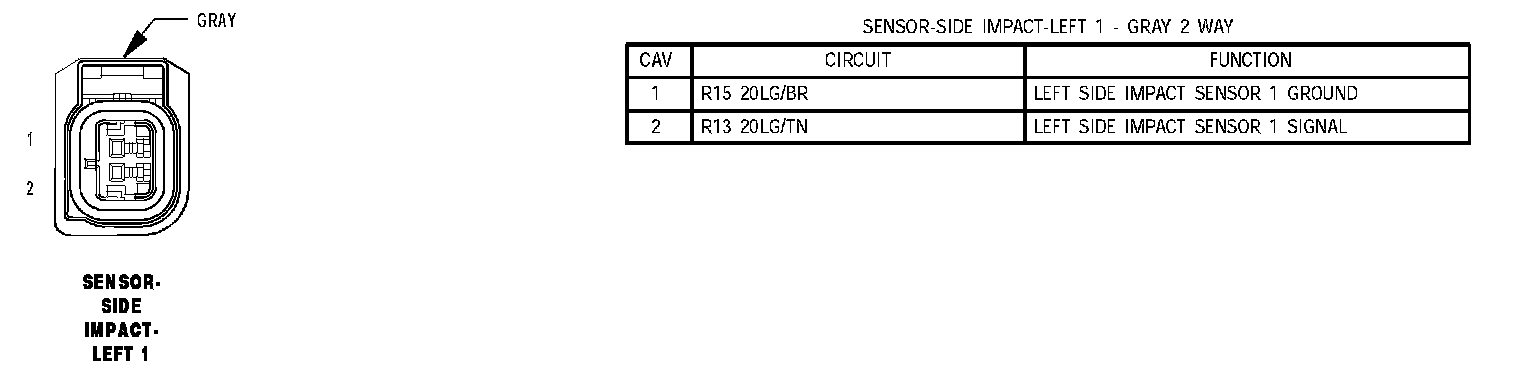

Sensor Side Impact Left 1:

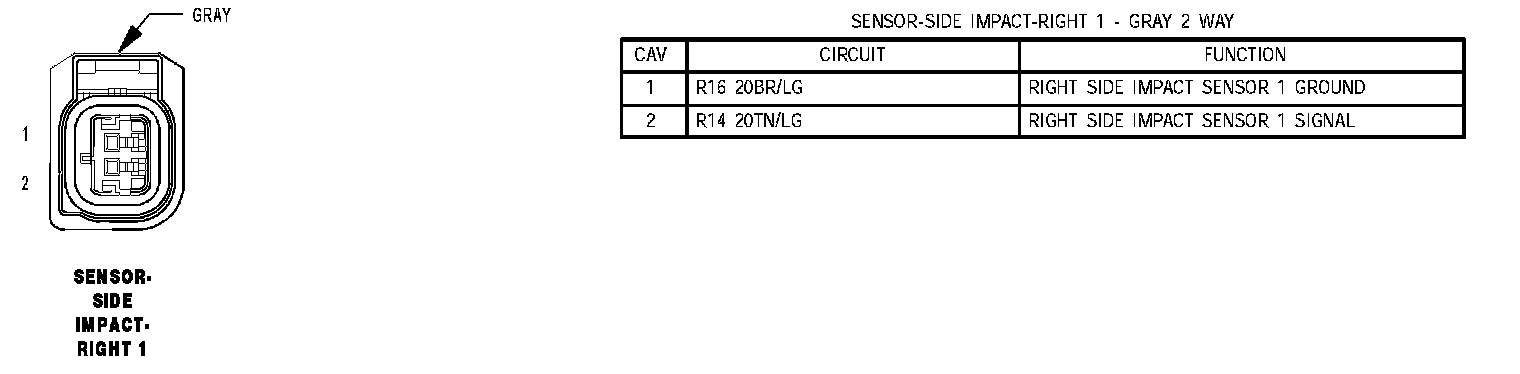

Sensor Side Impact Right 1:
