Home >> Chrysler >> 2006 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

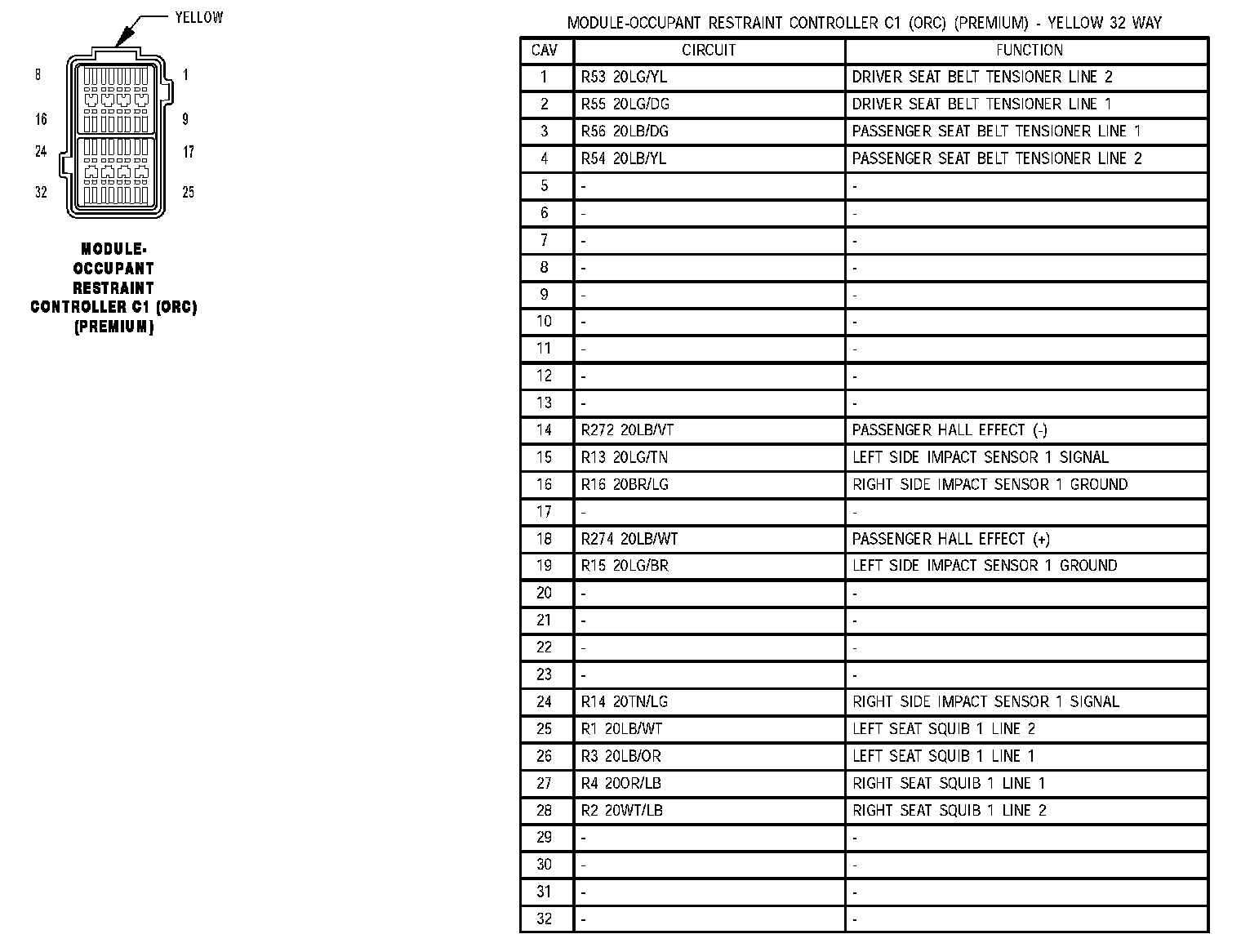

Module Occupant Restraint Controller C1 (ORC) (Premium):

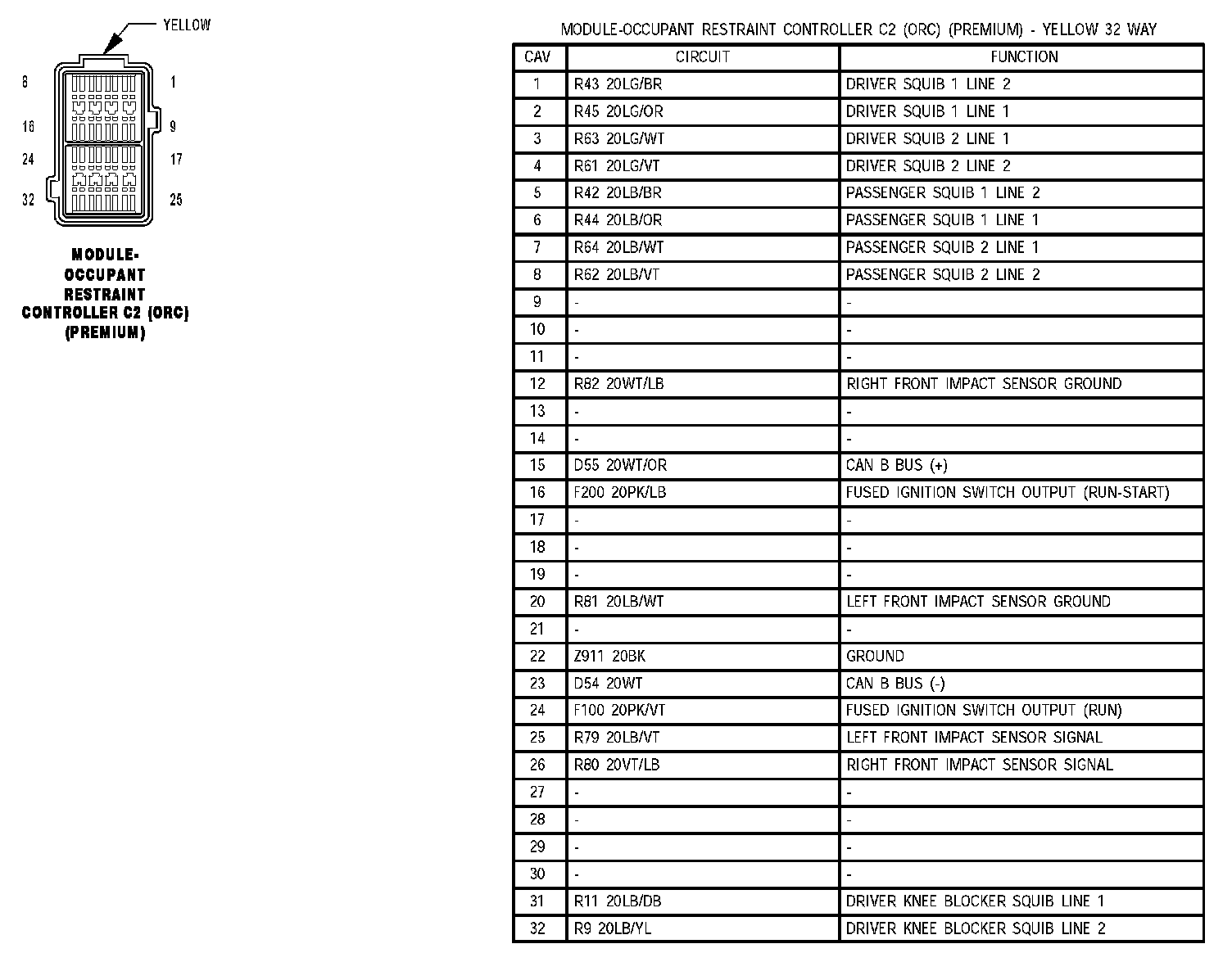

Module Occupant Restraint Controller C2 (ORC) (Premium):
