Home >> Chrysler >> 2006 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Accessories and Optional Equipment >> Central Control Module >> Locations

Central Control Module: Locations

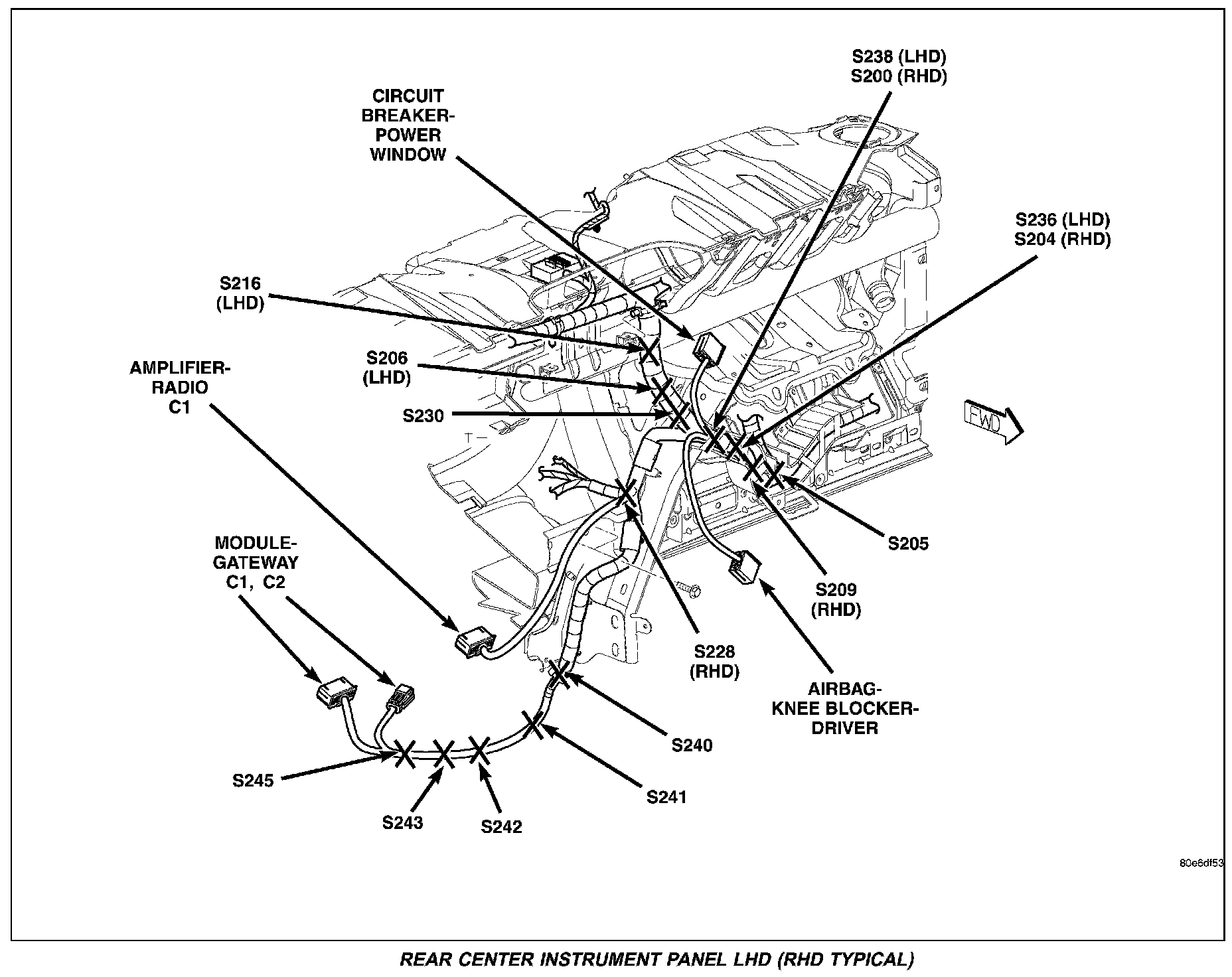

Rear Center Instrument Panel LHD (RHD Typical):
