Home >> Chrysler >> 2006 >> 300 V8-5.7L VIN H >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Locations

Power Seat Control Module: Locations

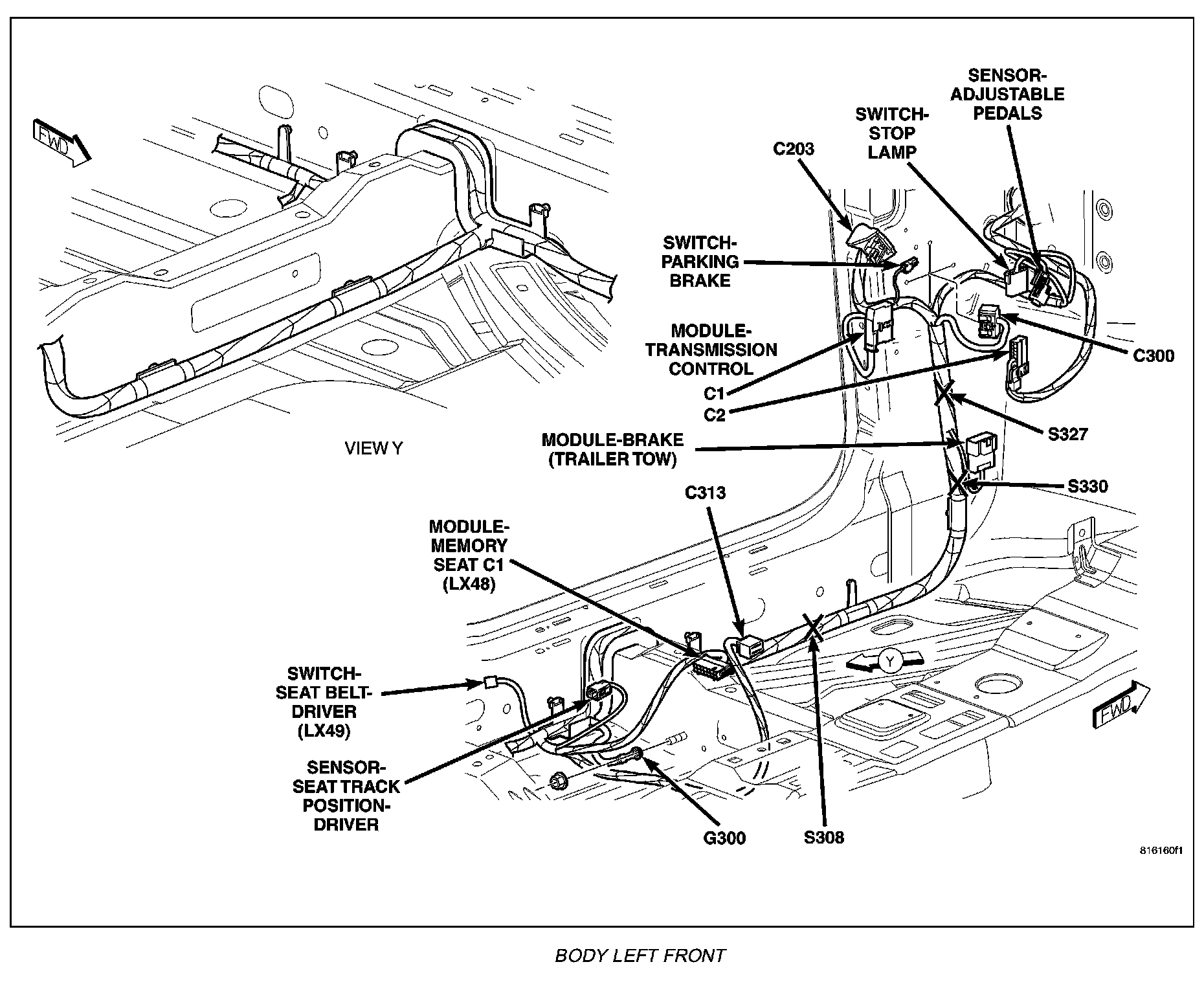

Body Left Front:

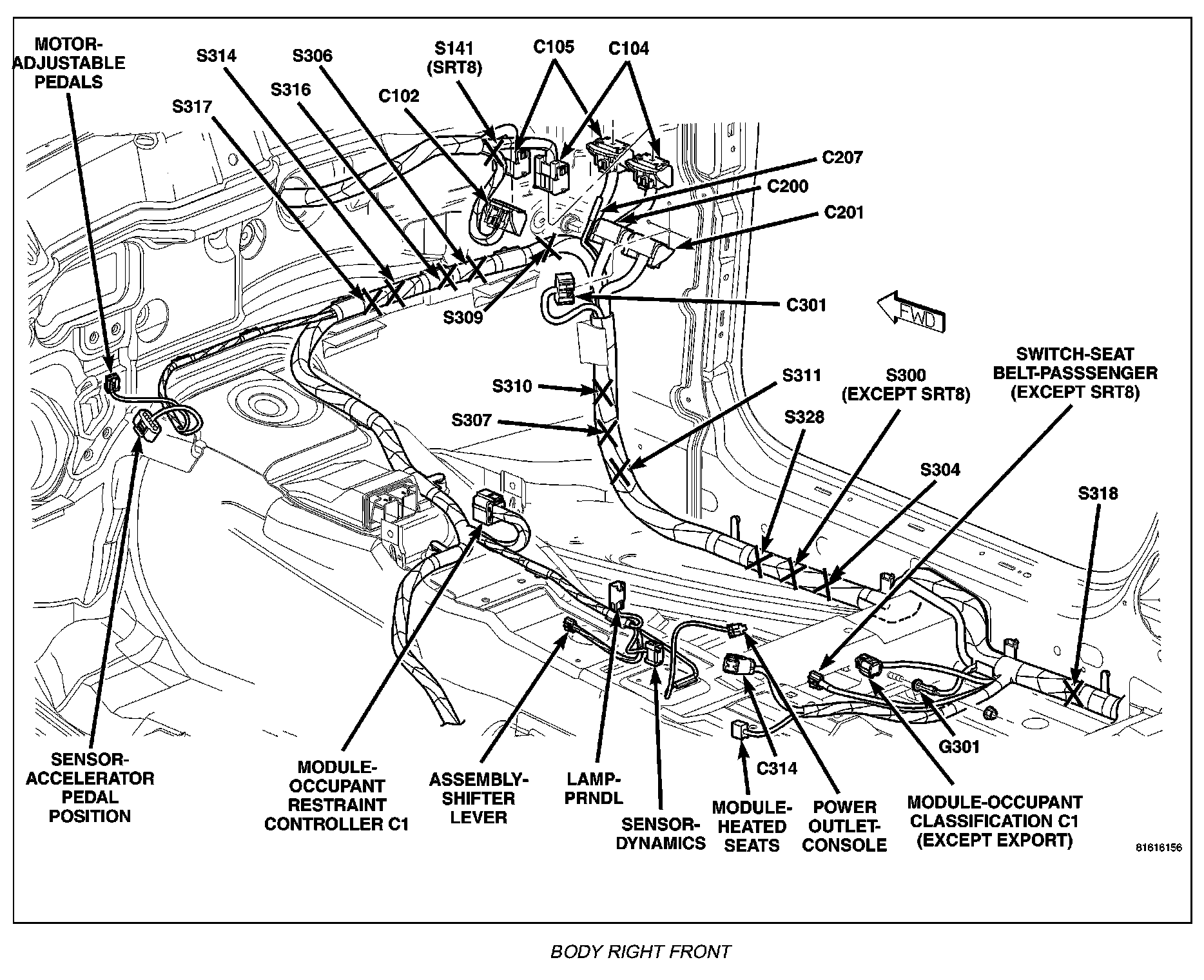

Body Right Front:

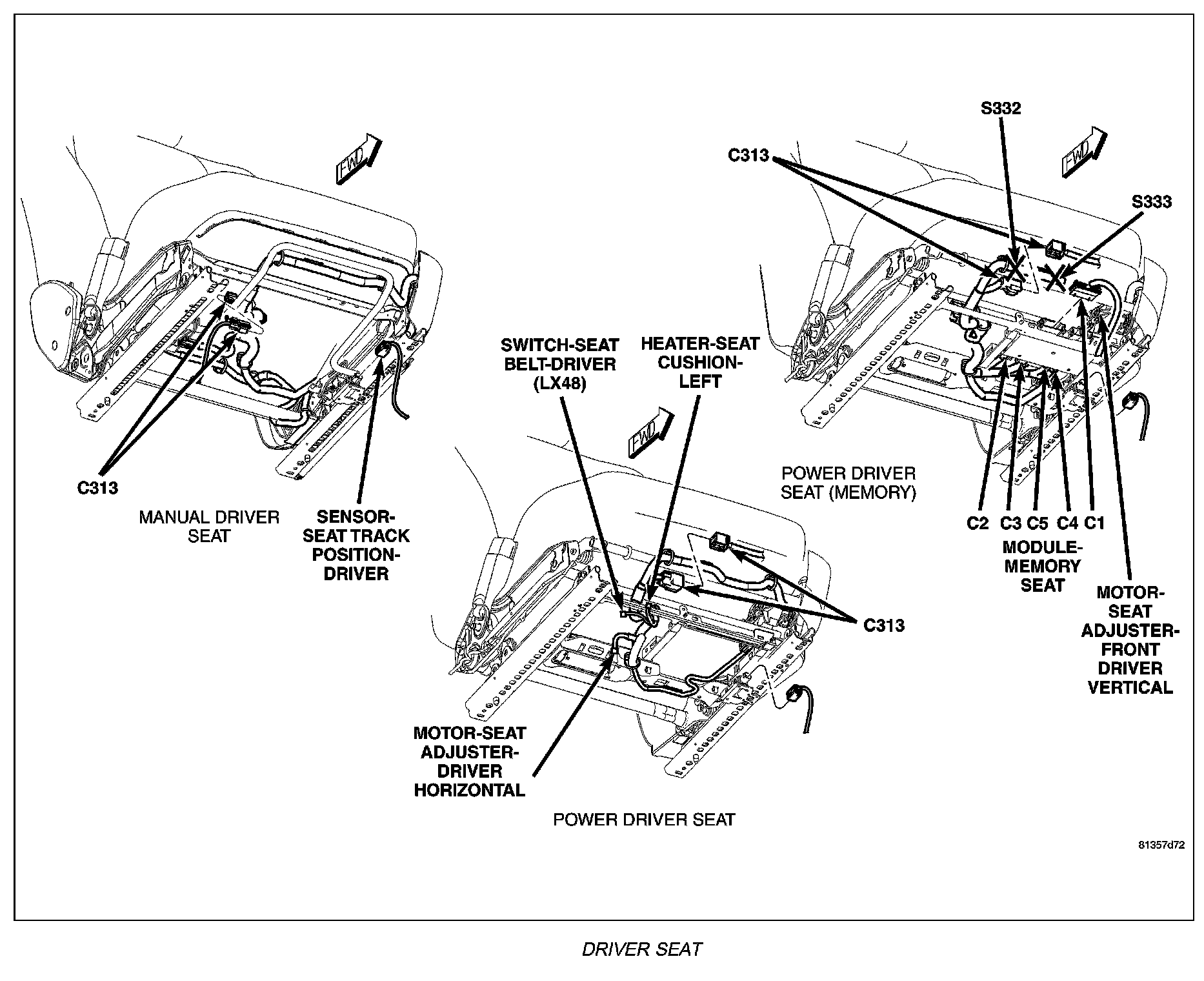

Driver Seat:
