Driver Door Ajar Circuit Open

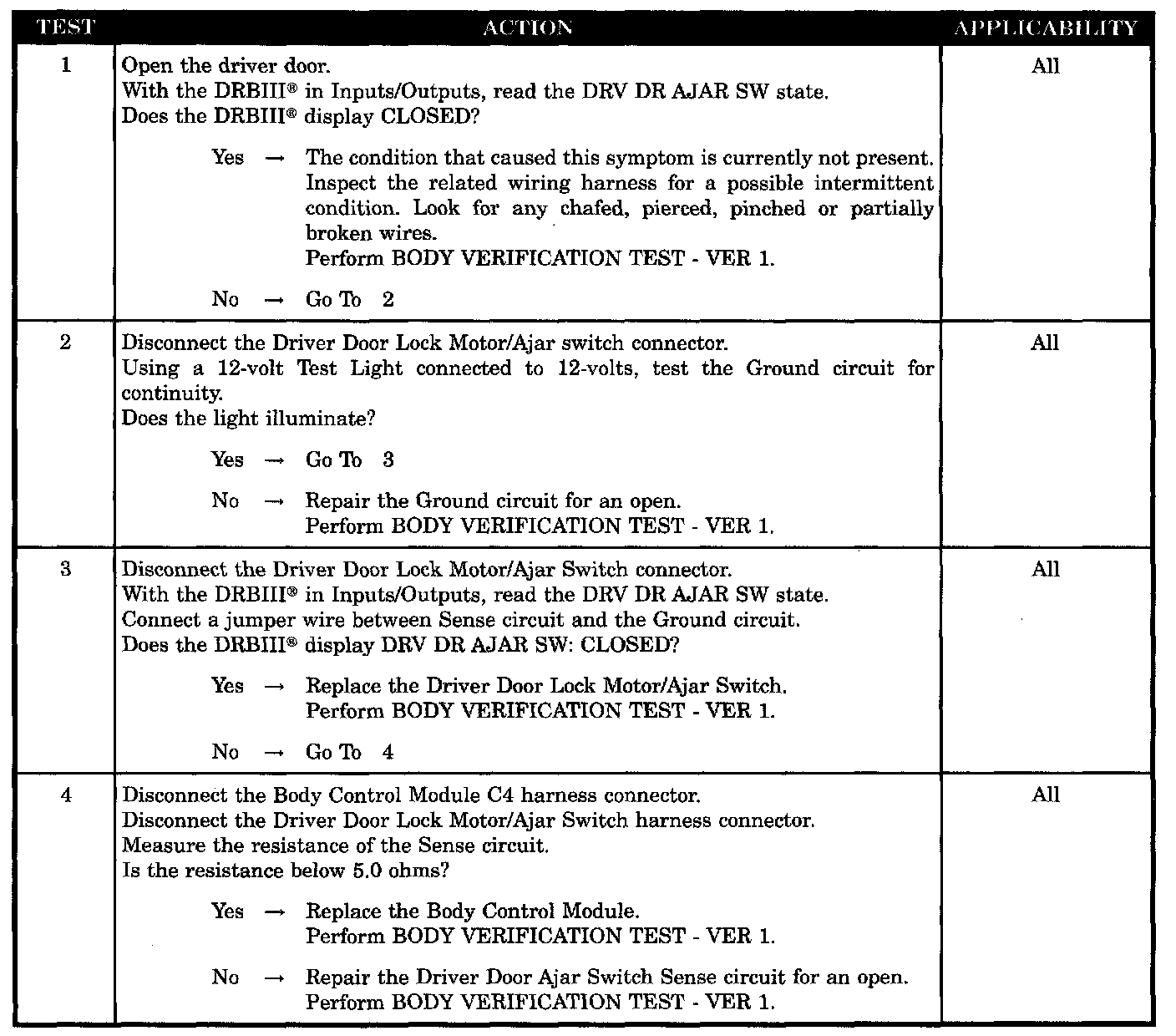

Test 1 - 4:






SYMPTOM
DRIVER DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Driver door ajar switch ground circuit open
- Intermittent condition
- Driver door lock motor/ajar switch
- Driver door ajar switch sense circuit open
- Body control module internal malfunction
